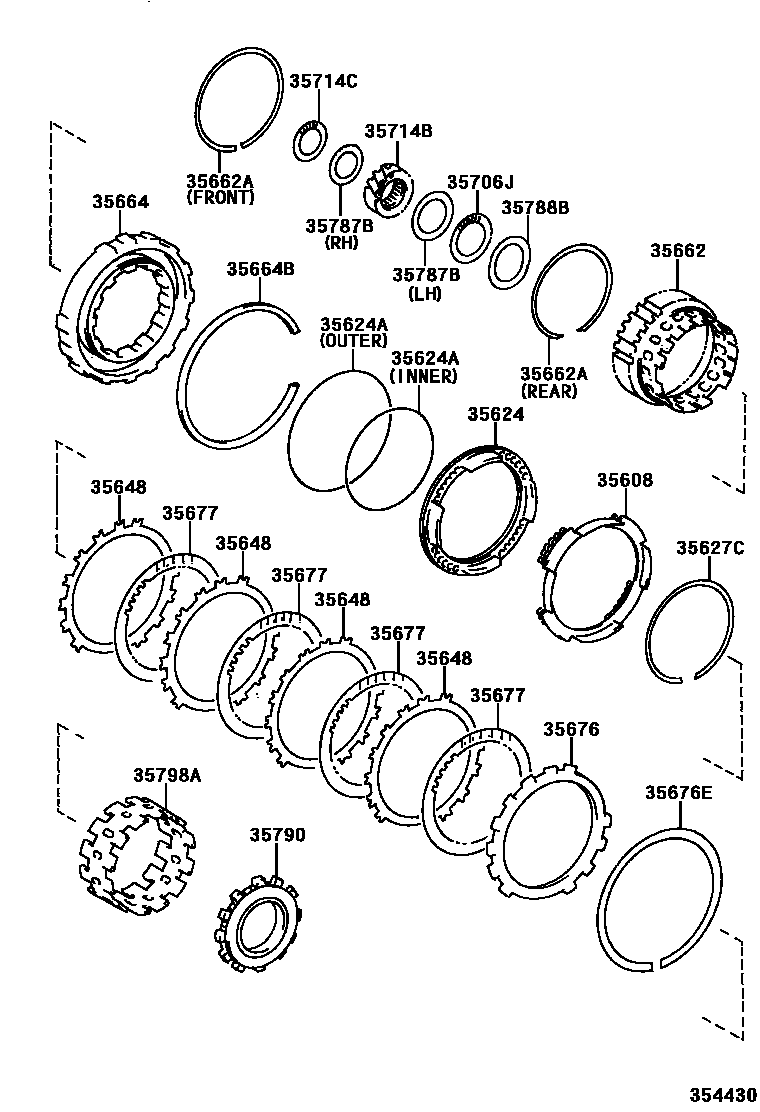

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35624PISTON, 2ND BRAKE
35624ARING, O (FOR 2ND BRAKE PISTON)
OUTER
INNER
35627CRING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEAT)
(L)
(J)
35648PLATE, CLUTCH (FOR 2ND BRAKE)
T=2.0
T=2.0
35662HUB, BRAKE
35662ARING, SNAP (FOR BRAKE HUB)
(L),REAR
(L),FRONT
(J),REAR
(J),FRONT
35664CYLINDER, 2ND BRAKE
35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)
(L)
(J)
35676FLANGE, BRAKE (FOR 2ND BRAKE)
T=3.0,MARK 1
T=3.1,MARK 2
T=3.2,MARK 3
T=3.3,MARK 4
T=3.4,MARK 5
T=3.5,MARK 6
T=3.6,MARK 7
T=3.7,MARK 8
T=2.9,MARK 0
35676ERING, HOLE SNAP (FOR 2ND BRAKE)
(L)
(J)
35677DISC, CLUTCH (FOR 2ND BRAKE)
35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)
35714BGEAR, INPUT SUN
35714CBEARING, THRUST NEEDLE ROLLER (FOR INPUT SUN GEAR)
35787BRACE, THRUST BEARING, NO.2
RH
LH
35788BRACE, THRUST BEARING, NO.3
35790CLUTCH ASSY, 1 WAY
35798ASLEEVE, 1WAY CLUTCH, OUTER
19 parts on this diagram · 1 diagram in section
