MIRROR

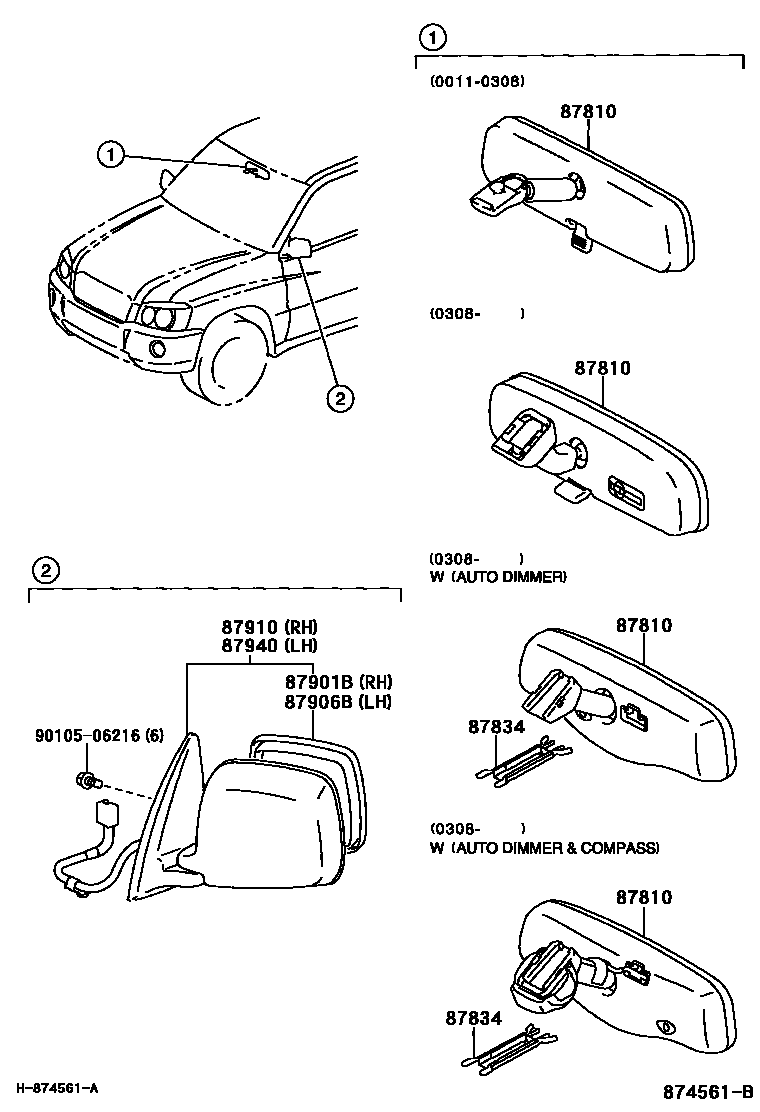

87810MIRROR ASSY, INNER REAR VIEW
W(AUTO DIMMER & COMPASS)
W(AUTO DIMMER)
W(AUTO DIMMER)
W(AUTO DIMMER & COMPASS)
W(AUTO DIMMER)
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
W(HEATER)
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
W(HEATER)
87910MIRROR ASSY, OUTER REAR VIEW, RH
SUPER WHITE 2,040
SILVER ME.,1C0
BLACK,202
RED M.M.,3N8
DK. RED M.M.,3Q3
BEIGE M.M.,4R3
CHAMPAGNE ME.,586
DARK GREEN MC.,6R4
GREEN M.M.,6T5
GRAYISH BLUE ME.,8N6
DK.BLUE M.M.,8P4
W(HEATER),SUPER WHITE 2,040
TOURING EDITION(USA/CANADA/HAWAII/P.RICO),WHITE PEARL CS.,062
W(HEATER),SILVER ME.,1C0
W(HEATER),BLACK,202
W(HEATER),RED M.M.,3N8
W(HEATER),DK. RED M.M.,3Q3
W(HEATER),BEIGE M.M.,4R3
W(HEATER),CHAMPAGNE ME.,586
W(HEATER),DARK GREEN MC.,6R4
W(HEATER MIRROR),GREEN M.M.,6T5
W(HEATER),GRAYISH BLUE ME.,8N6
W(HEATER),DK.BLUE M.M.,8P4
87940MIRROR ASSY, OUTER REAR VIEW, LH
SUPER WHITE 2,040
SILVER ME.,1C0
BLACK,202
RED M.M.,3N8
DK. RED M.M.,3Q3
BEIGE M.M.,4R3
CHAMPAGNE ME.,586
DARK GREEN MC.,6R4
GREEN M.M.,6T5
GRAYISH BLUE ME.,8N6
DK.BLUE M.M.,8P4
W(HEATER),SUPER WHITE 2,040
TOURING EDITION(USA/CANADA/HAWAII/P.RICO),WHITE PEARL CS.,062
W(HEATER),SILVER ME.,1C0
W(HEATER),BLACK,202
W(HEATER),RED M.M.,3N8
W(HEATER),DK. RED M.M.,3Q3
W(HEATER),BEIGE M.M.,4R3
W(HEATER),CHAMPAGNE ME.,586
W(HEATER),DARK GREEN MC.,6R4
W(HEATER MIRROR),GREEN M.M.,6T5
W(HEATER),GRAYISH BLUE ME.,8N6
W(HEATER),DK.BLUE M.M.,8P4
9010506216
main90105-06216
7 parts on this diagram · 1 diagram in section
