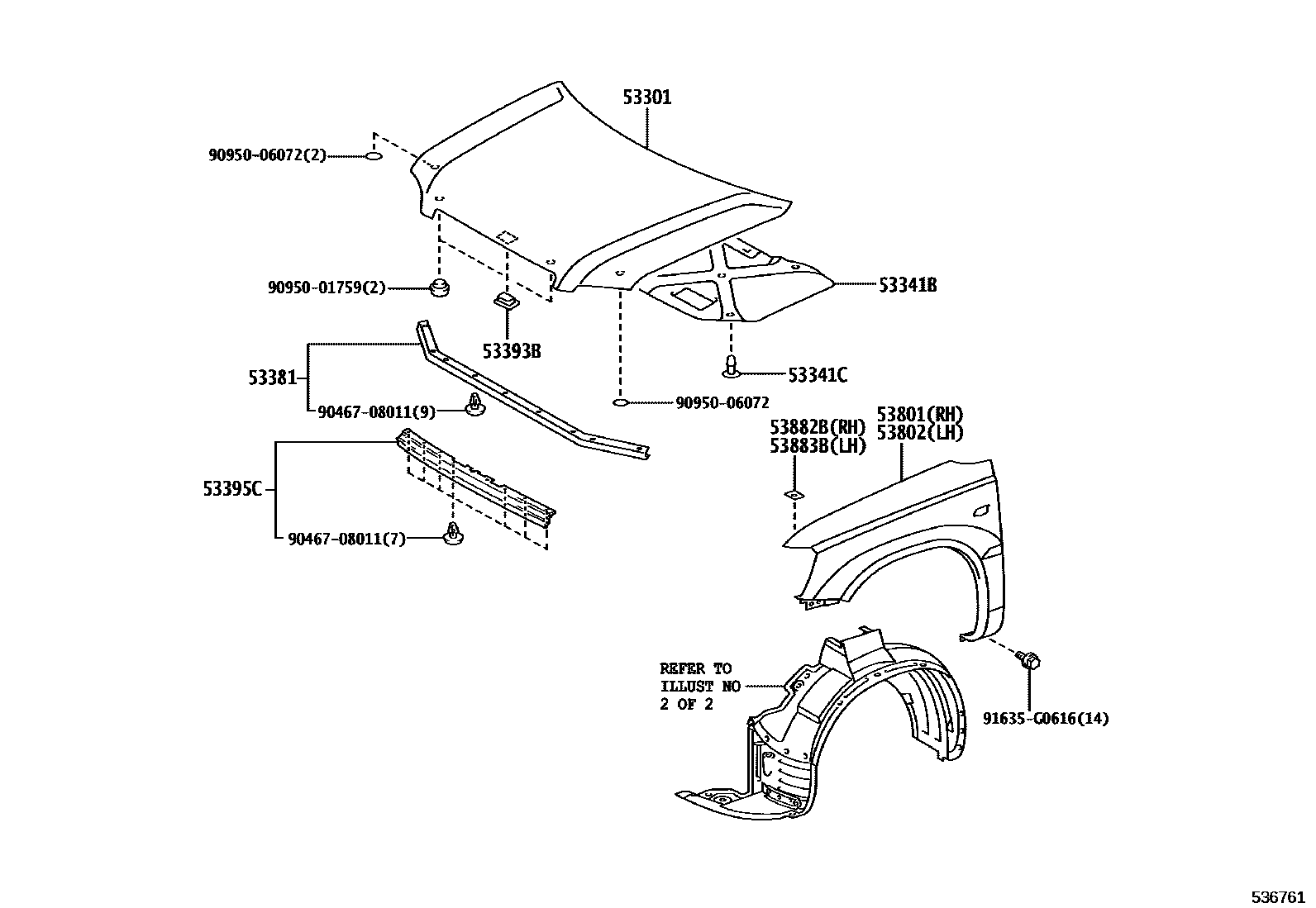

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-48040iACU2#,MCU2#200011-200308

main53301-48090iACU2#,MCU2#200308-200705

53341BINSULATOR, HOOD

main53341-48020iACU2#,MCU2#200308

53341CCLIP(FOR HOOD INSULATOR)

main90467-08124×8iACU2#,MCU2#200011-200108

main90467-09050×8iACU2#,MCU2#200108-200308

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-48020iACU2#,MCU2#200011-200308

53393BPROTECTOR, HOOD, FRONT

main53393-48020iACU2#,MCU2#200011-200308

53395CSEAL, HOOD TO RADIATOR GRILLE

main53395-48010iACU2#,MCU2#200011-200308

53801FENDER SUB-ASSY, FRONT RH

main53801-48070iACU2#,MCU2#200011-200308

W(ANTENNA HOLE)

main53801-48080iACU2#,MCU2#200308-200705

53802FENDER SUB-ASSY, FRONT LH

main53802-48070iACU2#,MCU2#200011-200308

53882BSEAL, FRONT FENDER, RH

main53882-16030×3iACU2#,MCU2#200011-200308

53883BSEAL, FRONT FENDER, LH

main53882-16030×3iACU2#,MCU2#200011-200308

9046708011

main90467-08011

9095001759

main90950-01759

9095006072

main90950-06072

91635G0616

main91635-G0616

14 parts on this diagram · 2 diagrams in section
