TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

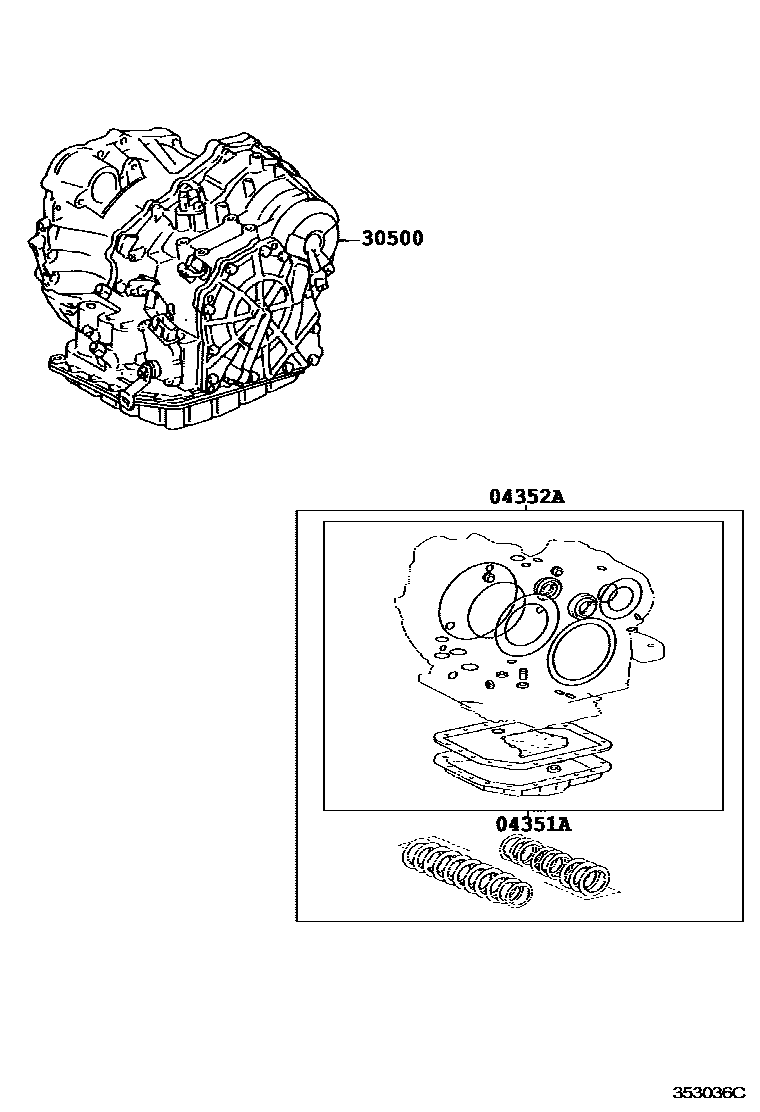

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-21150i200308-200511

main04351-21151i200511

main04351-28090i200011-200308

main04351-28110i200308-200407

main04351-42030i200011-200308

main04351-48020i200308-200407

main04351-48040i200308-200511

main04351-48041i200511

main04351-48050i200407-200511

main04351-48051i200511

main04351-48060i200609-200703

main04351-48120i200407-200609

main04351-48150i200703

04352AKIT, TRANSAXLE OVERHAUL(ATM)

main04352-21100i200308-200511

main04352-21101i200511-200608

main04352-21102i200608-200705

main04352-48010i200011-200308

main04352-48020i200011-200308

main04352-48030i200011-200308

main04352-48040i200011-200308

main04352-48060i200308-200407

main04352-48090i200308-200511

main04352-48091i200511-200705

main04352-48100i200407-200511

main04352-48101i200511-200705

main04352-48190i200407-200702

main04352-48220i200703-200705

30500TRANSAXLE ASSY, AUTOMATIC

main30500-0E010i200602-200705

U151E,TOYOTA:REFER TO ILLUSTRATION

main30500-0E020i200602-200705

U151F,TOYOTA:REFER TO ILLUSTRATION

main30500-48080i200011-200308

U140E

main30500-48100i200011-200308

U140F

main30500-48110i200011-200308

U140F

main30500-48120i200011-200308

U241E

main30500-48130i200308-200703

U151E,AISIN AW:REFER TO ILLUSTRATION

main30500-48131i200703-200705

U151E,AISIN AW:REFER TO ILLUSTRATION

main30500-48150i200308-200703

U151F,AISIN AW:REFER TO ILLUSTRATION

main30500-48151i200703-200705

U151F,AISIN AW:REFER TO ILLUSTRATION

main30500-48171i200308-200703

U140F

main30500-48172i200703-200705

U140F

main30500-48191i200308-200407

U241E

main30500-48220i200407-200612

U241E

main30500-48221i200612-200705

U241E

3 parts on this diagram · 2 diagrams in section
