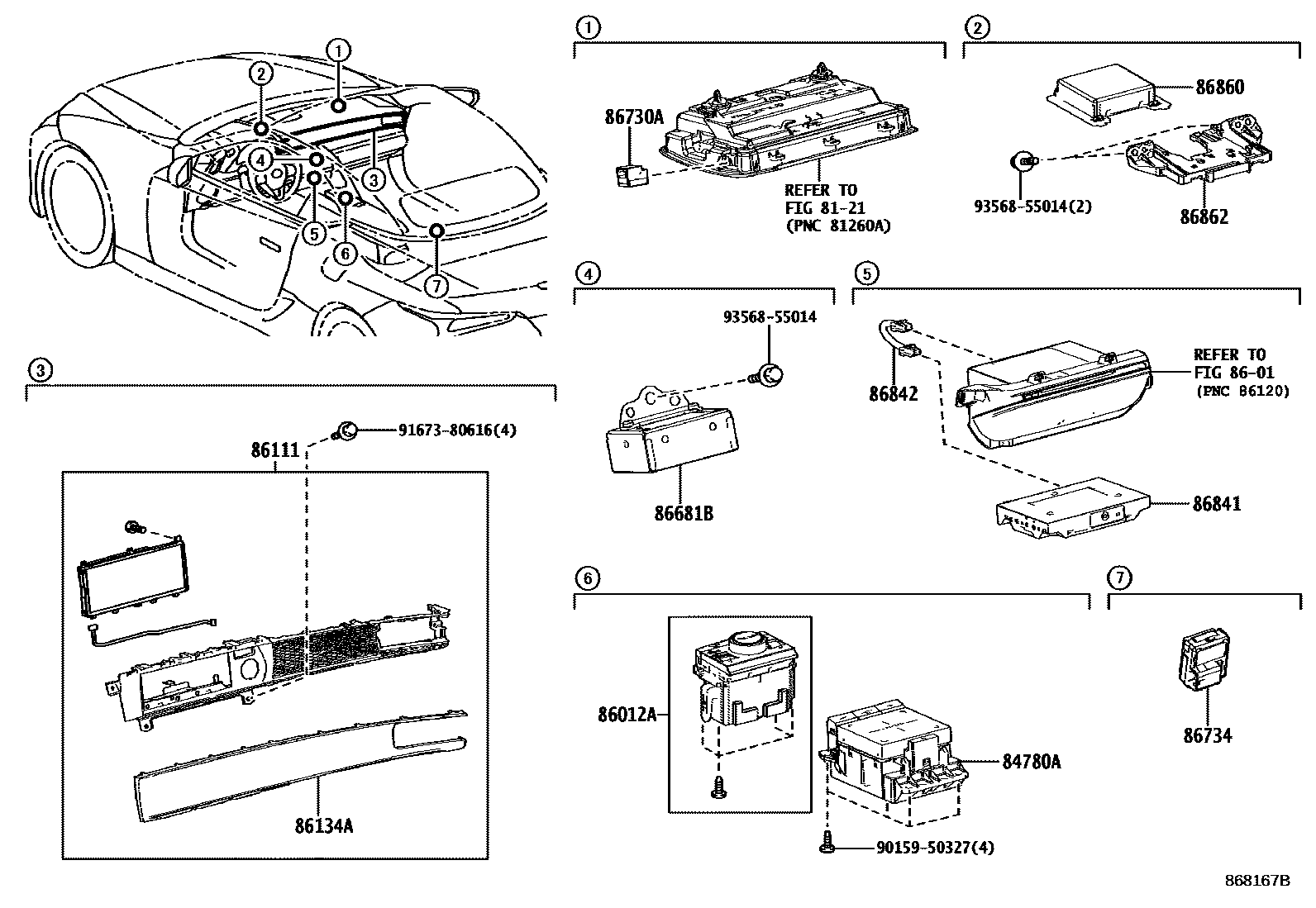

NAVIGATION & FRONT MONITOR DISPLAY

8121INTERIOR LAMP

→ Go to FIG 81-21

84780ACONTROLLER ASSY, REMOTE OPERATION

main84780-11011iURZ100202007-202111

main84780-11170iURZ100202111

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86012APARTS SET, RADIO SETTING

main86011-11030iURZ100202007

86111MULTI-DISPLAY

main86111-11022iURZ100202007

DENSO

86134APARTS, MULTI-DISPLAY

main86134-11010iURZ100202007

86681BDIVIDER, ANTENNA

main86681-11010iURZ100202007

86730AMICROPHONE ASSY, TELEPHONE

main86250-12020iURZ100202007

86734MICROPHONE, ACTIVE NOISE CONTROL

main86734-11030iURZ100202007

86841COMPUTER, NAVIGATION

main86840-48162iURZ100202007-202101

main86840-48163iURZ100202102-202106

main86840-48164iURZ100202107-202201

main86840-48165iURZ100202202-202206

main86840-48166iURZ100202207-202301

main86840-48167iURZ100202302

86842WIRE, NAVIGATION, NO.1

main86842-11010iURZ100202007

86860ANTENNA ASSY, NAVIGATION

main86860-78010supersedes 86880-52020iURZ100202007-202210

USA POSSESSIONS SPEC(GUAM)

main86880-52020iURZ100202007-202305

KOREA SPEC

86862BRACKET, NAVIGATION ANTENNA

main86862-58020iURZ100202007

9015950327

main90159-50327

9167380616

main91673-80616

9356855014

main93568-55014

16 parts on this diagram · 1 diagram in section
