ARMREST & VISOR

74310VISOR ASSY, RH

main74310-11150-A3supersedes 74310-11130-A3iURZ100202007

KOREA SPEC,WHITE,TRIM0#

main74310-11150-C2supersedes 74310-11130-C2iURZ100202007

KOREA SPEC,BLACK,TRIM2#,3#

main74310-11150-E3supersedes 74310-11130-E3iURZ100202007

KOREA SPEC,OCHER,TRIM4#

74317COVER, VISOR BRACKET, RH

main74317-11010-A2iURZ100202007

WHITE,TRIM0#

main74317-11010-C0iURZ100202007

BLACK,TRIM2#,3#

main74317-11010-E1iURZ100202007

OCHER,TRIM4#

74318COVER, VISOR BRACKET, LH

main74317-11010-A2iURZ100202007

WHITE,TRIM0#

main74317-11010-C0iURZ100202007

BLACK,TRIM2#,3#

main74317-11010-E1iURZ100202007

OCHER,TRIM4#

74320VISOR ASSY, LH

main74320-11110-A3supersedes 74320-11090-A3iURZ100202007

KOREA SPEC,WHITE,TRIM0#

main74320-11110-C2supersedes 74320-11090-C2iURZ100202007

KOREA SPEC,BLACK,TRIM2#,3#

main74320-11110-E3supersedes 74320-11090-E3iURZ100202007

KOREA SPEC,OCHER,TRIM4#

74348BHOLDER, VISOR, RH

main74348-47010-A1iURZ100202007

L WHITE,TRIM0#

main74348-47010-C0iURZ100202007

BLACK,TRIM2#,3#

main74348-47010-E3iURZ100202007

OCHER,TRIM4#

74348CHOLDER, VISOR, LH

main74348-47010-A1iURZ100202007

L WHITE,TRIM0#

main74348-47010-C0iURZ100202007

BLACK,TRIM2#,3#

main74348-47010-E3iURZ100202007

OCHER,TRIM4#

8121INTERIOR LAMP

→ Go to FIG 81-21

9322915020

main93229-15020

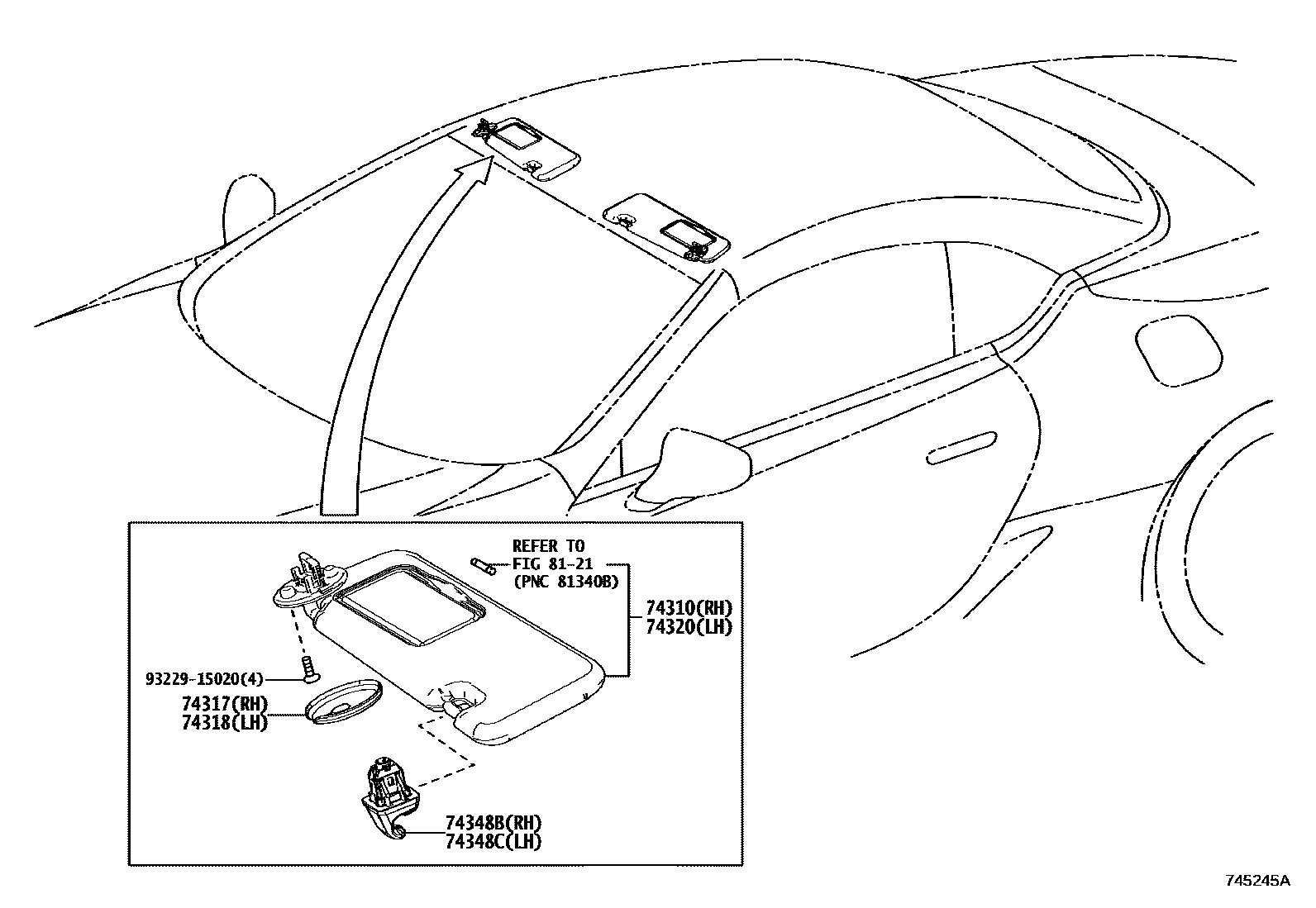

8 parts on this diagram · 1 diagram in section
