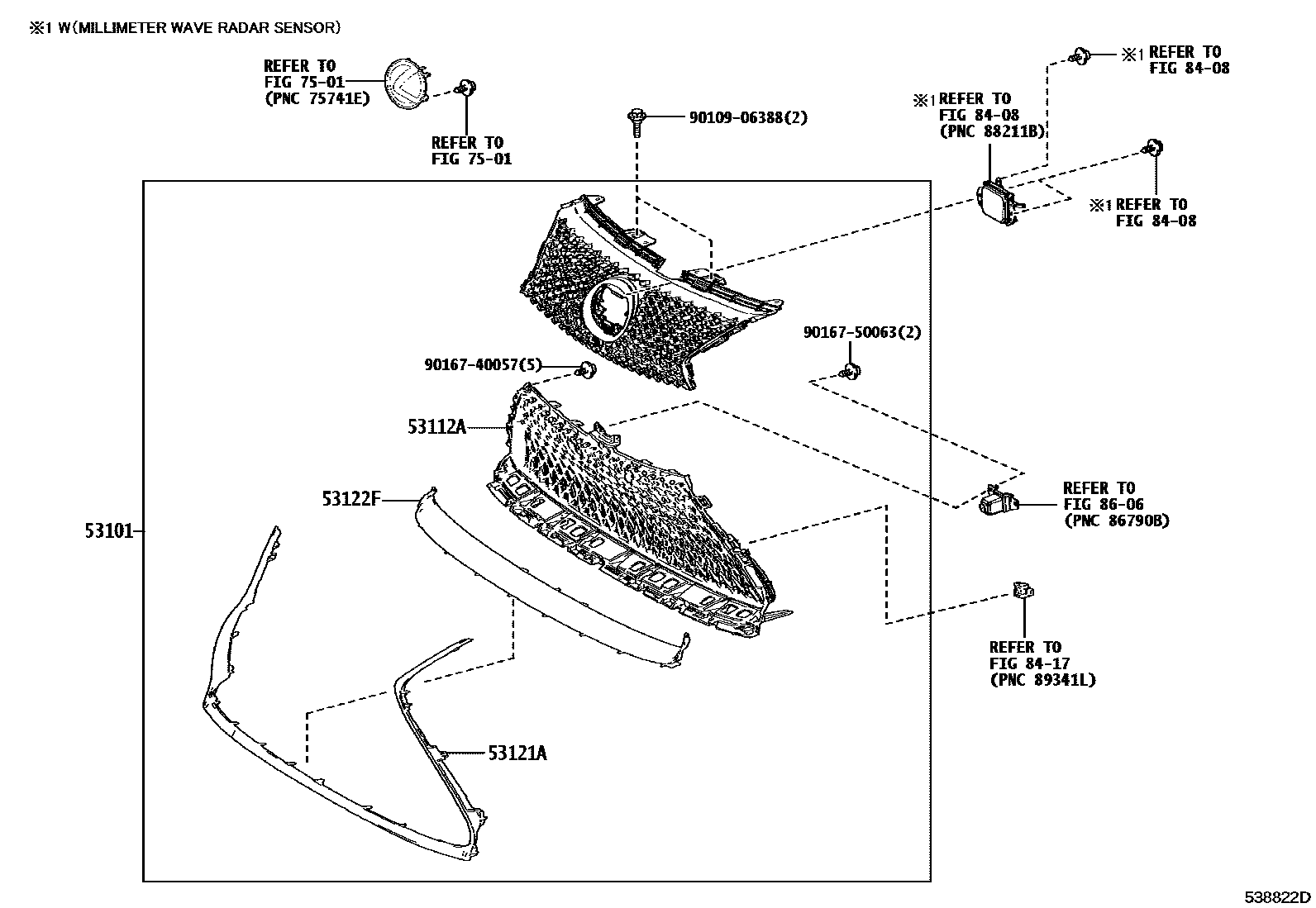

RADIATOR GRILLE

53101GRILLE SUB-ASSY, RADIATOR

main53101-11900supersedes 53101-11903iURZ100202309-202409

NO PAINT REQ., IE 24MY&HEADLAMP- LED & WITH(*AHB) & BLACK

53112AGRILLE, RADIATOR, LOWER

main53112-11909supersedes 53112-11912iGWZ100202305-202507

PERSONAL PACKAGE&HEADLAMP- LED & WITH(*AHB) & BLACK

53121AMOULDING, RADIATOR GRILLE

main53121-11030supersedes 53121-11010iURZ100202309-202409

IE 24MY&HEADLAMP- LED & WITH(*AHB) & BLACK

53122FMOULDING, RADIATOR GRILLE, NO.2

main53122-11030supersedes 53122-11010iURZ100202309-202409

IE 24MY&HEADLAMP- LED & WITH(*AHB) & BLACK

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

9010906388

main90109-06388

9016740057

main90167-40057

9016750063

main90167-50063

11 parts on this diagram · 1 diagram in section
