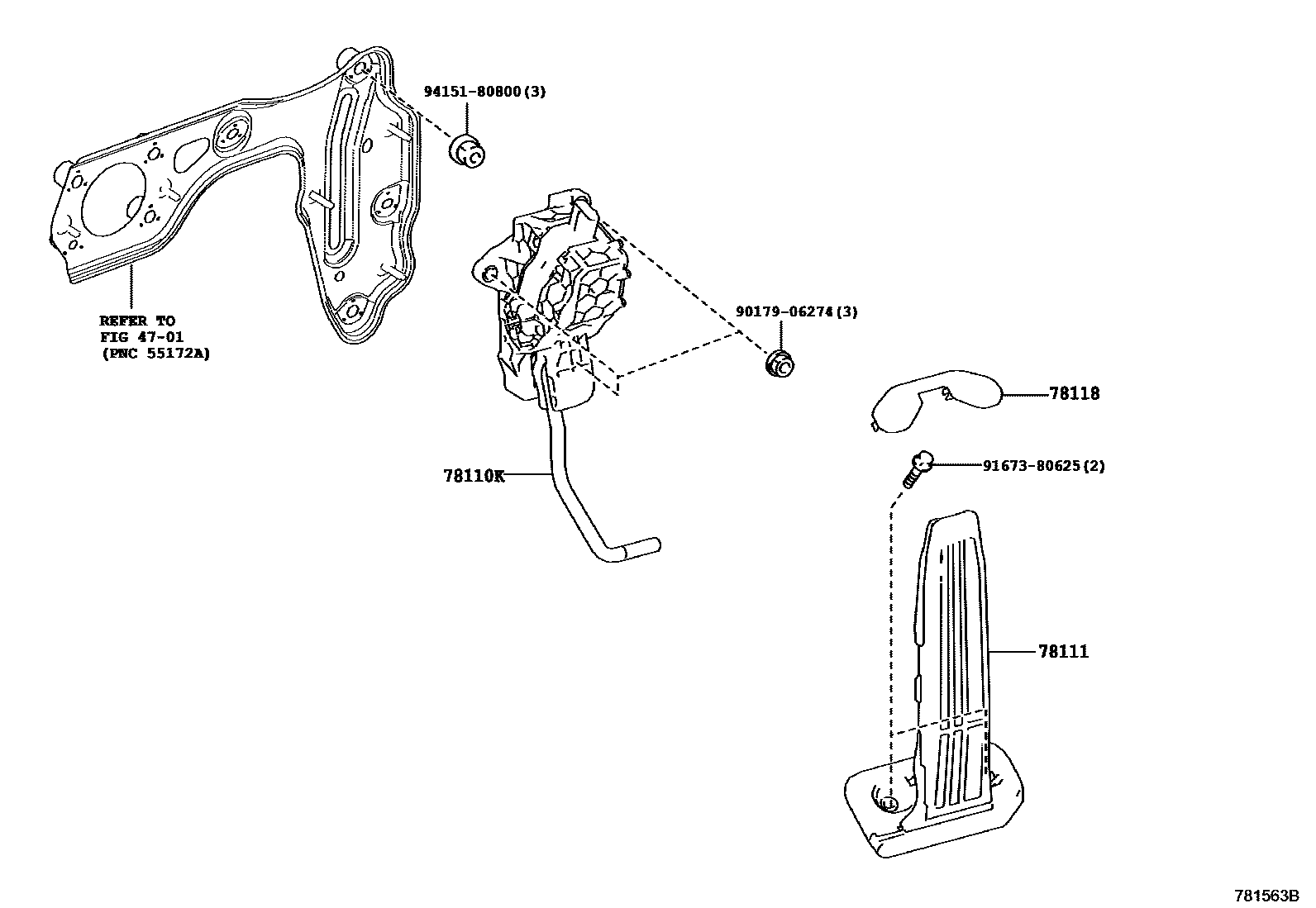

ACCELERATOR LINK

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-11010iGWZ100,URZ100201701-201803

main78110-11030iGWZ100,URZ100201804-202009

main78110-11031iGWZ100,URZ100202010

78111PEDAL, ACCELERATOR

main78101-11010iGWZ100,URZ100201701

78118PAD, ACCELERATOR PEDAL

main78117-11010iGWZ100,URZ100201701

9017906274

main90179-06274

9167380625

main91673-80625

9415180800

main94151-80800

7 parts on this diagram · 1 diagram in section
