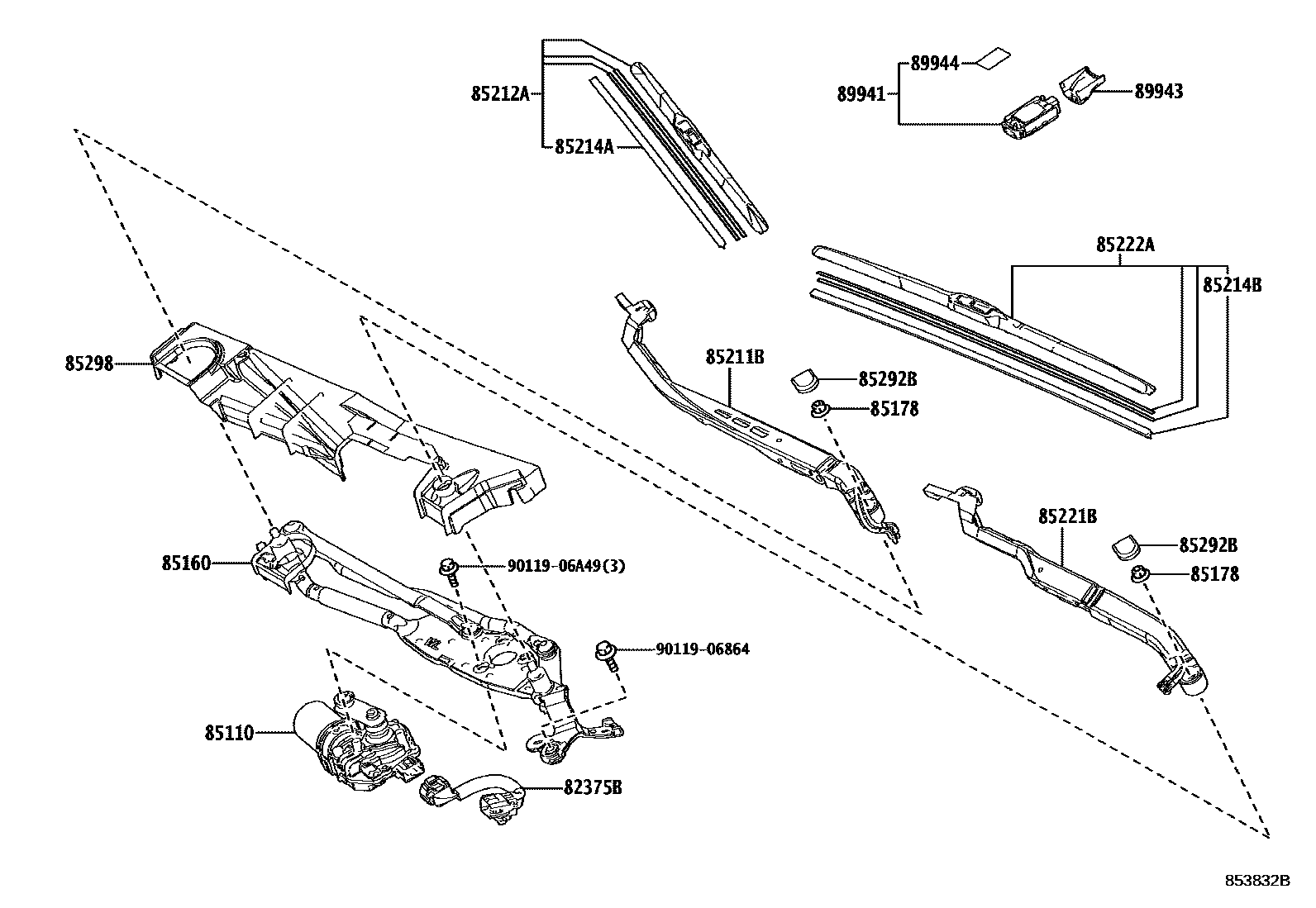

WINDSHIELD WIPER

0001 1 0002 1

82375BWIRE, WIPER MOTOR

main82375-50030iGVF5#,VXFA5#201710-202010

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-50170iGVF5#,VXFA5#201710-202007

main85110-50171iGVF5#,VXFA5#202008-202010

main85110-50190iGVF55,VXFA5#202310

85160LINK ASSY, WINDSHIELD WIPER

main85150-50220iGVF5#,VXFA5#201710-202010

main85150-50221iGVF50202010-202310

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iGVF5#,VXFA5#201710-202010

85211BARM, FRONT WIPER, RH

main85211-50200iGVF50202010-202310

85212ABLADE, FR WIPER, RH

main85212-50140iGVF5#,VXFA5#201710-202010

85214ARUBBER, WIPER, RH

main85214-60120iGVF5#,VXFA5#201710-202010

85214BRUBBER, WIPER, LH

main85214-11010iGVF5#,VXFA5#201710-202010

85221BARM, FRONT WIPER, LH

main85221-50180iGVF5#,VXFA5#201710-202004

main85221-50210iGVF50202012-202310

85222ABLADE, FR WIPER, LH

main85222-50100iGVF5#,VXFA5#202004-202010

main85222-50110iGVF5#,VXFA5#201710-202004

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iGVF50202010-202310

85298COVER, WIPER MOTOR

main85111-50080iGVF5#,VXFA5#201710-202010

89941SENSOR, RAIN

main89941-11010iGVF5#201710-202010

main89941-33060iVXFA5#201712-202010

main89941-50100supersedes 89941-50120iGVF5#202010-202310

main89941-50110iVXFA5#202310

89943COVER, RAIN SENSOR

main89943-11010iGVF50202010-202310

89944TAPE, RAIN SENSOR

main89944-42020iGVF5#,VXFA5#201810-202010

main89944-48010iGVF5#,VXFA5#201710-201809

9011906864

main90119-06864

9011906A49

main90119-06A49

17 parts on this diagram · 2 diagrams in section
