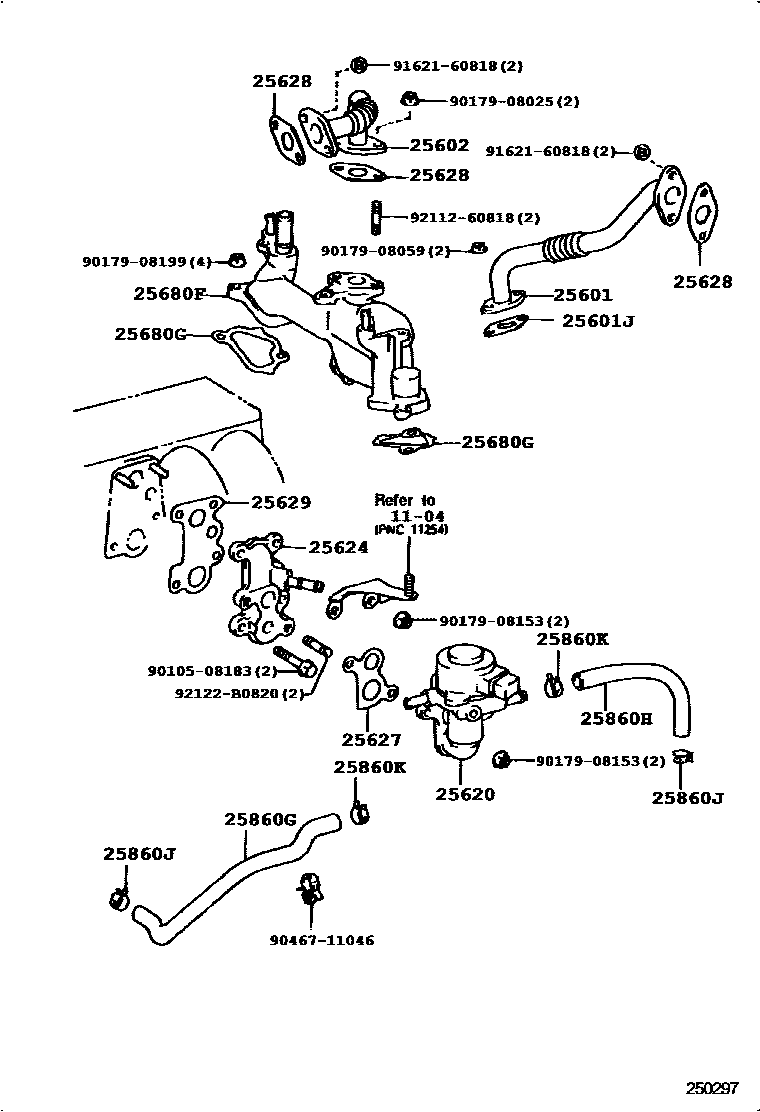

EXHAUST GAS RECIRCULATION SYSTEM

1104CYLINDER HEAD

→ Go to FIG 11-04

25601PIPE SUB-ASSY, EGR, NO.1

main25601-50060i1UZFE..UCF20..4FC199410

25601JGASKET(FOR EGR PIPE, NO.1)

main25634-50010i1UZFE..UCF20..4FC199410

25602PIPE SUB-ASSY, EGR, NO.2

main25602-50010i1UZFE..UCF20..4FC199410

25620VALVE ASSY, EGR

main25620-50030i1UZFE..UCF20..4FC199410

25624ADAPTER, EGR VALVE

main25624-50021i1UZFE..UCF20..4FC199410

25627GASKET, EGR VALVE

main25627-50010i1UZFE..UCF20..4FC199410

25628GASKET, EGR INLET

main25628-50010×3i1UZFE..UCF20..4FC199410

25629GASKET, EGR VALVE ADAPTER

main25629-50010i1UZFE..UCF20..4FC199410

25680FCOOLER SUB-ASSY, EGR

main25608-50010i1UZFE..UCF20..4FC199410

25680GGASKET, WATER OUTLET

main16341-50010×2i1UZFE..UCF20..4FC199410

25860GHOSE, WATER BY-PASS HOSE NO.1(FOR EGR COOLER)

main16297-50010i1UZFE..UCF20..4FC199410

25860HHOSE, WATER BY-PASS HOSE NO.2(FOR EGR COOLER)

main16267-50030i1UZFE..UCF20..4FC199410

25860JHOSE, CLIP NO.1(FOR EGR COOLER)

main90467-13059×2i1UZFE..UCF20..4FC199410

25860KHOSE, CLIP NO.2(FOR EGR COOLER)

main90467-15022×2i1UZFE..UCF20199410-199412

main90467-16037×2i1UZFE..UCF20..4FC199412

9010508183

main90105-08183

9017908025

main90179-08025

9017908059

main90179-08059

9017908153

main90179-08153

9017908199

main90179-08199

9046711046

main90467-11046

9162160818

main91621-60818

9211260818

main92112-60818

92122B0820

main92122-B0820

24 parts on this diagram · 1 diagram in section
