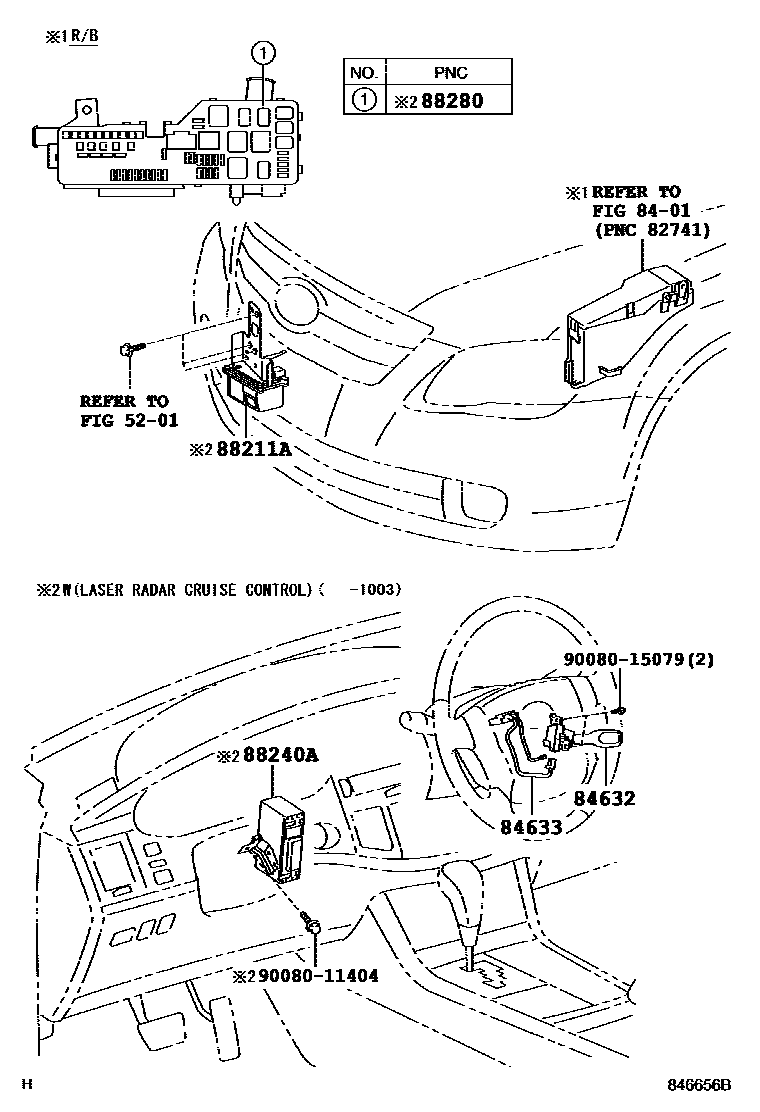

CRUISE CONTROL (AUTO DRIVE)

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

84632SWITCH, CRUISE CONTROL MAIN

main84632-08021iGSX30200707-201003

main84632-08011iGSX30..LIMD200707-201003

CRUISE CONTROL-LASER RADAR CRUISE

84633WIRE, CRUISE CONTROL SWITCH

main84633-0E020iGSX30200707-201003

main84633-0E010iGSX30..LIMD200707-201003

CRUISE CONTROL-LASER RADAR CRUISE

88211ASENSOR, LASER RADAR

main88210-41010iGSX30..LIMD200501-200707

CRUISE CONTROL-LASER RADAR CRUISE

main88210-41030iGSX30..LIMD200707-201003

CRUISE CONTROL-LASER RADAR CRUISE

88240ACOMPUTER ASSY, DISTANCE CONTROL

main88240-41030iGSX30..LIMD200501-200707

CRUISE CONTROL-LASER RADAR CRUISE

main88240-41040iGSX30..LIMD200707-201003

CRUISE CONTROL-LASER RADAR CRUISE

88280RELAY ASSY, CRUISE CONTROL(AUTO DRIVE), B

main90084-98032iGSX30..LIMD200501-200707

CRUISE CONTROL-LASER RADAR CRUISE

9008011404

main90080-11404

9008015079

main90080-15079

9 parts on this diagram · 1 diagram in section
