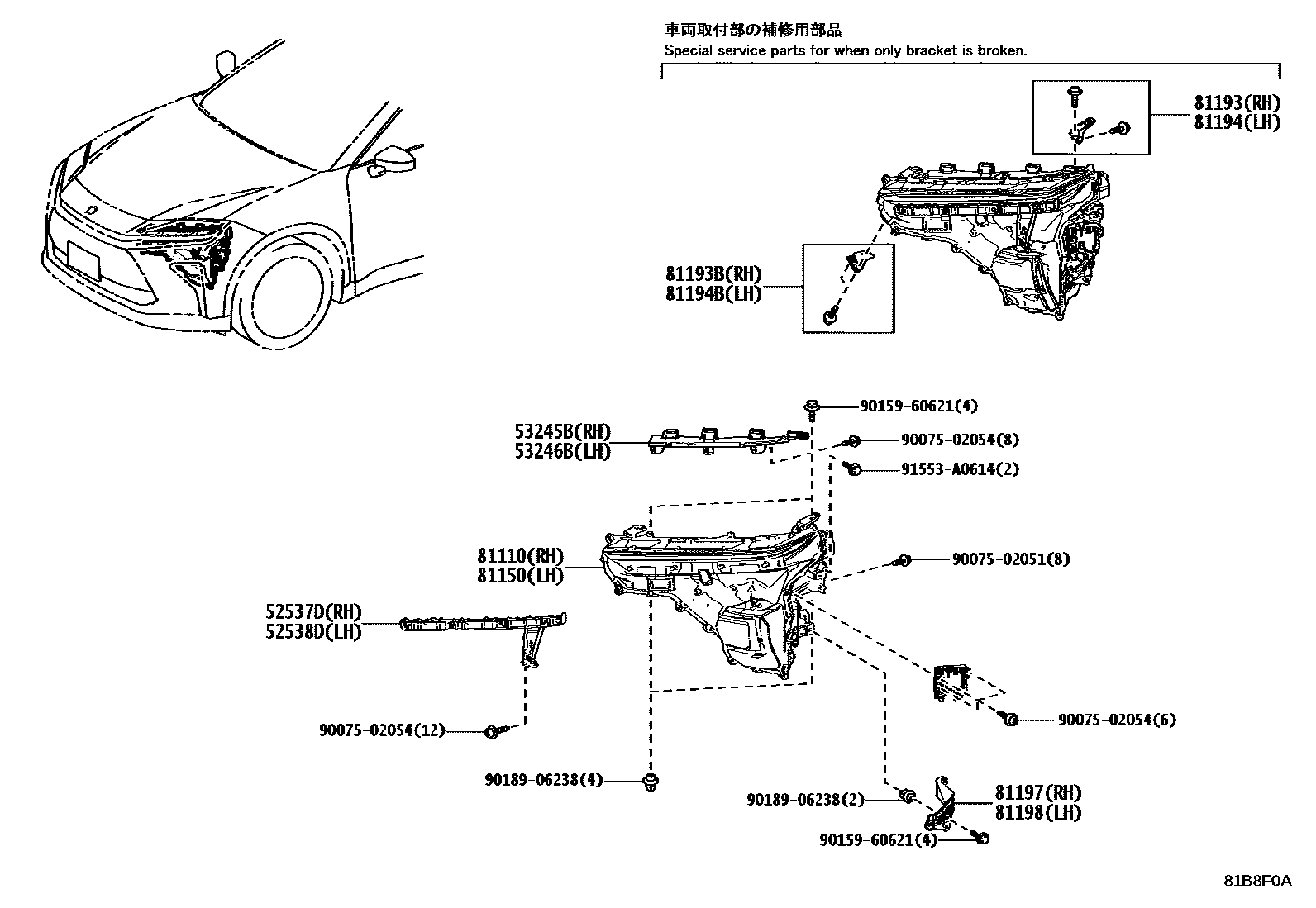

HEADLAMP

0001 1 0002 1

52537DRETAINER, FRONT BUMPER END, RH

main52537-30100iAZSH38202406

52538DRETAINER, FRONT BUMPER END, LH

main52538-30100iAZSH38202406

53245BBRACKET, HEADLAMP, RH

main53245-30060iAZSH38202406

53246BBRACKET, HEADLAMP, LH

main53246-30050iAZSH38..M202406

81110HEADLAMP ASSY, RH

main81140-30R60iAZSH38..M202406

main81145-30R70iAZSH38..G202406

81150HEADLAMP ASSY, LH

main81070-30R60iAZSH38..M202406

main81185-30R70iAZSH38..G202406

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-30220iAZSH38202406

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-30230iAZSH38202406

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-30220iAZSH38202406

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-30230iAZSH38202406

81197BRACKET, HEADLAMP, LOWER RH

main81197-30100iAZSH38202406

81198BRACKET, HEADLAMP, LWR LH

main81198-30100iAZSH38202406

9007502051

main90075-02051

9007502054

main90075-02054

9015960621

main90159-60621

9018906238

main90189-06238

91553A0614

main91553-A0614

17 parts on this diagram · 2 diagrams in section
