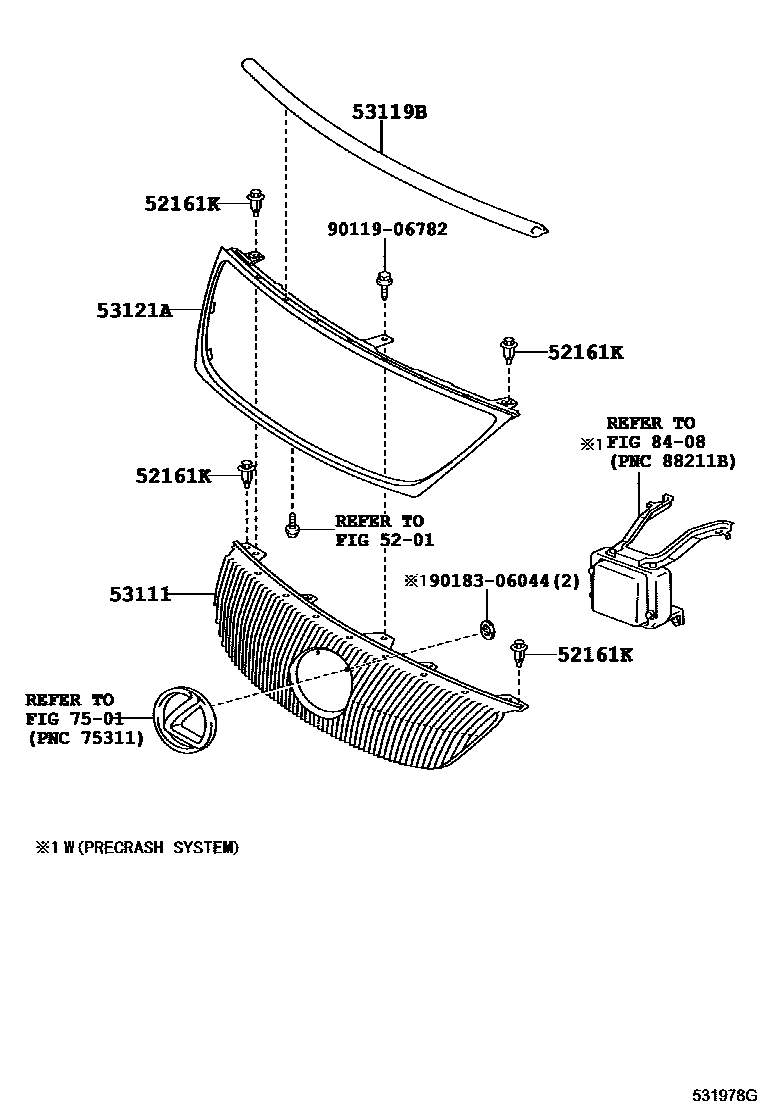

RADIATOR GRILLE

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

52161KPIECE, FRONT BUMPER

main52161-16010×4iGRS19#,UZS190200501-200709

53111GRILLE, RADIATOR

main53111-30A30supersedes 53111-30870iGRS19#,UZS190200501-200709

NO PAINT REQ.,PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE

main53111-30C50supersedes 53111-30C41iGRS19#,URS190200709-200908

NO PAINT REQ.,PRE-COLLISION SYSTEM-MILLI-WAVE RADAR TYPE

main53111-30C51supersedes 53111-30C41iGRS19#,URS190200909-201112

NO PAINT REQ.,PRE-COLLISION SYSTEM-*MRT & *PSB & *PBA

main53111-30D70iGRS191201007-201108

NO PAINT REQ.,KOREA SPEC&ART WORKS

53119BPROTECTOR, RADIATOR GRILLE

main53119-30210iGRS19#,UZS190200501-200709

53121AMOULDING, RADIATOR GRILLE

main52711-30231iGRS19#,UZS190200501-200709

main52711-30250iGRS19#,URS190200709-201112

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9011906782

main90119-06782

9018306044

main90183-06044

9 parts on this diagram · 2 diagrams in section
