ENGINE OIL COOLER

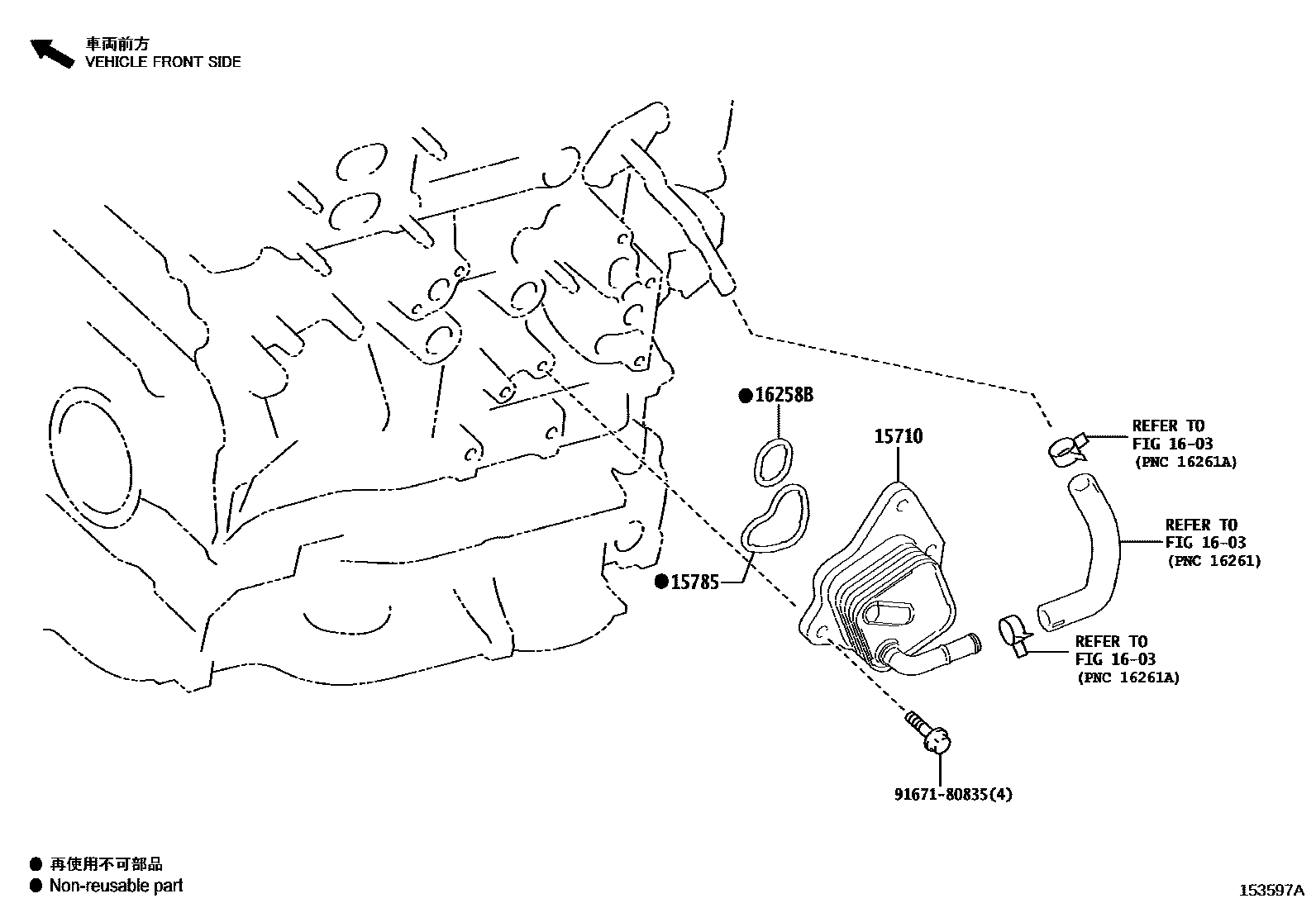

Parts diagram

15710COOLER ASSY, OIL

main15710-25040i202301

15785GASKET, OIL COOLER

main15785-25020i202301

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16258BGASKET, OIL COOLER PIPE

main16258-25020i202301

9167180835

main91671-80835

5 parts on this diagram · 1 diagram in section
