EPC Data

ARMREST & VISOR

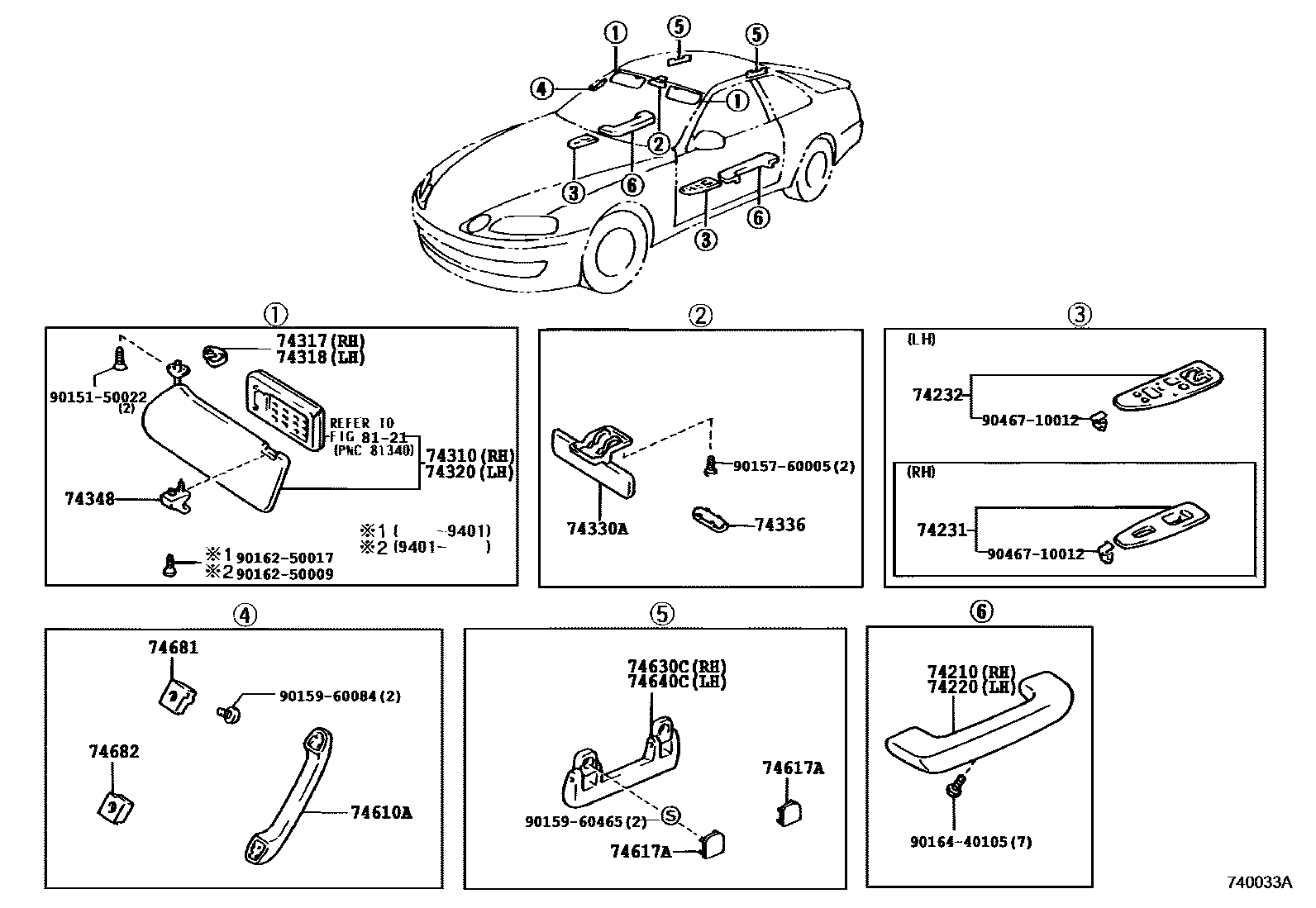

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-24071-A0i199108
IVORY,TRIM0#
main74210-24071-B0i199108-199401
MEDIUM GRAY,TRIM1#
main74210-24090-03i199104-199108
MEDIUM GRAY,TRIM1#
main74210-24090-07i199104-199108
SPRUCE,TRIM6#
main74210-24090-08i199104-199108
IVORY,TRIM0#
main74210-24091-A0i199108-199211
IVORY,TRIM0#; W(LEATHER SEAT),IVORY,TRIM0#
main74210-24091-A1i199211-199608
IVORY,TRIM0#; W(LEATHER SEAT),IVORY,TRIM0#
main74210-24091-B0i199108-199211
MEDIUM GRAY,TRIM1#; W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main74210-24091-B1i199211-199401
MEDIUM GRAY,TRIM1#; W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main74210-24091-C0i199401-199608
BLACK,TRIM2#
main74210-24091-G0i199111-199211
W(LEATHER SEAT),SPRUCE,TRIM6#
main74210-24091-G1i199211-199608
SPRUCE,TRIM6#
main74210-24092-A2i199608-199808
IVORY,TRIM07,08; W(LEATHER SEAT),IVORY,TRIM07,08
main74210-24092-C1i199608-199808
BLACK,TRIM2#
main74210-24093-A3i199808
LEATHER,IVORY,TRIM0#
main74210-24093-C2i199808
BLACK,TRIM2#
74220ARMREST ASSY, FRONT, LH
main74220-24071-A0i199108
IVORY,TRIM0#
main74220-24071-B0i199108-199401
MEDIUM GRAY,TRIM1#
main74220-24090-03i199104-199108
MEDIUM GRAY,TRIM1#
main74220-24090-07i199104-199108
SPRUCE,TRIM6#
main74220-24090-08i199104-199108
IVORY,TRIM0#
main74220-24091-A0i199108-199211
IVORY,TRIM0#; W(LEATHER SEAT),IVORY,TRIM0#
main74220-24091-A1i199211-199608
IVORY,TRIM0#; W(LEATHER SEAT),IVORY,TRIM0#
main74220-24091-B0i199108-199211
MEDIUM GRAY,TRIM1#; W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main74220-24091-B1i199211-199401
MEDIUM GRAY,TRIM1#; W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main74220-24091-C0i199401-199608
BLACK,TRIM2#
main74220-24091-G0i199111-199211
W(LEATHER SEAT),SPRUCE,TRIM6#
main74220-24091-G1i199211-199608
SPRUCE,TRIM6#
main74220-24092-A2i199608-199808
IVORY,TRIM07,08
main74220-24092-C1i199608-199808
BLACK,TRIM2#
main74220-24093-A3i199808
LEATHER,IVORY,TRIM0#
main74220-24093-C2i199808
BLACK,TRIM2#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-24040-03i199104-199401
MEDIUM GRAY,TRIM1#
main74231-24040-07i199104-199401
SPRUCE,TRIM6#
main74231-24040-08i199104-199401
IVORY,TRIM0#
main74231-24040-A0i199808
IVORY,TRIM0#
main74231-24040-A2i199608-199808
IVORY,TRIM0#,07,08; IVORY,TRIM07,08
main74231-24040-C0i199401
BLACK,TRIM2#
main74231-24040-G0i199401-199608
LI. SPRUCE,TRIM6#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-24050-03i199104-199401
MEDIUM GRAY,TRIM1#
main74232-24050-07i199104-199401
SPRUCE,TRIM6#
main74232-24050-08i199104-199401
IVORY,TRIM0#
main74232-24050-A0i199808
IVORY,TRIM0#
main74232-24050-A2i199608-199808
IVORY,TRIM0#,07,08; IVORY,TRIM07,08
main74232-24050-C0i199401
BLACK,TRIM2#
main74232-24050-G0i199401-199608
LI. SPRUCE,TRIM6#
74310VISOR ASSY, RH
main74310-24120-03i199104-199209
MEDIUM GRAY,TRIM1#
main74310-24120-07i199104-199209
SPRUCE,TRIM6#
main74310-24120-08i199104-199209
IVORY,TRIM0#
main74310-24121-A0i199209-199308
IVORY,TRIM0#
main74310-24121-B0i199209-199308
MEDIUM GRAY,TRIM1#
main74310-24121-G0i199209-199308
SPRUCE,TRIM6#
main74310-24122-A0i199308-199408
IVORY,TRIM0#
main74310-24122-B0i199308-199401
MEDIUM GRAY,TRIM1#
main74310-24122-B1i199401-199408
MD. GRAY,TRIM2#
main74310-24122-G0i199308-199408
SPRUCE,TRIM6#
main74310-24123-A0i199408-199608
IVORY,TRIM0#
main74310-24123-B1i199408-199608
MEDIUM GRAY,TRIM2#
main74310-24123-G0i199408-199608
SPRUCE,TRIM6#
main74310-24124-A0i199702-199709
IVORY,TRIM07,08
main74310-24124-B1i199702-199709
MEDIUM GRAY,TRIM2#
main74310-24130-03i199104-199209
W(MOON ROOF),MEDIUM GRAY,TRIM1#
main74310-24130-07i199104-199209
W(MOON ROOF),SPRUCE,TRIM6#
main74310-24130-08i199104-199209
W(MOON ROOF),IVORY,TRIM0#
main74310-24131-A0i199209-199308
W(MOON ROOF),IVORY,TRIM0#
main74310-24131-B0i199209-199308
W(MOON ROOF),MEDIUM GRAY,TRIM1#
main74310-24131-G0i199209-199308
W(MOON ROOF),SPRUCE,TRIM6#
main74310-24132-A0i199308-199408
W(MOON ROOF),IVORY,TRIM0#
main74310-24132-B0i199308-199401
W(MOON ROOF),MEDIUM GRAY,TRIM1#
main74310-24132-B1i199401-199408
W(MOON ROOF),MD. GRAY,TRIM2#
main74310-24132-G0i199308-199408
W(MOON ROOF),SPRUCE,TRIM6#
main74310-24133-A0i199408-199608
W(MOON ROOF),IVORY,TRIM0#
main74310-24133-B1i199408-199608
W(MOON ROOF),MEDIUM GRAY,TRIM2#
main74310-24133-G0i199408-199608
W(MOON ROOF),SPRUCE,TRIM6#
main74310-24134-A0i199608-199702
W(MOON ROOF),IVORY,TRIM07,08
main74310-24134-B1i199608-199702
W(MOON ROOF),MEDIUM GRAY,TRIM2#
main74310-24170-A0i199702-199709
IVORY,TRIM0#,07,08; IVORY,TRIM07,08
main74310-24170-B0i199702-199709
MEDIUM GRAY,TRIM2#
main74310-24171-A0i199709-199808
IVORY,TRIM0#,07,08; IVORY,TRIM07,08
main74310-24171-A1i199808-199908
IVORY,TRIM0#
main74310-24171-B0i199709-199808
MEDIUM GRAY,TRIM2#
main74310-24171-B1i199808-199908
MEDIUM GRAY,TRIM2#
main74310-24172-A1i199908-200007
IVORY,TRIM0#
main74310-24172-B1i199908-200007
MEDIUM GRAY,TRIM2#
main74310-24180-A0i199702-199709
W(MOON ROOF),IVORY,TRIM0#,07,08; W(MOON ROOF),IVORY,TRIM07,08
main74310-24180-B0i199702-199709
W(MOON ROOF),MEDIUM GRAY,TRIM2#
main74310-24181-A0i199709-199808
W(MOON ROOF),IVORY,TRIM0#,07,08; W(MOON ROOF),IVORY,TRIM07,08
main74310-24181-A1i199808-199908
W(MOON ROOF),IVORY,TRIM0#
main74310-24181-B0i199709-199808
W(MOON ROOF),MEDIUM GRAY,TRIM2#
main74310-24181-B1i199808-199908
W(MOON ROOF),MEDIUM GRAY,TRIM2#
main74310-24182-A1i199908-200007
W(MOON ROOF),IVORY,TRIM0#
main74310-24182-B1i199908-200007
W(MOON ROOF),MEDIUM GRAY,TRIM2#
74317COVER, VISOR BRACKET, RH
main74317-22010-07i199104-199401
SPRUCE,TRIM6#
main74317-22010-08i199104-199401
IVORY,TRIM0#
main74317-22010-23i199104-199401
MEDIUM GRAY,TRIM1#
main74317-22010-A2i199608-199808
IVORY,TRIM0#,07,08; IVORY,TRIM07,08
main74317-22010-B0i199808
SHADOW GRAY,TRIM2#
main74317-22010-G0i199401-199608
LI. SPRUCE,TRIM6#
main74317-22010-S4i199401-199808
MD. GRAY,TRIM2#
74318COVER, VISOR BRACKET, LH
main74318-22010-07i199104-199401
SPRUCE,TRIM6#
main74318-22010-08i199104-199401
IVORY,TRIM0#
main74318-22010-33i199104-199401
MEDIUM GRAY,TRIM1#
main74318-22010-A2i199608-199808
IVORY,TRIM0#,07,08; IVORY,TRIM07,08
main74318-22010-B0i199808
SHADOW GRAY,TRIM2#
main74318-22010-G0i199401-199608
LI. SPRUCE,TRIM6#
main74318-22010-S4i199401-199808
MD. GRAY,TRIM2#
74320VISOR ASSY, LH
main74320-24080-03i199104-199209
W(MOON ROOF),MEDIUM GRAY,TRIM1#
main74320-24080-07i199104-199209
W(MOON ROOF),SPRUCE,TRIM6#
main74320-24080-08i199104-199209
W(MOON ROOF),IVORY,TRIM0#
main74320-24120-03i199104-199209
MEDIUM GRAY,TRIM1#
main74320-24120-07i199104-199209
SPRUCE,TRIM6#
main74320-24120-08i199104-199209
IVORY,TRIM0#
main74320-24130-A0i199209-199308
IVORY,TRIM0#
main74320-24130-B0i199209-199308
MEDIUM GRAY,TRIM1#
main74320-24130-G0i199209-199308
SPRUCE,TRIM6#
main74320-24131-A0i199308-199408
IVORY,TRIM0#
main74320-24131-B0i199308-199401
MEDIUM GRAY,TRIM1#
main74320-24131-B1i199401-199408
MD. GRAY,TRIM2#
main74320-24131-G0i199308-199408
SPRUCE,TRIM6#
main74320-24132-A0i199408-199608
IVORY,TRIM0#
main74320-24132-B1i199408-199608
MEDIUM GRAY,TRIM2#
main74320-24132-G0i199408-199608
SPRUCE,TRIM6#
main74320-24133-A0i199702-199709
IVORY,TRIM07,08
main74320-24133-B1i199608-199702
MEDIUM GRAY,TRIM2#
main74320-24140-A0i199209-199308
W(MOON ROOF),IVORY,TRIM0#
main74320-24140-B0i199209-199308
W(MOON ROOF),MEDIUM GRAY,TRIM1#
main74320-24140-G0i199209-199308
W(MOON ROOF),SPRUCE,TRIM6#
main74320-24141-A0i199308-199408
W(MOON ROOF),IVORY,TRIM0#
main74320-24141-B0i199308-199401
W(MOON ROOF),MEDIUM GRAY,TRIM1#
main74320-24141-B1i199401-199408
W(MOON ROOF),MD. GRAY,TRIM2#
main74320-24141-G0i199308-199408
W(MOON ROOF),SPRUCE,TRIM6#
main74320-24142-A0i199408-199608
W(MOON ROOF),IVORY,TRIM0#
main74320-24142-B1i199408-199608
W(MOON ROOF),MEDIUM GRAY,TRIM2#
main74320-24142-G0i199408-199608
W(MOON ROOF),SPRUCE,TRIM6#
main74320-24143-A0i199608-199702
W(MOON ROOF),IVORY,TRIM07,08
main74320-24143-B1i199702-199709
W(MOON ROOF),MEDIUM GRAY,TRIM2#
main74320-24150-A0i199702-199709
IVORY,TRIM0#,07,08; IVORY,TRIM07,08
main74320-24150-B0i199702-199709
MEDIUM GRAY,TRIM2#
main74320-24151-A0i199709-199808
IVORY,TRIM0#,07,08; IVORY,TRIM07,08
main74320-24151-A1i199808-199908
IVORY,TRIM0#
main74320-24151-B0i199709-199808
MEDIUM GRAY,TRIM2#
main74320-24151-B1i199808-199908
MEDIUM GRAY,TRIM2#
main74320-24152-A1i199908-200007
IVORY,TRIM0#
main74320-24152-B1i199908-200007
MEDIUM GRAY,TRIM2#
main74320-24160-A0i199702-199709
W(MOON ROOF),IVORY,TRIM0#,07,08; W(MOON ROOF),IVORY,TRIM07,08
main74320-24160-B0i199702-199709
W(MOON ROOF),MEDIUM GRAY,TRIM2#
main74320-24171-A0i199709-199808
W(MOON ROOF),IVORY,TRIM0#,07,08; W(MOON ROOF),IVORY,TRIM07,08
main74320-24171-A1i199808-199908
W(MOON ROOF),IVORY,TRIM0#
main74320-24171-B0i199709-199808
W(MOON ROOF),MEDIUM GRAY,TRIM2#
main74320-24171-B1i199808-199908
W(MOON ROOF),MEDIUM GRAY,TRIM2#
main74320-24172-A1i199908-200007
W(MOON ROOF),IVORY,TRIM0#
main74320-24172-B1i199908-200007
W(MOON ROOF),MEDIUM GRAY,TRIM2#
74330AVISOR ASSY, CENTER
main74330-24020-03i199104-199401
MEDIUM GRAY,TRIM1#
main74330-24020-05i199608-199808
IVORY,TRIM0#,07,08; IVORY,TRIM07,08
main74330-24020-07i199104-199401
SPRUCE,TRIM6#
main74330-24020-08i199104-199401
IVORY,TRIM0#
main74330-24020-A0i199608-199709
IVORY,TRIM0#,07
main74330-24020-B0i199401-199808
MD. GRAY,TRIM2#
main74330-24020-B1i199608
MEDIUM GRAY,TRIM2#
main74330-24020-G0i199401-199608
LI. SPRUCE,TRIM6#
74336CLIP, VISOR ARM SET
main74336-24040-03i199104-199401
MEDIUM GRAY,TRIM1#
main74336-24040-07i199104-199401
SPRUCE,TRIM6#
main74336-24040-08i199104-199401
IVORY,TRIM0#
main74336-24040-A2i199608-199808
IVORY,TRIM0#,07,08; IVORY,TRIM07,08
main74336-24040-B0i199401-199808
MD. GRAY,TRIM2#
main74336-24040-B1i199808
SHADOW GRAY,TRIM2#
main74336-24040-G0i199401-199608
LI. SPRUCE,TRIM6#
74348HOLDER, VISOR
main74348-22020-A0×2i199608-199808
IVORY,TRIM0#,07,08; IVORY,TRIM07,08
main74348-22020-B0×2i199308-199401
GRAY,TRIM1#
main74348-22020-B3×2i199401-199808
MD. GRAY,TRIM2#
main74348-22020-G0×2i199308-199608
LI. SPRUCE,TRIM6#
main74348-22020-P0×2i199808
SHADOW GRAY,TRIM2#
main74348-24010-03×2i199104-199308
MEDIUM GRAY,TRIM1#
main74348-24010-07×2i199104-199308
SPRUCE,TRIM6#
main74348-24010-08×2i199104-199308
IVORY,TRIM0#
74610AGRIP SUB-ASSY, ASSIST
main74610-24050-03×2i199104-199401
SHADOW GRAY,TRIM1#
main74610-24050-05×2i199104-199401
GREIGE,TRIM0#
main74610-24050-07×2i199104-199401
DARK SPRUCE,TRIM6#
main74610-24050-C0×2i199401-199608
BLACK,TRIM2#
main74610-24050-E0×2i199608
IVORY,TRIM0#
main74610-24050-G0×2i199401-199608
LI. SPRUCE,TRIM6#
74617APLUG, ASSIST GRIP
main74617-24020-03×4i199104-199401
SHADOW GRAY,TRIM1#
main74617-24020-05×4i199104-199401
GREIGE,TRIM0#
main74617-24020-07×4i199104-199401
DARK SPRUCE,TRIM6#
main74617-24020-C0×4i199401-199608
BLACK,TRIM2#
main74617-24020-E0×4i199608-199808
IVORY,TRIM0#,07; IVORY,TRIM07
main74617-24020-E1×4i199608
SANDAL WOOD,TRIM0#
main74617-24020-G0×4i199401-199608
LI. SPRUCE,TRIM6#
74630CGRIP ASSY, DOOR ASSIST, RH
main74620-24010-03i199104-199401
SHADOW GRAY,TRIM1#
main74620-24010-05i199104-199401
GREIGE,TRIM0#
main74620-24010-07i199104-199401
DARK SPRUCE,TRIM6#
main74620-24020-C0i199808
BLACK,TRIM2#
main74620-24020-E0i199608-199808
IVORY,TRIM0#,07; IVORY,TRIM07
main74620-24020-E2i199608
SANDAL WOOD,TRIM0#
main74620-24020-G0i199401-199608
LI. SPRUCE,TRIM6#
74640CGRIP ASSY, DOOR ASSIST, LH
main74620-24010-03i199104-199401
SHADOW GRAY,TRIM1#
main74620-24010-05i199104-199401
GREIGE,TRIM0#
main74620-24010-07i199104-199401
DARK SPRUCE,TRIM6#
main74620-24020-C0i199401-199608
BLACK,TRIM2#
main74620-24020-E0i199608-199808
IVORY,TRIM0#,07; IVORY,TRIM07
main74620-24020-E2i199608-199709
SANDAL WOOD,TRIM07
main74620-24020-G0i199401-199608
LI. SPRUCE,TRIM6#
74681RETAINER, ASSIST GRIP, UPPER
main74681-24010×2i199104
74682RETAINER, ASSIST GRIP, LOWER
main74682-24010×2i199104
8121INTERIOR LAMP
→ Go to FIG 81-21
9015150022
main90151-50022
9015760005
main90157-60005
9015960084
main90159-60084
9015960465
main90159-60465
9016250009
main90162-50009
9016250017
main90162-50017
9016440105
main90164-40105
9046710012
main90467-10012

26 parts on this diagram · 1 diagram in section

ARMREST & VISOR — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
