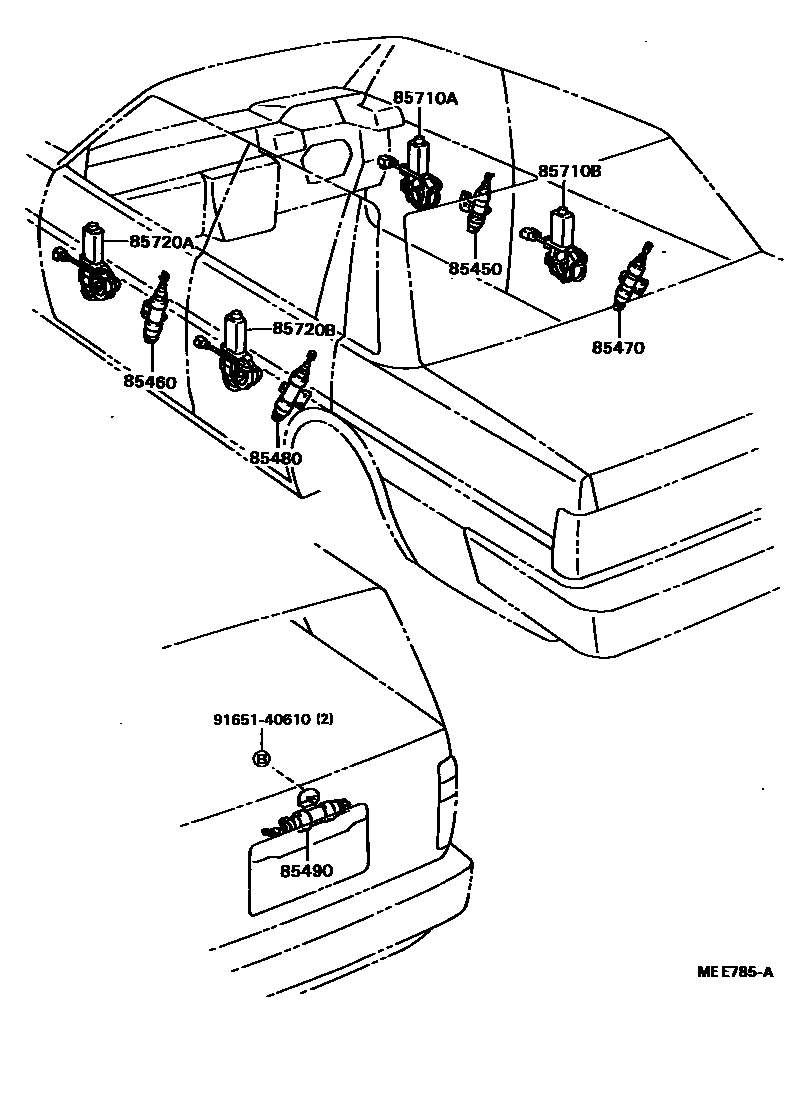

DOOR MOTOR & DOOR SOLENOID

85450SOLENOID ASSY, DOOR CONTROL, FRONT RH

main85450-22480iMX7#198408-198808

85460SOLENOID ASSY, DOOR CONTROL, FRONT LH

main85450-22490iMX7#198408-198808

85470SOLENOID ASSY, DOOR CONTROL, REAR RH

main85450-22500iMX73198408-198409

main85450-22501iMX7#198409-198808

85480SOLENOID ASSY, DOOR CONTROL, REAR LH

main85450-22510iMX73198408-198409

main85450-22511iMX7#198409-198808

85490SOLENOID ASSY, DOOR CONTROL BACK

main85450-22560iMX72..CND198411-198608

main85450-22570iMX72..USA198411-198708

85710AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH

main85710-22180iMX7#198608-198808

main85720-22130iMX7#198408-198608

DENSO

main85720-22150iMX73198408-198411

MATSUSHITA

85710BMOTOR ASSY, POWER WINDOW REGULATOR, REAR RH

main85710-22190iMX7#198608-198808

main85720-22140iMX7#198408-198608

DENSO

main85720-22160iMX73198408-198411

MATSUSHITA

85720AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH

main85710-22140iMX7#198408-198608

DENSO

main85710-22160iMX73198408-198411

MATSUSHITA

main85720-22170iMX7#198608-198808

85720BMOTOR ASSY, POWER WINDOW REGULATOR, REAR LH

main85710-22150iMX7#198408-198608

DENSO

main85710-22170iMX73198408-198411

MATSUSHITA

main85720-22180iMX7#198608-198808

9165140610

main91651-40610

10 parts on this diagram · 1 diagram in section
