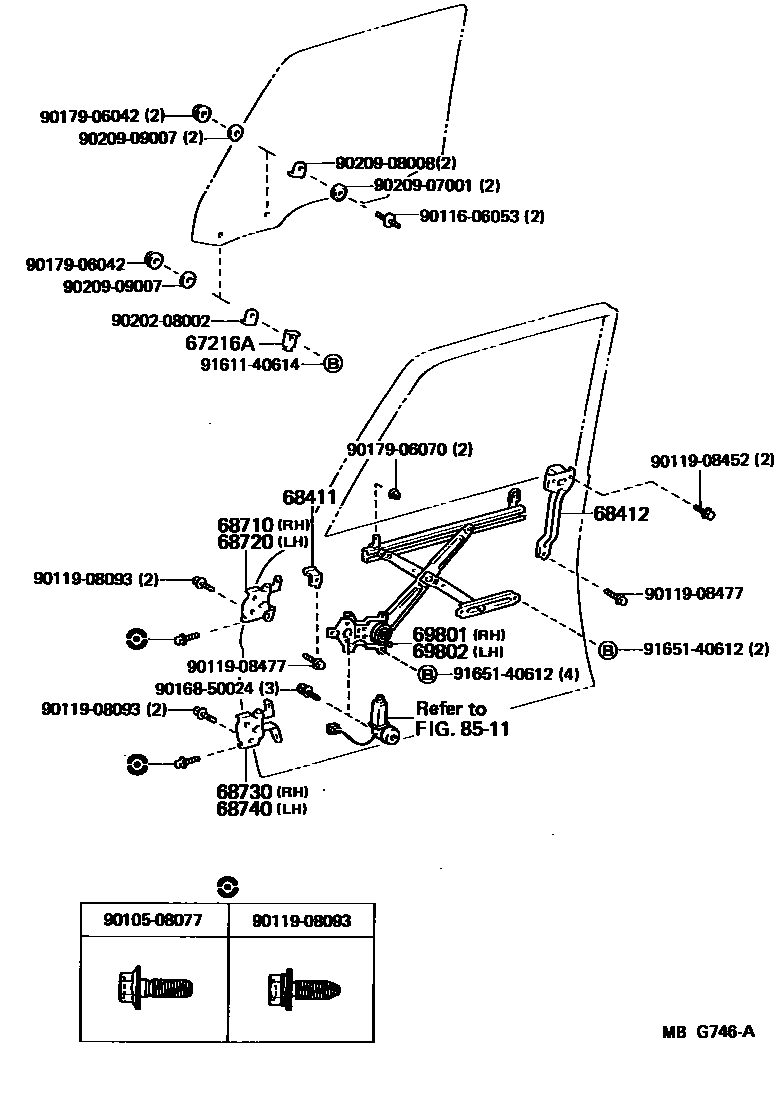

FRONT DOOR WINDOW REGULATOR & HINGE

67216ASTOPPER, FRONT DOOR GLASS, UPPER NO.2

main67216-22010×2iMX7#198408-198808

68411STOPPER, DOOR WINDOW GLASS, UPPER FRONT

main67211-22010×2iMX7#198408-198808

68412STOPPER, DOOR WINDOW GLASS, UPPER REAR

main67205-22010×2iMX7#198408-198503

main67205-22020iMX7#198503-198808

RH

main67206-22010iMX7#198503-198808

LH

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-22050iMX7#198408-198808

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-22040iMX7#198408-198808

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-32010iMX7#198408-198808

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-32010iMX7#198408-198808

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-22080iMX7#198408-198808

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-22080iMX7#198408-198808

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010508077

main90105-08077

9011606053

main90116-06053

9011908093

main90119-08093

9011908452

main90119-08452

9011908477

main90119-08477

9016850024

main90168-50024

9017906042

main90179-06042

9017906070

main90179-06070

9020208002

main90202-08002

9020907001

main90209-07001

9020908008

main90209-08008

9020909007

main90209-09007

9161140614

main91611-40614

9165140612

main91651-40612

24 parts on this diagram · 1 diagram in section
