NAVIGATION & FRONT MONITOR DISPLAY
8401SWITCH & RELAY & COMPUTER
84780ACONTROLLER ASSY, REMOTE OPERATION
AUDIO-DVD; AUDIO-DVD & MARK LEVINSON
AUDIO-DVD; AUDIO-DVD & MARK LEVINSON
8601RADIO RECEIVER & AMPLIFIER & CONDENSER
86110BMULTI-DISPLAY ASSY
DENSO,CANADA SPEC&AUDIO-DVD; DENSO,CANADA SPEC&AUDIO-DVD & MARK LEVINSON
DENSO,AUDIO-DVD; DENSO,AUDIO-DVD & MARK LEVINSON
PANASONIC,CANADA SPEC
DENSO TEN,F SPORT&AUDIO-DVD; DENSO TEN,F SPORT&AUDIO-DVD & MARK LEVINSON; DENSO TEN,LUXURY PACKAGE&AUDIO-DVD; DENSO TEN,LUXURY PACKAGE&AUDIO-DVD & MARK LEVINSON; DENSO TEN,PREMIUM PACKAGE&AUDIO-DVD; DENSO TEN,PREMIUM PACKAGE&AUDIO-DVD & MARK LEVINSON; DENSO TEN,ULTRA LUXURY PACKAGE&AUDIO-DVD; DENSO TEN,ULTRA LUXURY PACKAGE&AUDIO-DVD & MARK LEVINSON
86134APARTS, MULTI-DISPLAY
86211JBRACKET, RADIO RECEIVER, NO.1
AUDIO-DVD; AUDIO-DVD & MARK LEVINSON
86452PANEL, SUB-CLUSTER MODULE, NO.1
CANADA SPEC&AUDIO-DVD & MARK LEVINSON,BLACK,TRIM1#,2#; CANADA SPEC&AUDIO-DVD,BLACK,TRIM1#,2#
CANADA SPEC&AUDIO-DVD & MARK LEVINSON,NOBLE BROWN,TRIM5#,6#; CANADA SPEC&AUDIO-DVD,NOBLE BROWN,TRIM5#,6#
86456COVER, MULTI-MEDIA MODULE
CANADA SPEC&AUDIO-DVD; CANADA SPEC&AUDIO-DVD & MARK LEVINSON
86730AMICROPHONE ASSY, TELEPHONE
86734MICROPHONE, ACTIVE NOISE CONTROL
F SPORT
86841COMPUTER, NAVIGATION
AUDIO-DVD; AUDIO-DVD & MARK LEVINSON
AUDIO-DVD; AUDIO-DVD & MARK LEVINSON
AUDIO-DVD; AUDIO-DVD & MARK LEVINSON
AUDIO-DVD; AUDIO-DVD & MARK LEVINSON
AUDIO-DVD; AUDIO-DVD & MARK LEVINSON
AUDIO-DVD; AUDIO-DVD & MARK LEVINSON
AUDIO-DVD; AUDIO-DVD & MARK LEVINSON
AUDIO-DVD; AUDIO-DVD & MARK LEVINSON
AUDIO-DVD; AUDIO-DVD & MARK LEVINSON
86842WIRE, NAVIGATION, NO.1
AUDIO-DVD; AUDIO-DVD & MARK LEVINSON
86860ANTENNA ASSY, NAVIGATION
GUAM SPEC
86862BRACKET, NAVIGATION ANTENNA
9008011699
main90080-11699
9008015073
main90080-15073
9009900262
main90099-00262
9015350015
main90153-50015
90153A0003
main90153-A0003
9015950327
main90159-50327

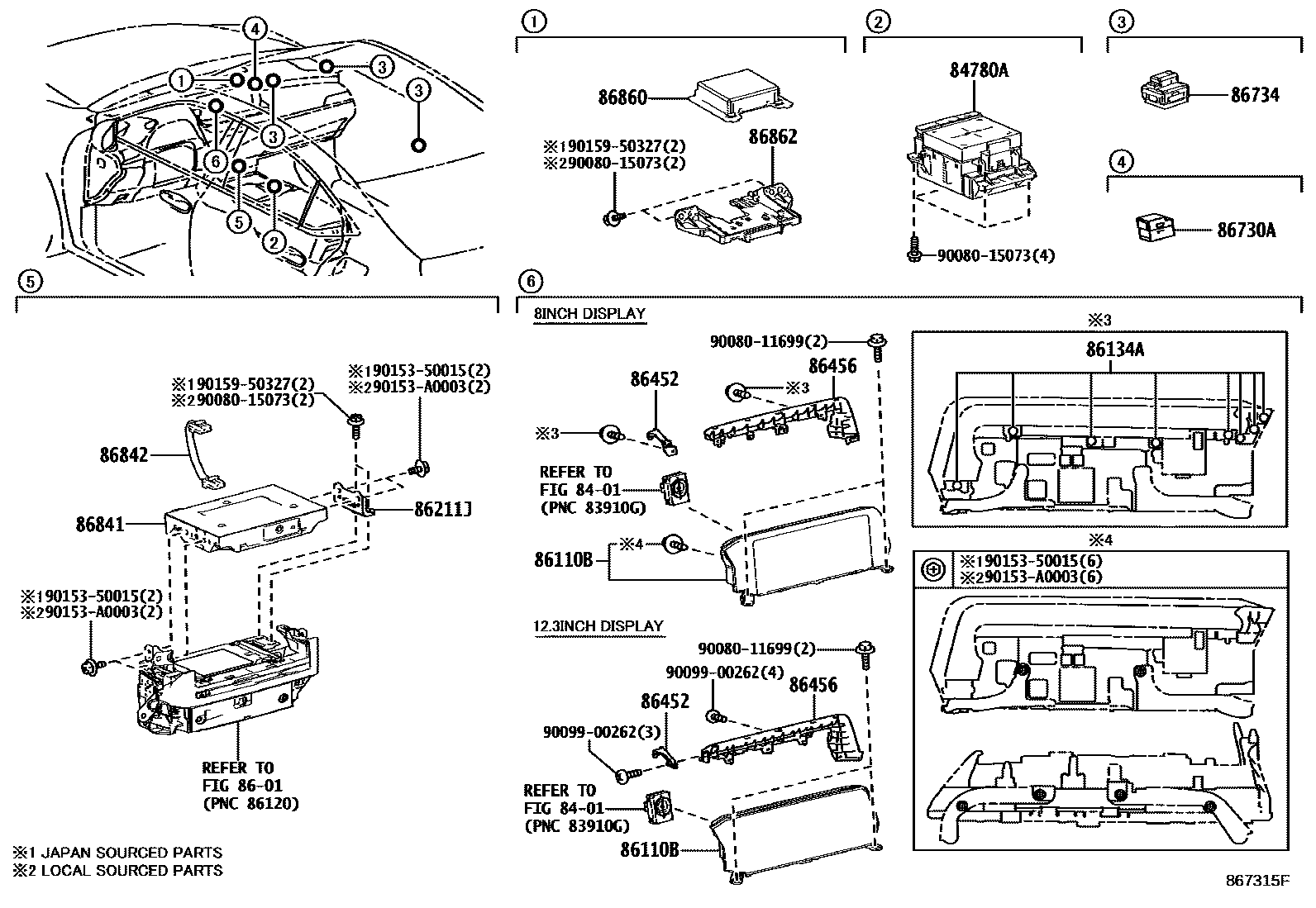

20 parts on this diagram · 2 diagrams in section
