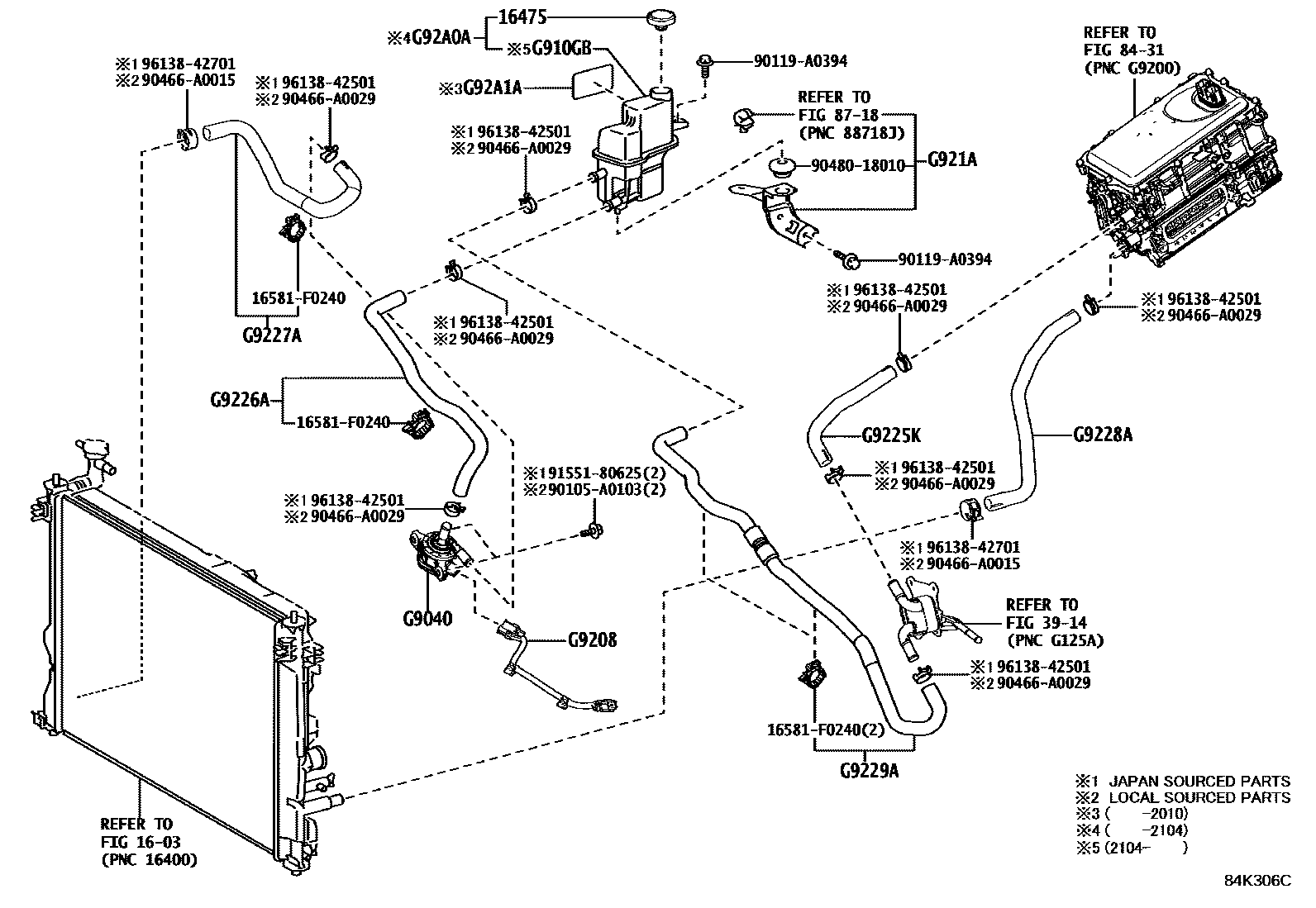

INVERTER COOLING

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16475CAP, RESERVE TANK

main16475-28140iA25AFXS..AXZH1#201905-202109

3914OIL COOLER & TUBE (HEV OR BEV OR FCEV)

→ Go to FIG 39-14

8431HEV INVERTER

→ Go to FIG 84-31

8718HEATING & AIR CONDITIONING - COOLER PIPING

→ Go to FIG 87-18

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904033050iAXZH1#201905-202109

mainG904048060iAXZH1#202307

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G06010iAXZH1#202104-202109

G9208WIRE SUB-ASSY, INVERTER

mainG920833060iAXZH1#201905-202109

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H206010iAXZH1#201905-202109

mainG91H206011iAXZH1#202302

G9225KHOSE, INVERTER COOLING, NO.1

mainG922506080iAXZH1#201905-202109

G9226AHOSE, INVERTER COOLING, NO.2

mainG922606042iAXZH1#201905-202109

G9227AHOSE, INVERTER COOLING, NO.3

mainG922706041iAXZH1#201905-202109

G9228AHOSE, INVERTER COOLING, NO.4

mainG922806090iAXZH1#201905-202109

G9229AHOSE, INVERTER COOLING, NO.5

mainG922906052iAXZH1#201905-202109

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H006010iAXZH1#201905-202104

G92A1ALABEL, HYBRID COOLANT SYSTEM INFORMATION

mainG92A176010iAXZH1#201905-202010

16581F0240CLAMP, HOSE(FOR WATER HOSE)

main16581-F0240

90105A0103

main90105-A0103

90119A0394

main90119-A0394

90466A0015

main90466-A0015

90466A0029

main90466-A0029

9048018010

main90480-18010

9155180625

main91551-80625

9613842501

main96138-42501

9613842701

main96138-42701

25 parts on this diagram · 1 diagram in section
