Toyota 2824A0 — REAR COMBINATION LAMP
52562ERETAINER, REAR BUMPER, UPPER RH
52563DRETAINER, REAR BUMPER, UPPER LH
6101SIDE MEMBER
76817BCLIP, REAR LAMP
81496CGUIDE, REAR COMBINATION LAMP, NO.2
81497COVER, REAR COMBINATION LAMP, RH
81498COVER, REAR COMBINATION LAMP, LH
81557CCOVER, REAR COMBINATION LAMP, RH
81558LPROTECTOR, REAR COMBINATION LAMP, RH
81567CCOVER, REAR COMBINATION LAMP, LH
81568JPROTECTOR, REAR COMBINATION LAMP, LH
81580DLAMP ASSY, REAR, RH
81584AGASKET, REAR LAMP RH
81590ALAMP ASSY, REAR, LH
81594AGASKET, REAR LAMP LH
9015960621
90176A0004
90178A0092
9018906242

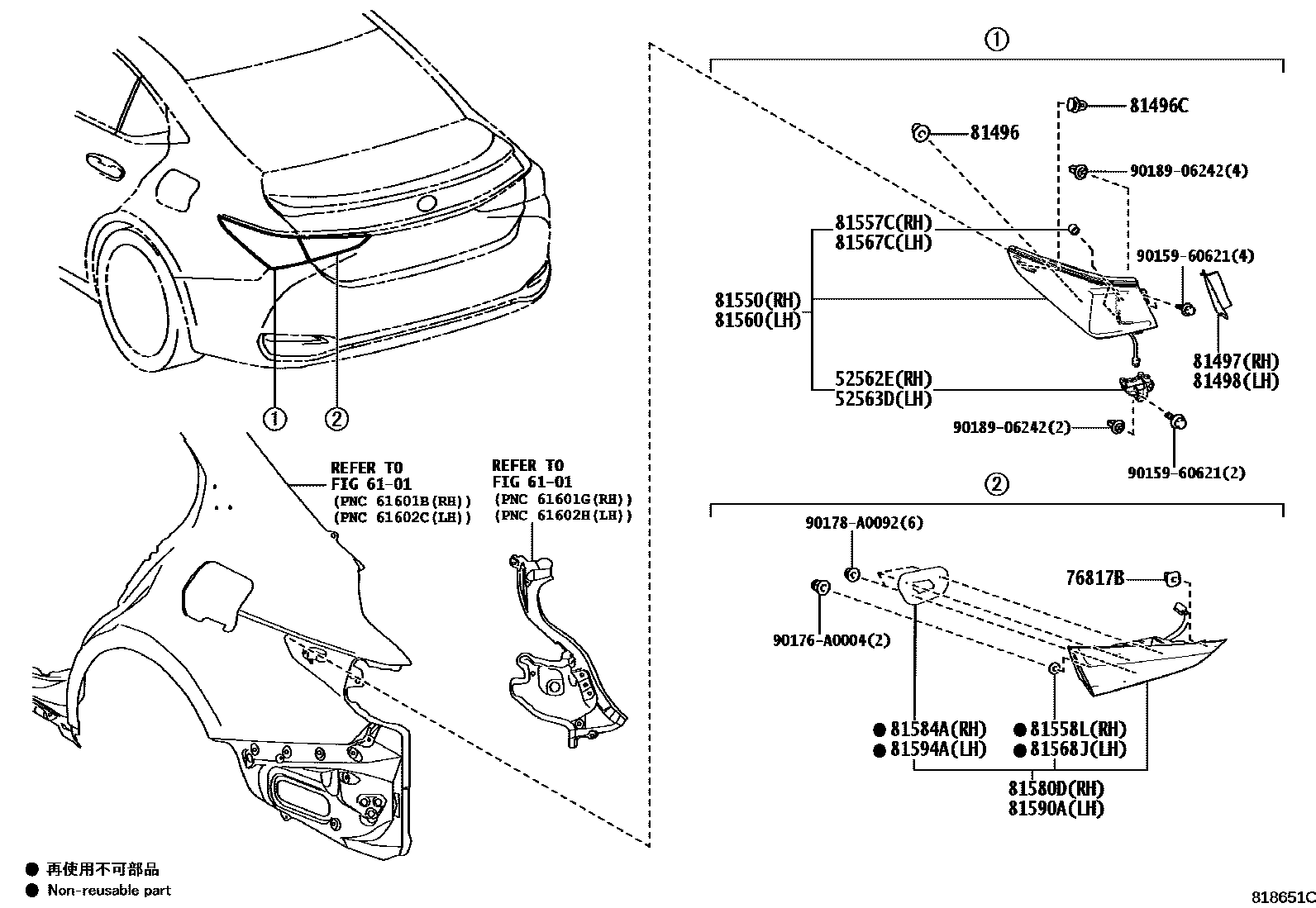

22 parts on this diagram · 1 diagram in section
REAR COMBINATION LAMP for Toyota 2824A0
This section contains 22 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota 2824A0. Key components include: RETAINER, REAR BUMPER, UPPER RH, RETAINER, REAR BUMPER, UPPER LH, SIDE MEMBER, CLIP, REAR LAMP, GUIDE, REAR COMBINATION LAMP.
