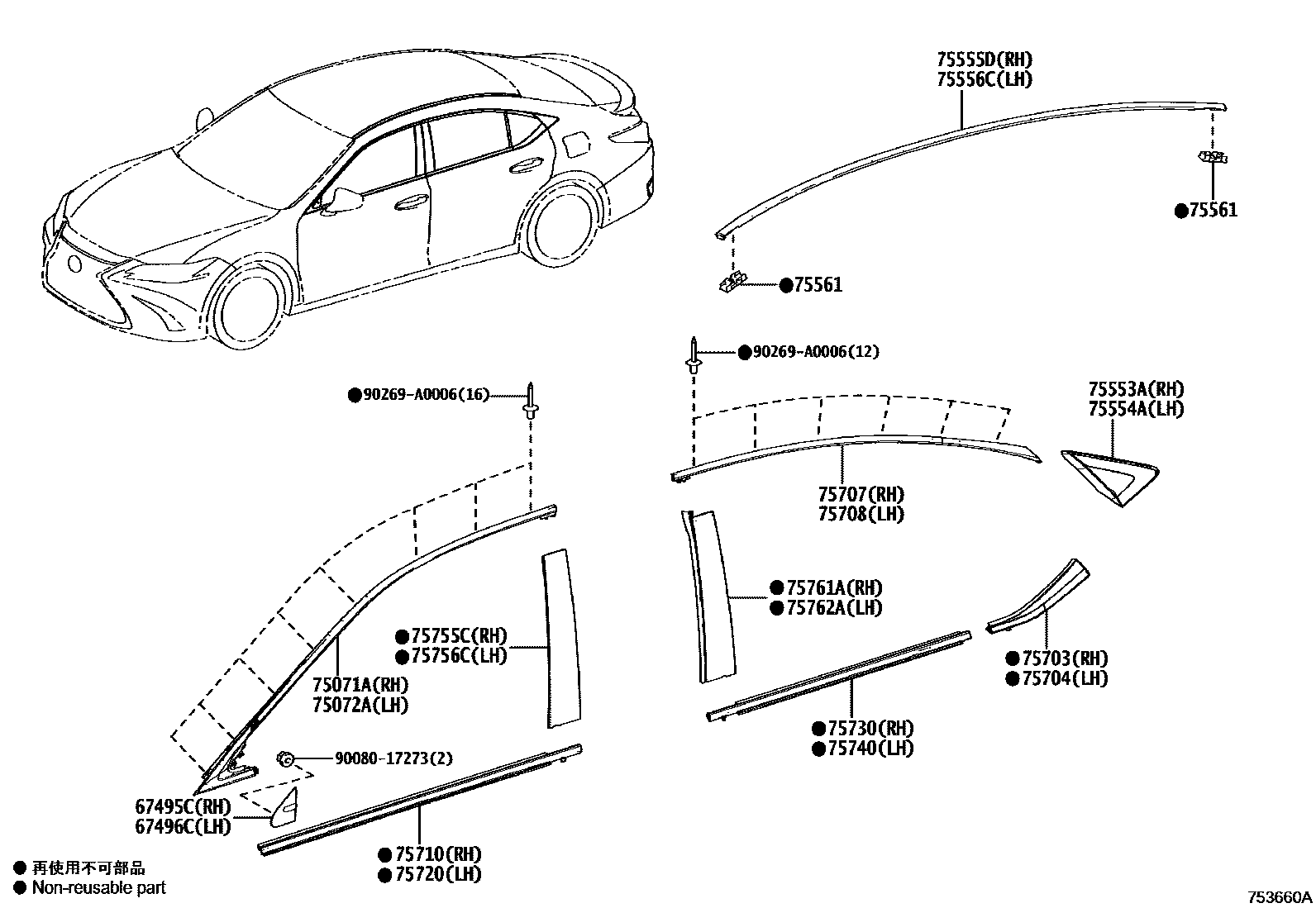

SIDE MOULDING
67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH
75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
ROOF & MOON ROOF-PANORAMIC ROOF,WHITE NOVA GF.,083; WHITE NOVA GF.,083
ROOF & MOON ROOF-PANORAMIC ROOF,SONIC QUARTZ,085; SONIC QUARTZ,085
MERCURY GRAY MC.,1H9; ROOF & MOON ROOF-PANORAMIC ROOF,MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4; ROOF & MOON ROOF-PANORAMIC ROOF,PLATINUM SILVER ME.,1J4
ROOF & MOON ROOF-PANORAMIC ROOF,SONIC TITANIUM,1J7; SONIC TITANIUM,1J7
ROOF & MOON ROOF-PANORAMIC ROOF,SONIC CHROME,1L1; SONIC CHROME,1L1
ROOF & MOON ROOF-PANORAMIC ROOF,SONIC IRIDIUM,1L2; SONIC IRIDIUM,1L2
BLACK,212; ROOF & MOON ROOF-PANORAMIC ROOF,BLACK,212
GRAPHITE BLACK GF.,223; ROOF & MOON ROOF-PANORAMIC ROOF,GRAPHITE BLACK GF.,223
RED MC.CS.,3R1; ROOF & MOON ROOF-PANORAMIC ROOF,RED MC.CS.,3R1
ICE ECRU M.M.,4X8; ROOF & MOON ROOF-PANORAMIC ROOF,ICE ECRU M.M.,4X8
ROOF & MOON ROOF-PANORAMIC ROOF,SUNLIGHT GREEN M.M.,6X0; SUNLIGHT GREEN M.M.,6X0
HEAT BLUE CONTRAST LAYERI,8X1; ROOF & MOON ROOF-PANORAMIC ROOF,HEAT BLUE CONTRAST LAYERI,8X1
DEEP BLUE MC.,8X5; ROOF & MOON ROOF-PANORAMIC ROOF,DEEP BLUE MC.,8X5
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
WHITE NOVA GF.,083
ROOF & MOON ROOF-PANORAMIC ROOF,SONIC QUARTZ,085; SONIC QUARTZ,085
MERCURY GRAY MC.,1H9; ROOF & MOON ROOF-PANORAMIC ROOF,MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4; ROOF & MOON ROOF-PANORAMIC ROOF,PLATINUM SILVER ME.,1J4
ROOF & MOON ROOF-PANORAMIC ROOF,SONIC TITANIUM,1J7; SONIC TITANIUM,1J7
ROOF & MOON ROOF-PANORAMIC ROOF,SONIC CHROME,1L1; SONIC CHROME,1L1
ROOF & MOON ROOF-PANORAMIC ROOF,SONIC IRIDIUM,1L2; SONIC IRIDIUM,1L2
BLACK,212; ROOF & MOON ROOF-PANORAMIC ROOF,BLACK,212
GRAPHITE BLACK GF.,223; ROOF & MOON ROOF-PANORAMIC ROOF,GRAPHITE BLACK GF.,223
RED MC.CS.,3R1; ROOF & MOON ROOF-PANORAMIC ROOF,RED MC.CS.,3R1
ICE ECRU M.M.,4X8; ROOF & MOON ROOF-PANORAMIC ROOF,ICE ECRU M.M.,4X8
ROOF & MOON ROOF-PANORAMIC ROOF,SUNLIGHT GREEN M.M.,6X0; SUNLIGHT GREEN M.M.,6X0
HEAT BLUE CONTRAST LAYERI,8X1; ROOF & MOON ROOF-PANORAMIC ROOF,HEAT BLUE CONTRAST LAYERI,8X1
DEEP BLUE MC.,8X5; ROOF & MOON ROOF-PANORAMIC ROOF,DEEP BLUE MC.,8X5
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
ROOF & MOON ROOF-PANORAMIC ROOF
75703MOULDING SUB-ASSY, REAR DOOR BELT, RH
75704MOULDING SUB-ASSY, REAR DOOR BELT, LH
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
9008017273
main90080-17273
90269A0006
main90269-A0006
23 parts on this diagram · 2 diagrams in section
