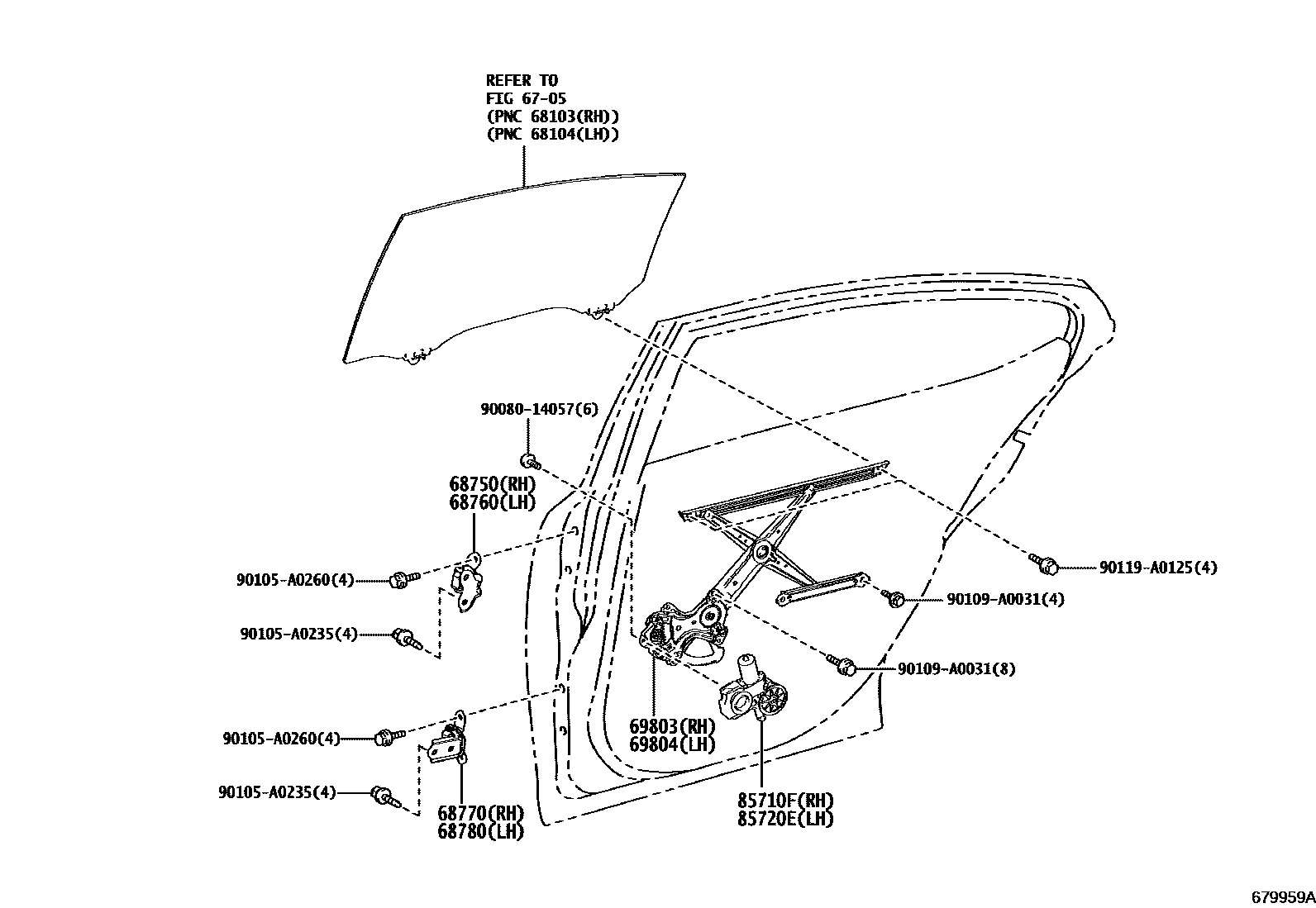

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-06010iAXZA15,AXZH1#,GSZ10201808-202109

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-06010iAXZA15,AXZH1#,GSZ10201808-202109

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-06050iAXZA15,AXZH1#,GSZ10201808-202109

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-06050iAXZA15,AXZH1#,GSZ10201808-202109

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69801-06190iAXZA15,AXZH1#,GSZ10201808-202109

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69802-06190iAXZA15,AXZH1#,GSZ10201808-202109

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-07100iAXZA15,AXZH1#,GSZ10201808-202103

main85710-33360iAXZA15,AXZH1#,GSZ10202104-202109

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-07080iAXZA15,AXZH1#,GSZ10201808-202103

main85720-33360iAXZA15,AXZH1#,GSZ10202104-202109

9008014057

main90080-14057

90105A0235

main90105-A0235

90105A0260

main90105-A0260

90109A0031

main90109-A0031

90119A0125

main90119-A0125

14 parts on this diagram · 1 diagram in section
