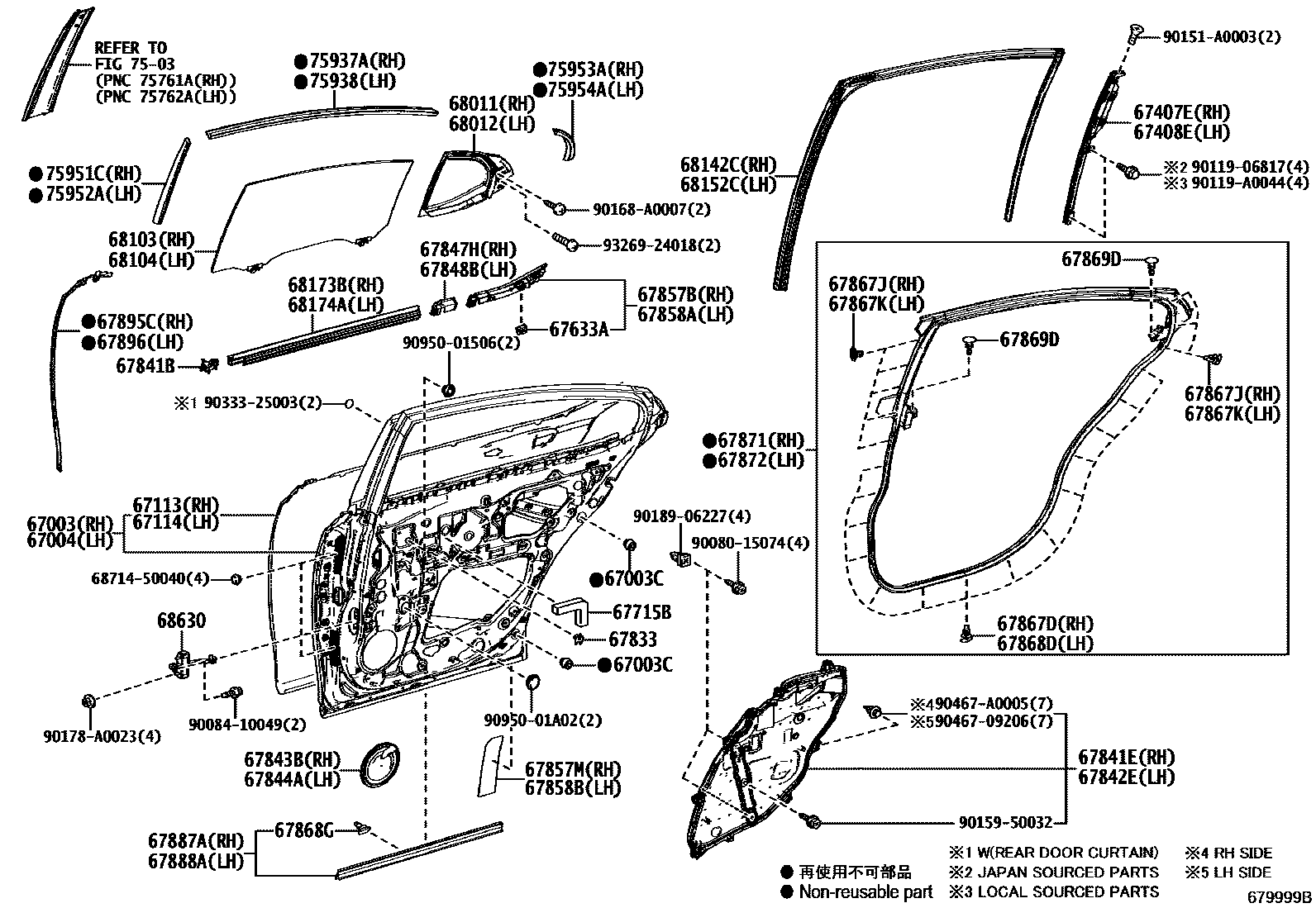

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM, W/O(REAR DOOR CURT0004 1DOOR TRIM, W(REAR DOOR CURTAI

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-06420supersedes 67003-06411iAXZH10,GSZ10201808-201912

SUNSHADE-WITH(REAR DOOR & REAR WINDOW)

main67003-06421supersedes 67003-06411iAXZH10,GSZ10202004-202109

SUNSHADE-WITH(REAR DOOR & REAR WINDOW)

67003CCUSHION, REAR DOOR PANEL

main90541-09124×4iAXZA15,AXZH1#,GSZ10202109

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-06410supersedes 67004-06401iAXZH10,GSZ10202003-202004

SUNSHADE-WITH(REAR DOOR & REAR WINDOW)

main67004-06411supersedes 67004-06401iAXZH10,GSZ10202004-202109

SUNSHADE-WITH(REAR DOOR & REAR WINDOW)

67113PANEL, REAR DOOR, OUTER RH

main67113-06240iAXZA15,AXZH1#,GSZ10201808-202109

67114PANEL, REAR DOOR, OUTER LH

main67114-06240iAXZA15,AXZH1#,GSZ10201808-202109

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-33150supersedes 67407-33140iAXZA15,AXZH1#,GSZ10201808-202109

SUNSHADE-WITH(REAR DOOR & REAR WINDOW)

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-33150supersedes 67408-33140iAXZA15,AXZH1#,GSZ10202109

SUNSHADE-WITH(REAR DOOR & REAR WINDOW)

67633ARETAINER, REAR DOOR TRIM, UPPER

main67923-06300×2iAXZA15,AXZH1#,GSZ10201808-202109

67715BPAD, REAR DOOR TRIM

main67715-33120×2iAXZA15,AXZH1#,GSZ10201808-202109

67833COVER, REAR DOOR SERVICE HOLE

main67833-47010×2iAXZA15,AXZH1#,GSZ10202109

67841BCOVER, REAR DOOR SERVICE HOLE

main67843-06150iAXZA15,AXZH1#,GSZ10202109

RH

main67844-06130iAXZA15,AXZH1#,GSZ10202109

LH

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-06320iAXZA15,AXZH1#,GSZ10201808-202109

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-06320iAXZA15,AXZH1#,GSZ10201808-202109

67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH

main67843-06160iAXZA15,AXZH1#,GSZ10202109

67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH

main67844-06140iAXZA15,AXZH1#,GSZ10201808-202109

67847HSEAL, REAR DOOR VENT, RH NO.2

main67847-06090iAXZA15,AXZH1#,GSZ10201808-202109

67848BSEAL, REAR DOOR VENT, LH NO.2

main67848-06070iAXZA15,AXZH1#,GSZ10201808-202109

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-06070iAXZA15,AXZH1#,GSZ10201808-202109

67857MPROTECTOR, REAR DOOR PANEL, RH

main67857-06080iAXZA15,AXZH1#,GSZ10201808-202109

67858APROTECTOR, REAR DOOR PANEL, LH

main67858-06070iAXZA15,AXZH1#,GSZ10202109

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-06080iAXZA15,AXZH1#,GSZ10202109

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×14iAXZA15,AXZH1#,GSZ10201808-202109

67867JCLIP, DOOR WEATHERSTRIP, RH(FOR REAR DOOR)

main67867-48030×8iAXZA15,AXZH1#,GSZ10202109

67867KCLIP, DOOR WEATHERSTRIP, LH(FOR REAR DOOR)

main67867-48030×8iAXZA15,AXZH1#,GSZ10202109

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×14iAXZA15,AXZH1#,GSZ10202109

67868GRETAINER, DOOR WEATHERSTRIP

main67867-48030×12iAXZH10,GSZ10201808-202003

main67867-AE011×12iAXZA15,AXZH1#,GSZ10202109

67869DCLIP, DOOR WEATHERSTRIP

main67869-20030×4iAXZA15,AXZH1#,GSZ10202109

67871WEATHERSTRIP, REAR DOOR, RH

main67871-06230iAXZH10,GSZ10201808-201910

main67871-06240iAXZA15,AXZH1#,GSZ10201910-202109

67872WEATHERSTRIP, REAR DOOR, LH

main67872-06230iAXZH10,GSZ10201808-201910

main67872-06240iAXZA15,AXZH1#,GSZ10202109

67887AWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-06160iAXZA15,AXZH1#,GSZ10202109

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main67887-06160iAXZA15,AXZH1#,GSZ10202109

67895CWEATHERSTRIP, REAR DOOR, NO.3 RH

main67895-06020iAXZA15,AXZH1#,GSZ10201808-202109

67896WEATHERSTRIP, REAR DOOR, NO.3 LH

main67896-06020iAXZA15,AXZH1#,GSZ10202109

68011GLASS SUB-ASSY, REAR DOOR QUARTER WINDOW, RH

main68011-06020supersedes 68011-06010iAXZA15,AXZH1#,GSZ10201808-202109

SUNSHADE-WITH(REAR DOOR & REAR WINDOW)

68012GLASS SUB-ASSY, REAR DOOR QUARTER WINDOW, LH

main68012-06020supersedes 68012-06010iAXZA15,AXZH1#,GSZ10201808-202109

SUNSHADE-WITH(REAR DOOR & REAR WINDOW)

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-06380iAXZA15,AXZH1#,GSZ10201808-202109

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-06370iAXZA15,AXZH1#,GSZ10202109

68142CRUN, REAR DOOR GLASS, RH

main68142-06230iAXZA15,AXZH1#,GSZ10201808-202109

68152CRUN, REAR DOOR GLASS, LH

main68152-06230iAXZA15,AXZH1#,GSZ10201808-202109

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-06220iAXZA15,AXZH1#,GSZ10202109

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-06220iAXZA15,AXZH1#,GSZ10202109

68630CHECK ASSY, REAR DOOR

main68630-06190×2iAXZA15,AXZH1#,GSZ10201808-202109

7503SIDE MOULDING

→ Go to FIG 75-03

75937ATAPE, BLACK OUT, INNER UPPER RH

main75987-06260supersedes 75987-06250iAXZA15,AXZH1#,GSZ10202109

SUNSHADE-WITH(REAR DOOR & REAR WINDOW)

75938TAPE, BLACK OUT, INNER UPPER LH

main75988-06260supersedes 75988-06250iAXZA15,AXZH1#,GSZ10202109

SUNSHADE-WITH(REAR DOOR & REAR WINDOW)

75951CTAPE, BLACK OUT, INNER FRONT RH

main75977-06150iAXZA15,AXZH1#,GSZ10201808-202109

75952ATAPE, BLACK OUT, INNER FRONT LH

main75978-06150iAXZA15,AXZH1#,GSZ10202109

75953ATAPE, BLACK OUT, INNER REAR RH

main75953-06010iAXZA15,AXZH1#,GSZ10202109

75954ATAPE, BLACK OUT, INNER REAR LH

main75954-06010iAXZA15,AXZH1#,GSZ10202109

6871450040

main68714-50040

9008015074

main90080-15074

9008410049

main90084-10049

9011906817

main90119-06817

90119A0044

main90119-A0044

90151A0003

main90151-A0003

9015950032

main90159-50032

90168A0007

main90168-A0007

90178A0023

main90178-A0023

9018906227

main90189-06227

9033325003

main90333-25003

9046709206

main90467-09206

90467A0005

main90467-A0005

9095001506

main90950-01506

9095001A02

main90950-01A02

9326924018

main93269-24018

65 parts on this diagram · 4 diagrams in section
