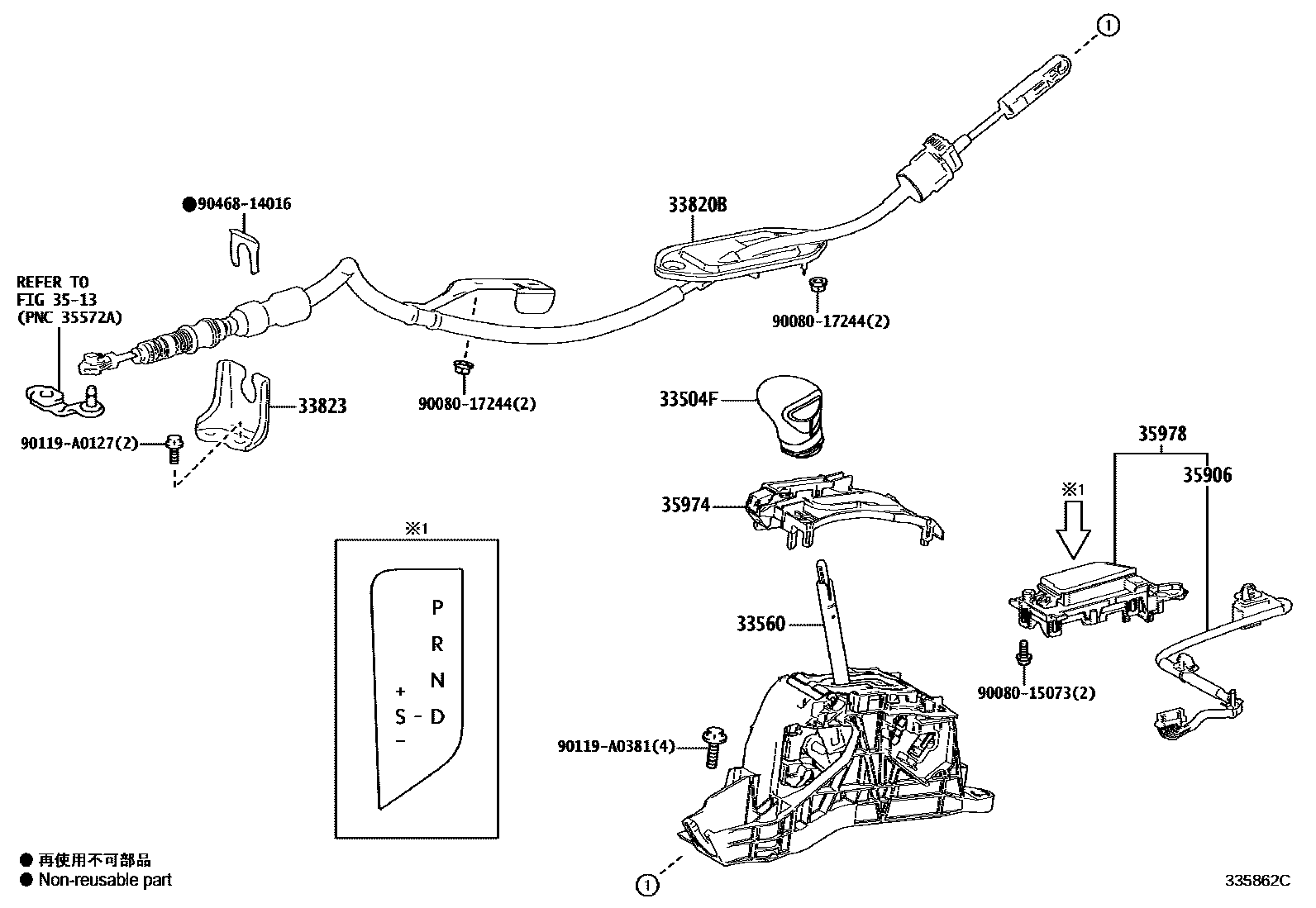

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-06420-C0iAXZA15,AXZH1#,GSZ10201808-202109

BLACK,TRIM1#,2#,5#,6#

main33504-06430-C0iAXZA15,GSZ10201808-202109

F SPORT,BLACK,TRIM2#

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-06400iAXZA15,AXZH1#,GSZ10202109

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-06520iGSZ10201808-202109

main33820-06530iAXZH1#201905-202109

main33820-06590iAXZA15202009-202109

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-06040iAXZA15,GSZ10201808-202109

main33823-06070iAXZH1#202109

3513THROTTLE LINK & VALVE LEVER (ATM)

→ Go to FIG 35-13

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-06330iAXZA15,GSZ10201808-202109

main35906-06370iAXZA15,GSZ10202209

35974HOUSING, POSITION INDICATOR, LOWER

main35974-06190iAXZA15,AXZH1#,GSZ10202109

35978INDICATOR, SHIFT POSITION

main35978-06320iAXZH1#201905-202109

main35978-06350iAXZA15,GSZ10202209

main35978-06360iAXZH1#202209

main35978-06400iAXZA15,GSZ10201808-202109

9008015073

main90080-15073

9008017244

main90080-17244

90119A0127

main90119-A0127

90119A0381

main90119-A0381

9046814016

main90468-14016

13 parts on this diagram · 2 diagrams in section
