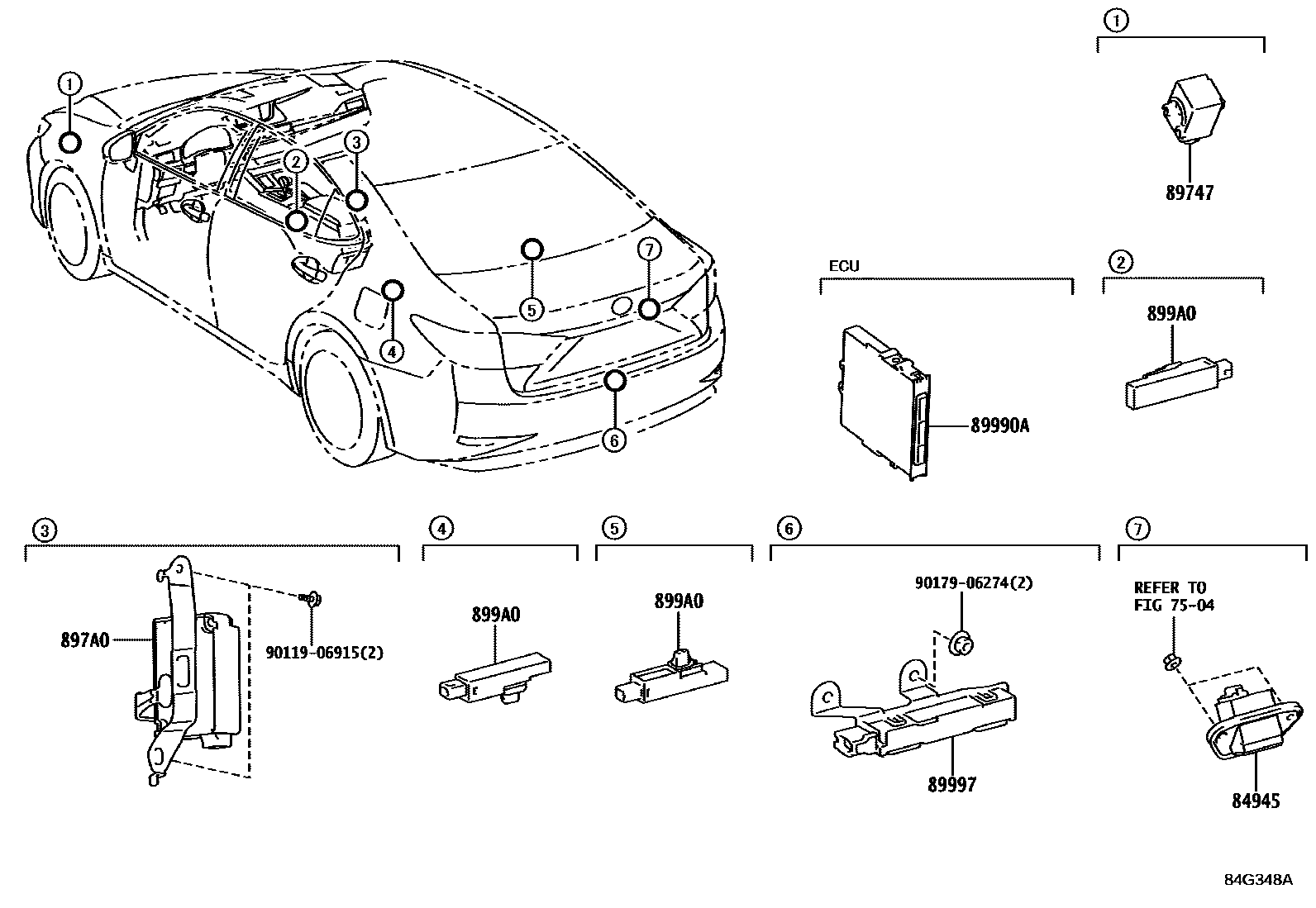

WIRELESS DOOR LOCK

7504REAR MOULDING

→ Go to FIG 75-04

84945SWITCH, LUGGAGE ELECTRICAL KEY

main84945-33020iGSV60201510

89747BUZZER, WIRELESS DOOR LOCK

main89747-0R020iGSV60201510

897A0RECEIVER ASSY,DOOR CONTROL & TIRE PRESSURE MONITORING SYSTEM

main897B0-06070iGSV60201510

89990ACOMPUTER ASSY, SMART KEY

main89990-0W010iGSV60201510

89997ANTENNA, ELECTRICAL KEY

main89997-06040iGSV60201510

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-06030iGSV60201510

9011906915

main90119-06915

9017906274

main90179-06274

9 parts on this diagram · 1 diagram in section
