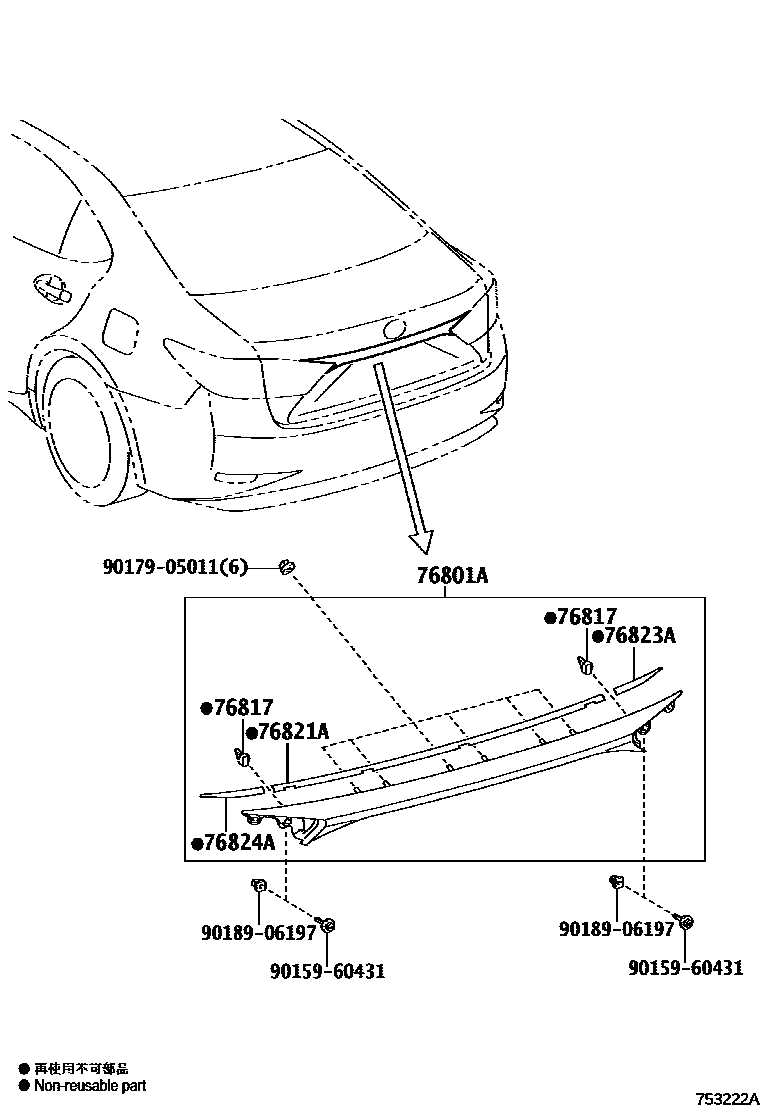

REAR MOULDING

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-06D71iGSV60201510-201803

PLATED

main76801-33641iGSV60201803

PLATED,(J)

main76801-06D61iGSV60201510-201609

PLATED,CANADA SPEC

76817CLIP, BACK DOOR OUTSIDE GARNISH

main76817-12070×2iGSV60201510

76821APROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH

main76821-06090supersedes 76821-33030iGSV60201510-201609

CANADA SPEC

76823APROTECTOR, LUGGAGE COMPARTMENT DOOR GARNISH, OUTSIDE RH

main76823-06010supersedes 76823-33010iGSV60201510-201609

CANADA SPEC

76824APROTECTOR, LUGGAGE COMPT DOOR GARNISH, OUTSIDE LH

main76824-06080supersedes 76824-33020iGSV60201510-201609

CANADA SPEC

9015960431

main90159-60431

9017905011

main90179-05011

9018906197

main90189-06197

8 parts on this diagram · 1 diagram in section
