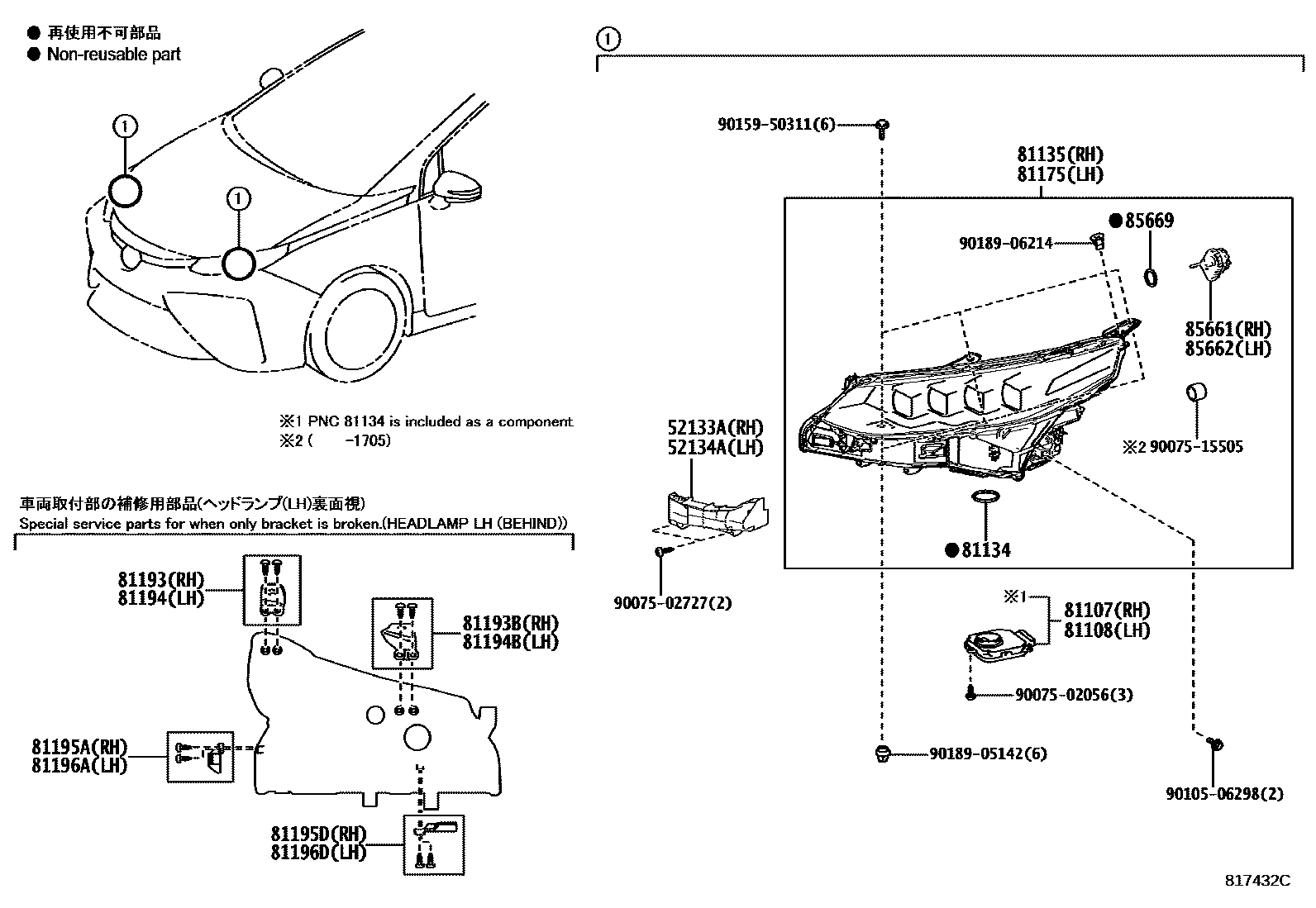

HEADLAMP

52133ABRACKET, FRONT BUMPER, RH

main52133-62020iJPD10201506-202005

52134ABRACKET, FRONT BUMPER, LH

main52134-62020iJPD10201506-202005

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main81107-62040iJPD10201506-202005

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main81108-62040iJPD10201506-202005

81134GASKET, HEADLAMP

main90075-23003×4iJPD10201506-202005

81135UNIT ASSY, HEADLAMP, RH

main81145-62060iJPD10201506-202005

81175UNIT ASSY, HEADLAMP, LH

main81185-62060iJPD10201506-202005

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-62010iJPD10201506-202005

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-62020iJPD10201506-202005

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-62010iJPD10201506-202005

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-62020iJPD10201506-202005

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-62010iJPD10201506-202005

81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2

main81195-62020iJPD10201506-202005

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-62010iJPD10201506-202005

81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

main81196-62020iJPD10201506-202005

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12020iJPD10201506-202005

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12020iJPD10201506-202005

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iJPD10201506-202005

9007502056

main90075-02056

9007502727

main90075-02727

9007515505

main90075-15505

9010506298

main90105-06298

9015950311

main90159-50311

9018905142

main90189-05142

9018906214

main90189-06214

25 parts on this diagram · 1 diagram in section
