HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1CONTROL PANEL 0003 1AIR DUCT 0004 1AIR DUCT 0005 1SENSOR

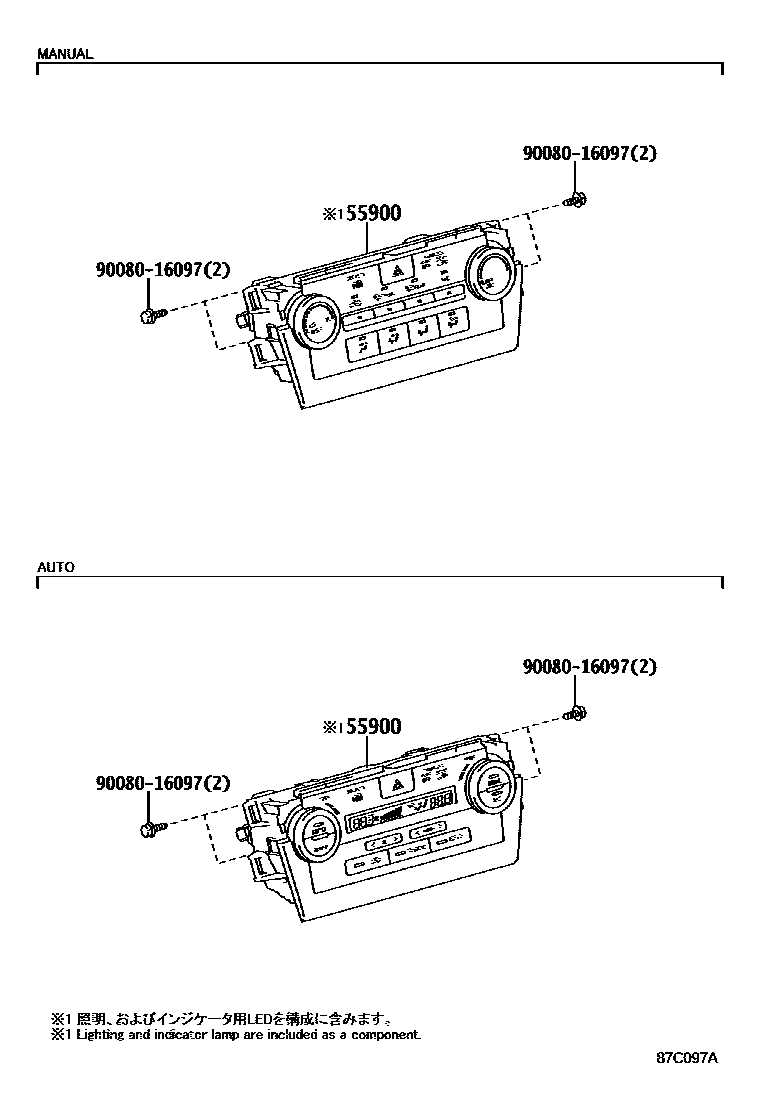

55900CONTROL ASSY, AIR CONDITIONER

main55900-06300iASV50..XLE201409

main55900-06320iASV50..LE201409

main55900-06350iASV50..LE,N201109-201409

main55900-06380iASV50..XLE201109-201409

9008016097

main90080-16097

2 parts on this diagram · 5 diagrams in section
