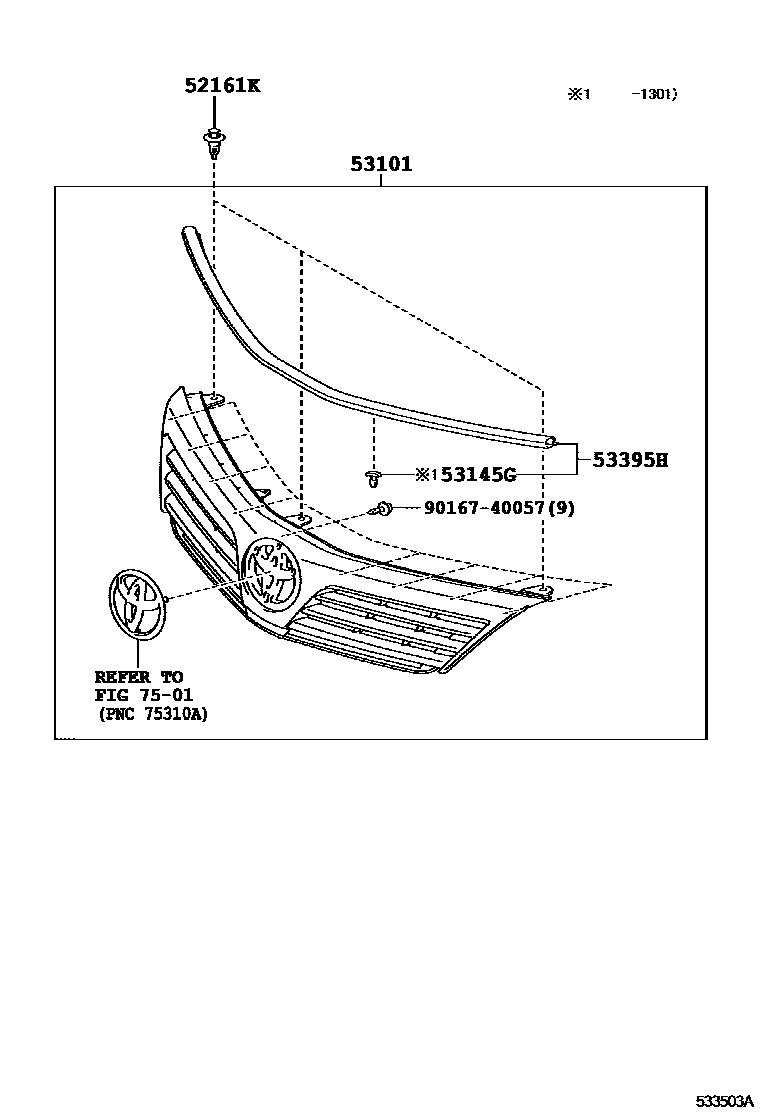

RADIATOR GRILLE

0001 1 0002 1 0003 1

52161KPIECE, FRONT BUMPER

main52161-02020×3iASV50201109-201409

53101GRILLE SUB-ASSY, RADIATOR

main53101-06320iASV50..N201109-201409

PLATED

main53101-06411iASV50201409-201606

PLATED

main53101-06560iASV50..LE,XLE201109-201409

PLATED

53145GCLIP, RADIATOR GRILLE

main53145-60030×15iASV50201109-201301

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-06030iASV50201109-201409

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9016740057

main90167-40057

6 parts on this diagram · 3 diagrams in section
