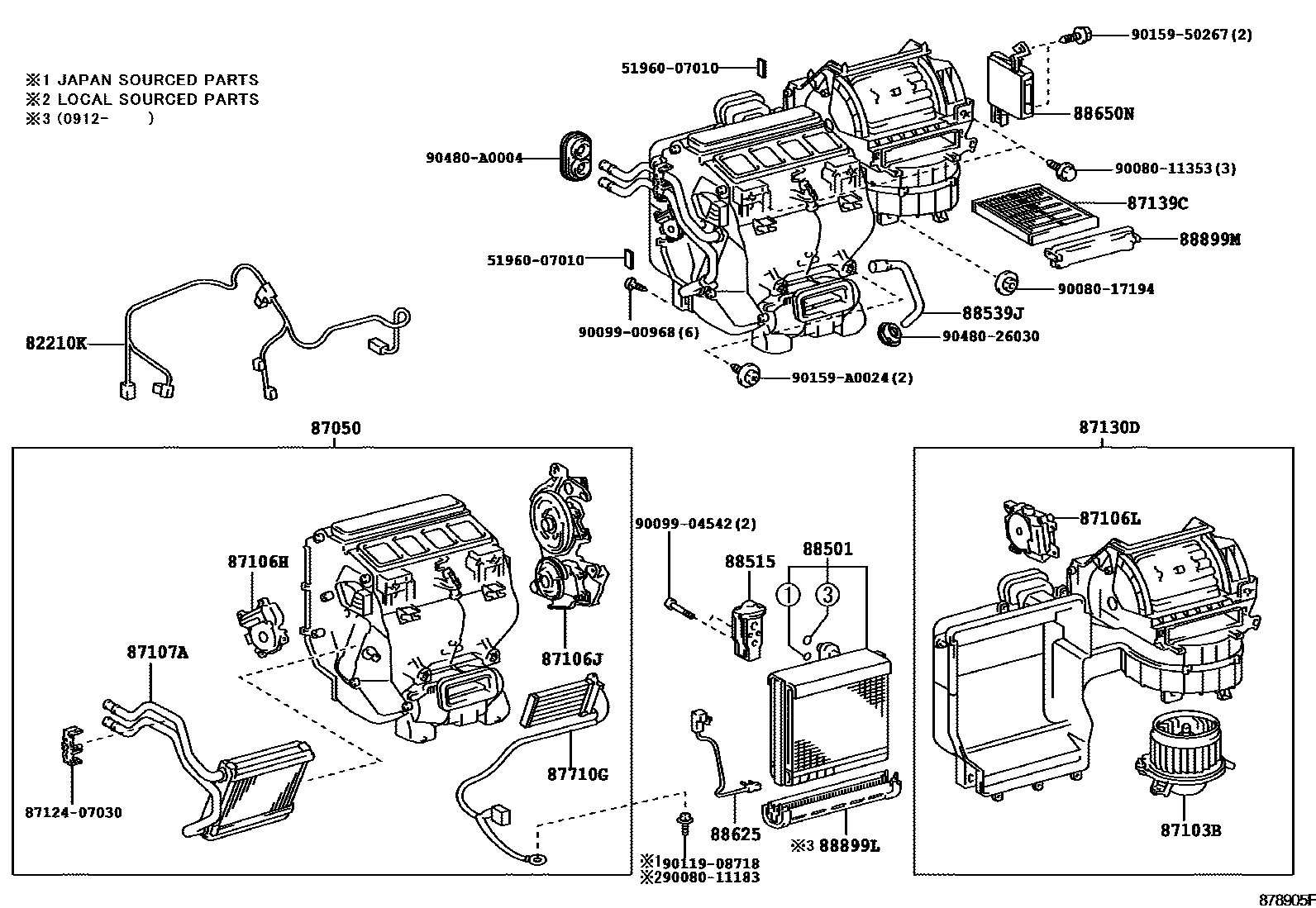

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87050RADIATOR ASSY, AIR CONDITIONER
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106JSERVO SUB-ASSY, DAMPER(FOR MODE)
87106LSERVO SUB-ASSY, DAMPER
87107AUNIT SUB-ASSY, HEATER RADIATOR
87130DBLOWER ASSY
87139CFILTER, CLEAN AIR
POLLEN FILTER
DEODORANT FILTER
87710GQUICK HEATER ASSY
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88515VALVE, COOLER EXPANSION
88539JHOSE, DRAIN COOLER
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
88899LPARTS, COOLING UNIT
88899MPLATE, COVER(FOR AIR FILTER)
5196007010HOOK ASSY, FRONT
main51960-07010
8712407030CLAMP, HEATER
main87124-07030
9008011183
main90080-11183
9008011353
main90080-11353
9008017194
main90080-17194
9009900968
main90099-00968
9009904542
main90099-04542
9011908718
main90119-08718
9015950267
main90159-50267
90159A0024
main90159-A0024
9048026030
main90480-26030
90480A0004
main90480-A0004
29 parts on this diagram · 2 diagrams in section
