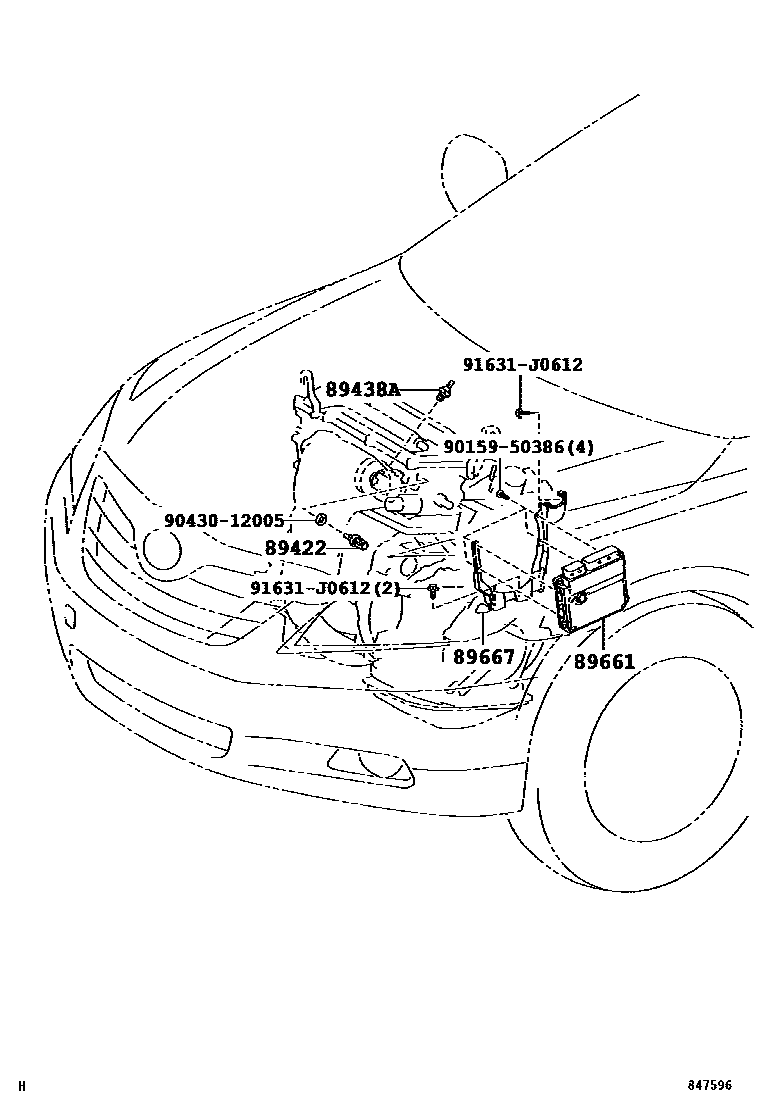

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-0D010iACV40..JPP200710-200803

(L)

main89422-33030iACV40..JPP200601-200803

(J)

main89422-33030iGSV40..JPP200601-201108

89438ASWITCH, POWER STEERING OIL PRESSURE

main89438-33010iASV40,GSV40..JPP200601-201108

89661COMPUTER, ENGINE CONTROL

main89661-33770iGSV40..JPP200601-200604

main89661-33771iGSV40..JPP200605-200707

main89661-33B70iACV40..JPP..5FC200601-200608

main89661-33B71iACV40..JPP..5FC200609-200707

main89661-33B80iACV40..JPP..5F200601-200707

main89661-33E30iACV40..JPP..5FC200707-200804

main89661-33E31iACV40..JPP..5FC200805-200901

main89661-33E40iACV40..JPP..5F200707-200806

main89661-33E41iACV40..JPP..5F200807-200901

main89661-33E60iGSV40..JPP200707-200709

main89661-33E61iGSV40..JPP200710-200901

main89661-33E90iASV40..JPP200901-200911

main89661-33E91iASV40..JPP200912-201008

main89661-33E92iASV40..JPP201009-201108

main89661-33F20iGSV40..JPP200901-200911

main89661-33F21iGSV40..JPP200912-201108

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-33140iGSV40..JPP200601-201108

main89667-33180iACV40..JPP200601-201108

9015950386

main90159-50386

9043012005

main90430-12005

91631J0612

main91631-J0612

7 parts on this diagram · 3 diagrams in section
