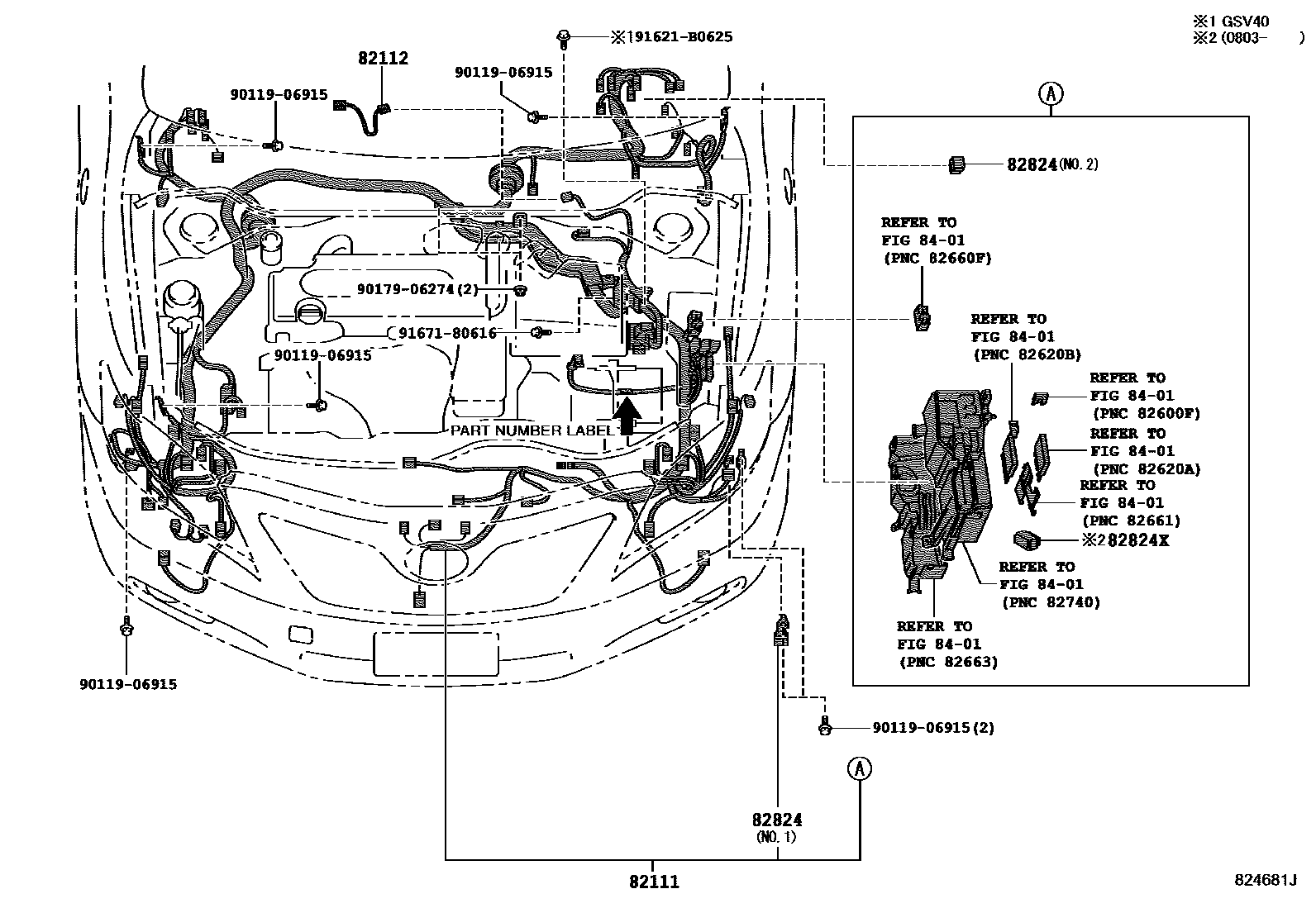

82111WIRE, ENGINE ROOM MAIN

main82111-33D20supersedes 82111-33D31i200601-200711

AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM; CALIFORNIA SPEC; CALIFORNIA SPEC&AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM; CALIFORNIA SPEC&WIRELESS DOOR LOCK-W/O; CALIFORNIA SPEC&WIRELESS DOOR LOCK-W/O&AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM; WIRELESS DOOR LOCK-W/O; WIRELESS DOOR LOCK-W/O&AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM

main82111-33D21i200712-200901

AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM; CALIFORNIA SPEC; CALIFORNIA SPEC&AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM; CALIFORNIA SPEC&WIRELESS DOOR LOCK-W/O; CALIFORNIA SPEC&WIRELESS DOOR LOCK-W/O&AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM; WIRELESS DOOR LOCK-W/O; WIRELESS DOOR LOCK-W/O&AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM

main82111-33J20i200901-201001

main82111-33J21i201001-201108

main82111-33J30i200901-201001

main82111-33J31i201001-201108

main82111-33J50i200901-201001

main82111-33J51i201001-201108

main82111-33D30supersedes 82111-33D31i200601-200711

CALIFORNIA SPEC&W(VSC); CALIFORNIA SPEC&W(VSC)&AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM; CALIFORNIA SPEC&W(VSC)&WIRELESS DOOR LOCK-W/O; CALIFORNIA SPEC&W(VSC)&WIRELESS DOOR LOCK-W/O&AUDIO-6CD CHANGER, 8SPEAKER, PREMIUMSYSTEM; W(VSC); W(VSC)&AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM; W(VSC)&WIRELESS DOOR LOCK-W/O; W(VSC)&WIRELESS DOOR LOCK-W/O&AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM

main82111-33D31i200712-200901

CALIFORNIA SPEC&W(VSC); CALIFORNIA SPEC&W(VSC)&AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM; CALIFORNIA SPEC&W(VSC)&WIRELESS DOOR LOCK-W/O; CALIFORNIA SPEC&W(VSC)&WIRELESS DOOR LOCK-W/O&AUDIO-6CD CHANGER, 8SPEAKER, PREMIUMSYSTEM; W(VSC); W(VSC)&AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM; W(VSC)&WIRELESS DOOR LOCK-W/O; W(VSC)&WIRELESS DOOR LOCK-W/O&AUDIO-6CD CHANGER, 8SPEAKER, PREMIUM SYSTEM

main82111-33D50supersedes 82111-33D51i200601-200711

W(VSC)

main82111-33D51i200712-200901

W(VSC)

main82111-33D60supersedes 82111-33D71i200601-200711

STARTING SYSTEM-PUSH BUTTON

main82111-33D61supersedes 82111-33D71i200712-200901

STARTING SYSTEM-PUSH BUTTON

main82111-33D70supersedes 82111-33D71i200601-200711

W(VSC)&STARTING SYSTEM-PUSH BUTTON

main82111-33D71i200712-200901

W(VSC)&STARTING SYSTEM-PUSH BUTTON

main82111-33J60i200901-201001

STARTING SYSTEM-PUSH BUTTON

main82111-33J61i201001-201108

STARTING SYSTEM-PUSH BUTTON

82112WIRE, ENGINE ROOM, NO.2

main82112-33060i200601-200901

82824CONNECTOR, WIRING HARNESS

main82824-48020i200901-201108

NO.1

main82824-52280i200901-201108

NO.2

82824XCONNECTOR, WIRING HARNESS

main82824-33300i200803-200901

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906915

main90119-06915

9017906274

main90179-06274

91621B0625

main91621-B0625

9167180616

main91671-80616

WIRING & CLAMP
