51963FHOOK, TRANSPORT

main51963-33020i200601-200901

51964FHOOK, TRANSPORT, LH

main51964-33010i200601-200901

5701HOLE PLUG

→ Go to FIG 57-01

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-33010i200601-200901

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-33010i200601-200901

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-33020i200601-200901

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-33020i200601-200901

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57027-33901i200601-200901

main57027-33902i201012-201108

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57028-33901i200601-200901

main57028-33902i201012-201108

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-33051i200601-200901

57111MEMBER, FRONT SIDE, RH

main57111-33020i200601-200901

main57111-33021i201012-201108

57112MEMBER, FRONT SIDE, LH

main57112-33030i200601-200901

main57112-33031i201012-201108

57113EXTENSION, FRONT SIDE MEMBER, RH

main57107-33031i200601-200609

main57107-33032i200610-200901

57114EXTENSION, FRONT SIDE MEMBER, LH

main57108-33031i200601-200609

main57108-33032i200610-200901

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-33030i200601-200901

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-33020i200601-200901

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57117-33050i200601-200901

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-33050i200601-200901

57157AREINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH

main57157-33020i200601-200901

57158REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH

main57158-33020i200601-200901

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-33010i200601-200901

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-33010i200601-200901

57193CPLATE, FRONT SIDE MEMBER, NO.8 RH

main57193-33030i200601-200901

57193DPLATE, FRONT SIDE MEMBER, NO.8 LH

main57194-33030i200601-200901

57197BOX, TORQUE, FRONT RH

main57197-33040i200601-200901

57198BOX, TORQUE, FRONT LH

main57198-33040i200601-200901

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-10040i200601-200901

57249ABRACKET, FREXIBLE HOUSE, NO.1, LH

main57249-10040i200601-200901

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-33110i200601-200901

main57401-33111i201008-201108

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-33110i200601-200901

main57402-33111i201008-201108

57419DREINFORCEMENT, FRONT FLOOR UNDER, REAR RH

main57419-33050i200601-200901

57429DREINFORCEMENT, FRONT FLOOR UNDER, REAR LH

main57429-33020i200601-200901

57451BMEMBER, FRONT FLOOR CROSS, RH

main57451-33060i200601-200901

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-33030i200601-200807

main57452-33031i200808-200901

57453DMEMBER, FRONT FLOOR CROSS SIDE, RH

main57453-33050i200601-200901

57454CMEMBER, FRONT FLOOR CROSS SIDE, LH

main57454-33050i200601-200807

main57454-33051i200808-200901

57455BRACKET, FRONT SEAT MOUNTING, OUTSIDE RH

main57455-33030i200601-200901

57456BRACKET, FRONT SEAT MOUNTING, OUTSIDE LH

main57456-33030i200601-200901

57475EPLATE, FRONT FLOOR CROSSMEMBER, RH

main57475-33010i200601-200901

57476CPLATE, FRONT FLOOR CROSSMEMBER, LH

main57476-33010i200601-200901

57513AREINFORCEMENT, FRONT FLOOR, LH

main57513-33020i200601-200901

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-33100i200601-200901

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-33100i200601-200901

main57606-33140i201101-201108

57611AMEMBER, REAR FLOOR SIDE, RH

main57611-33901i200601-200901

57612AMEMBER, REAR FLOOR SIDE, LH

main57612-33901i200601-200901

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-33911i200601-200901

main57615-33918i201101-201108

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-33908i200601-200901

57654CMEMBER, REAR FLOOR CROSS, NO.3

main57654-33020i200601-200901

58105EPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-33020i200601-200901

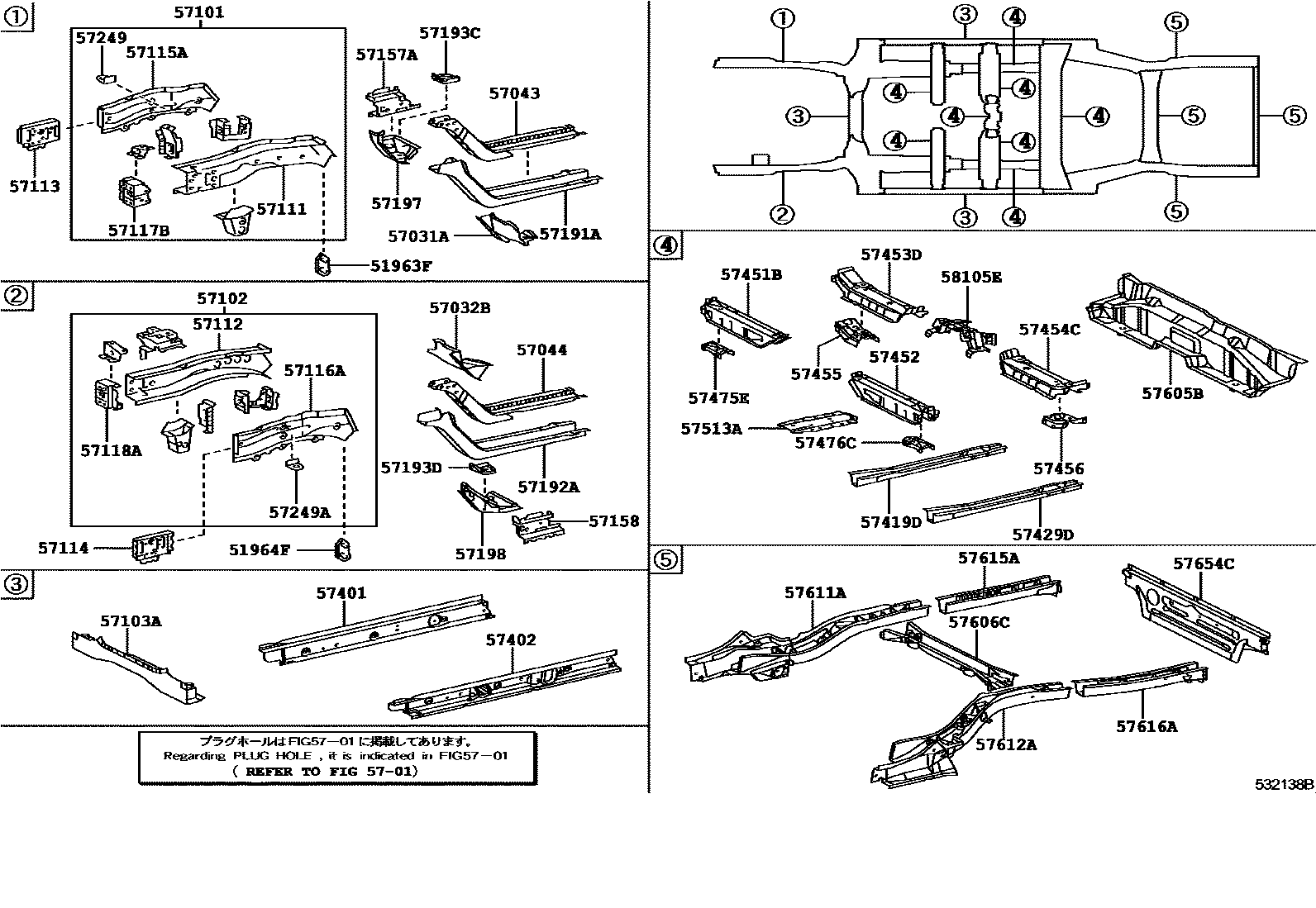

FLOOR SIDE MEMBER
