ARMREST & VISOR

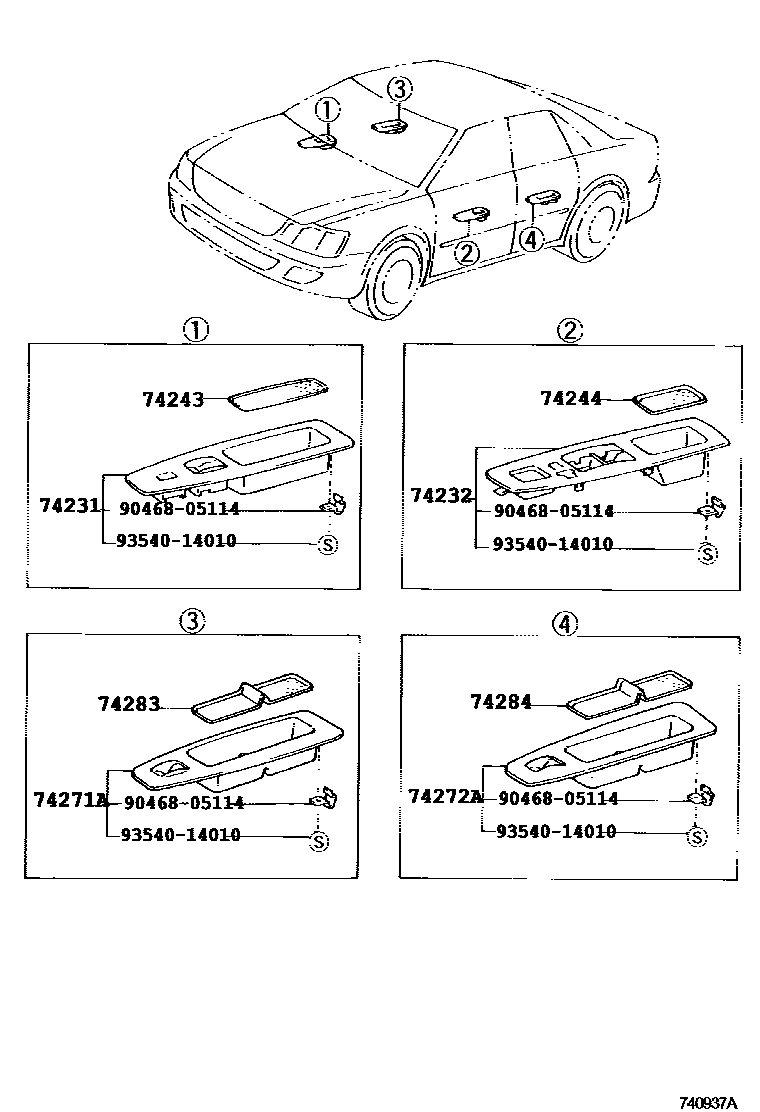

Parts diagram

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-33220-B0i200107-200406

STONE,TRIM1#

main74231-33220-E0i200107-200406

FAWN,TRIM4#

main74231-33230i200406

main74231-33270i200107-200312

METALLIC

main74231-33271i200312-200406

METALLIC

main74231-33310i200406

main74231-33340i200406

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-33180-B0i200107-200406

STONE,TRIM1#

main74232-33180-E0i200107-200406

FAWN,TRIM4#

main74232-33190i200406

main74232-33220i200107-200312

METALLIC

main74232-33221i200312-200406

METALLIC

main74232-33250i200406

main74232-33280i200406

74243COVER, FRONT DOOR ARMREST BASE, LOWER RH

main74244-33010i200107-200406

74244COVER, FRONT DOOR ARMREST BASE, LOWER LH

main74243-33010i200406-200601

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-33090-B0i200107-200406

STONE,TRIM1#

main74271-33090-E0i200107-200406

FAWN,TRIM4#

main74271-33100i200107-200406

WOOD GRAIN

main74271-33110i200107-200312

METALLIC

main74271-33111i200312-200406

METALLIC

main74271-33160i200406

main74271-33190i200406

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-33090-B0i200107-200406

STONE,TRIM1#

main74272-33090-E0i200107-200406

FAWN,TRIM4#

main74272-33100i200406

main74272-33110i200107-200312

METALLIC

main74272-33111i200312-200406

METALLIC

main74272-33160i200406

main74272-33190i200406

74283COVER, REAR DOOR ARMREST BASE, LOWER RH

main74283-33010i200107-200406

74284COVER, REAR DOOR ARMREST BASE, LOWER LH

main74284-33010i200406

9046805114

main90468-05114

9354014010

main93540-14010

10 parts on this diagram · 2 diagrams in section
