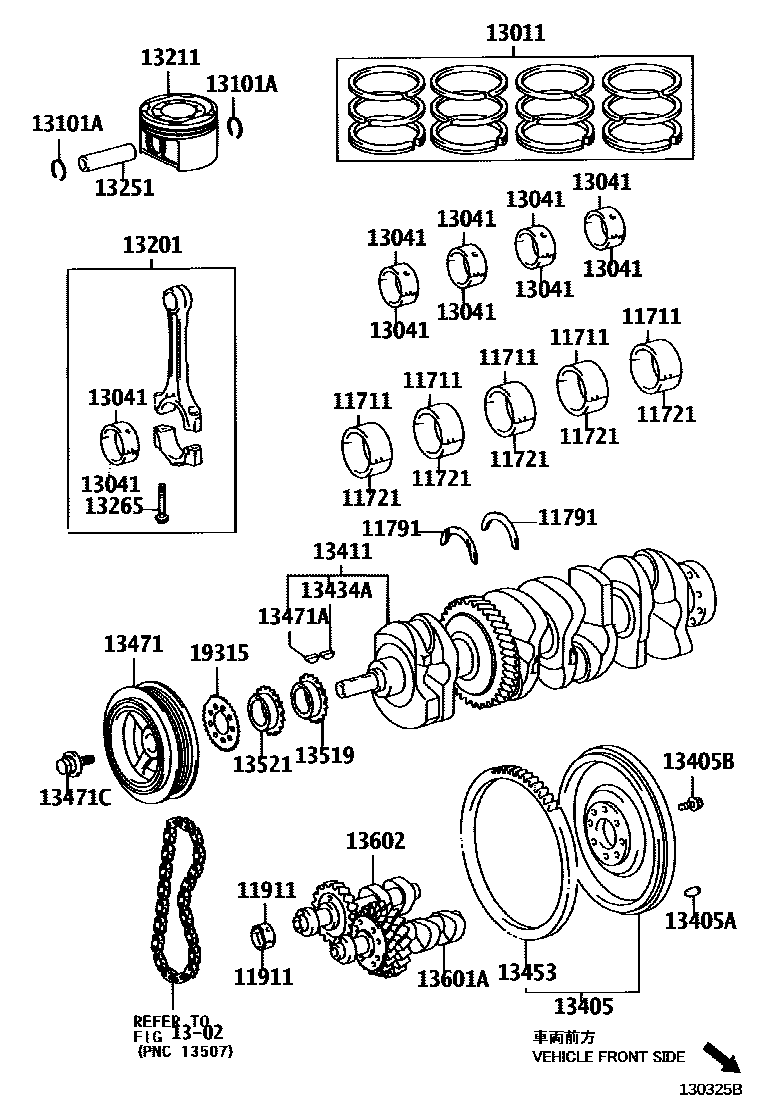

11711BEARING, CRANKSHAFT

main11071-0A010-01×2i200107-200301

MARK 1,NO.2,(L):REFER R/M

main11071-0A010-02×2i200107-200301

MARK 2,NO.2,(L):REFER R/M

main11071-0A010-03×2i200107-200301

MARK 3,NO.2,(L):REFER R/M

main11071-0A010-04×2i200107-200305

MARK 4,NO.2,(L):REFER R/M

main11071-0A010-05×2i200107-200305

MARK 5,NO.2,(L):REFER R/M

main11071-0A010-06×2i200107-200301

MARK 6,NO.2,(L):REFER R/M

main11071-0A010-07×2i200107-200301

MARK 7,NO.2,(L):REFER R/M

main11071-0A020-01×2i200305-200309

MARK 1,NO.2,(L):REFER R/M

main11071-0A020-02×2i200305-200309

MARK 2,NO.2,(L):REFER R/M

main11071-0A020-03×2i200305-200309

MARK 3,NO.2,(L):REFER R/M

main11071-0A020-04×2i200305-200309

MARK 4,NO.2,(L):REFER R/M

main11071-0A020-05×2i200305-200307

MARK 5,NO.2,(L):REFER R/M

main11071-0A020-06×2i200305-200309

MARK 6,NO.2,(L):REFER R/M

main11071-0A020-07×2i200305-200309

MARK 7,NO.2,(L):REFER R/M

main11071-20020-01×2i200406-200412

MARK 1,NO.2,REFER R/M

main11071-20020-02×2i200301-200307

MARK 2,NO.2,(J):REFER R/M

main11071-20020-03×2i200107-200301

MARK 3,NO.2,(J):REFER R/M

main11071-20020-04×2i200301-200307

MARK 4,NO.2,(J):REFER R/M

main11071-20020-05×2i200406-200412

MARK 5,NO.2,REFER R/M

main11071-20020-06×2i200107-200301

MARK 6,NO.2,(J):REFER R/M

main11071-20020-07×2i200107-200301

MARK 7,NO.2,(J):REFER R/M

main11071-20021-01×2i200412

MARK1,NO.2,REFER R/M

main11071-20021-02×2i200412

MARK2,NO.2,REFER R/M

main11071-20021-03×2i200412

MARK3,NO.2,REFER R/M

main11071-20021-04×2i200412

MARK4,NO.2,REFER R/M

main11071-20021-05×2i200412

MARK5,NO.2,REFER R/M

main11071-20021-06×2i200412

MARK6,NO.2,REFER R/M

main11071-20021-07×2i200412

MARK7,NO.2,REFER R/M

main11701-0A010-01×2i200107-200301

MARK 1,NO.1,(L):REFER R/M

main11701-0A010-02×2i200107-200305

MARK 2,NO.1,(L):REFER R/M

main11701-0A010-03×2i200107-200301

MARK 3,NO.1,(L):REFER R/M

main11701-0A010-04×2i200107-200305

MARK 4,NO.1,(L):REFER R/M

main11701-0A010-05×2i200107-200301

MARK 5,NO.1,(L):REFER R/M

main11701-0A010-06×2i200107-200301

MARK 6,NO.1,(L):REFER R/M

main11701-0A010-07×2i200107-200305

MARK 7,NO.1,(L):REFER R/M

main11701-0A020-01×2i200305-200307

MARK 1,NO.1,(L):REFER R/M

main11701-0A020-02×2i200305-200309

MARK 2,NO.1,(L):REFER R/M

main11701-0A020-03×2i200305-200309

MARK 3,NO.1,(L):REFER R/M

main11701-0A020-04×2i200305-200309

MARK 4,NO.1,(L):REFER R/M

main11701-0A020-05×2i200305-200307

MARK 5,NO.1,(L):REFER R/M

main11701-0A020-06×2i200305-200307

MARK 6,NO.1,(L):REFER R/M

main11701-0A020-07×2i200305-200307

MARK 7,NO.1,(L):REFER R/M

main11701-20020-01×2i200301-200307

MARK 1,NO.1,REFER R/M

main11701-20020-02×2i200301-200406

MARK 2,NO.1,REFER R/M

main11701-20020-03×2i200107-200309

MARK 3,NO.1,(J):REFER R/M

main11701-20020-04×2i200406-200412

MARK 4,NO.1,REFER R/M

main11701-20020-05×2i200301-200406

MARK 5,NO.1,REFER R/M

main11701-20020-06×2i200107-200309

MARK 6,NO.1,(J):REFER R/M

main11701-20020-07×2i200107-200301

MARK 7,NO.1,(J):REFER R/M

main11701-20030-01×2i200412

MARK1,NO.1,REFER R/M

main11701-20030-02×2i200412

MARK2,NO.1,REFER R/M

main11701-20030-03×2i200412

MARK3,NO.1,REFER R/M

main11701-20030-04×2i200412

MARK4,NO.1,REFER R/M

main11701-20030-05×2i200412

MARK5,NO.1,REFER R/M

main11701-20030-06×2i200412

MARK6,NO.1,REFER R/M

main11701-20030-07×2i200412

MARK7,NO.1,REFER R/M

main11711-0H010-01×5i200107-200406

MARK 1,(L):REFER R/M

main11711-0H010-02×5i200107-200406

MARK 2,(L):REFER R/M

main11711-0H010-03×5i200107-200406

MARK 3,(L):REFER R/M

main11711-0H010-04×5i200107-200406

MARK 4,(L):REFER R/M

main11711-0H030-01×5i200406

*108,MARK1,(L):REFER R/M

main11711-0H030-02×5i200406

*108,MARK2,(L):REFER R/M

main11711-0H030-03×5i200406

*108,MARK3,(L):REFER R/M

main11711-0H030-04×5i200406

*108,MARK4,(L):REFER R/M

main11711-28010-01×5i200107-200406

MARK 1,(J):REFER R/M; MARK 1,REFER REPAIR MANUAL

main11711-28010-02×5i200406-200511

*107,MARK 2,REFER REPAIR MANUAL

main11711-28010-03×5i200107-200406

MARK 3,(J):REFER R/M; MARK 3,REFER REPAIR MANUAL

main11711-28010-04×5i200406-200511

*107,MARK 4,REFER REPAIR MANUAL

main11711-28020-01×5i200406

*108,MARK1,(J):REFER R/M

main11711-28020-02×5i200406

*108,MARK2,(J):REFER R/M

main11711-28020-03×5i200511

*107,MARK 3,REFER REPAIR MANUAL

main11711-28020-04×5i200511

*107,MARK 4,REFER REPAIR MANUAL

11721BEARING, CRANKSHAFT, NO.2

main11721-0H010-01×5i200107-200406

MARK 1,(L):REFER R/M

main11721-0H010-02×5i200107-200406

MARK 2,(L):REFER R/M

main11721-0H010-03×5i200107-200406

MARK 3,(L):REFER R/M

main11721-0H010-04×5i200107-200406

MARK 4,(L):REFER R/M

main11721-0H030-01×5i200406

*108,MARK1,(L):REFER R/M

main11721-0H030-02×5i200406

*108,MARK2,(L):REFER R/M

main11721-0H030-03×5i200406

*108,MARK3,(L):REFER R/M

main11721-0H030-04×5i200406

*108,MARK4,(L):REFER R/M

main11721-28010-01×5i200107-200406

MARK 1,(J):REFER R/M; MARK 1,REFER REPAIR MANUAL

main11721-28010-02×5i200107-200406

MARK 2,(J):REFER R/M; MARK 2,REFER REPAIR MANUAL

main11721-28010-03×5i200107-200406

MARK 3,(J):REFER R/M; MARK 3,REFER REPAIR MANUAL

main11721-28010-04×5i200107-200406

MARK 4,(J):REFER R/M; MARK 4,REFER REPAIR MANUAL

main11721-28020-01×5i200406

*108,MARK1,(J):REFER R/M

main11721-28020-02×5i200406

*108,MARK2,(J):REFER R/M

main11721-28020-03×5i200511

*107,MARK 3,REFER REPAIR MANUAL

main11721-28020-04×5i200406

*108,MARK4,(J):REFER R/M

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-0H010×2i200107-200406

STD,(L)

main11791-28020×2i200107-200406

STD; STD,(J)

11911BEARING, BALANCESHAFT, NO.1

main11911-28010-01×8i200107-200406

MARK 1,REFER REPAIR MANUAL

main11911-28010-02×8i200107-200406

MARK 2,REFER REPAIR MANUAL

main11911-28010-03×8i200107-200406

MARK 3,REFER REPAIR MANUAL

13011RING SET, PISTON

main13011-0A020i200107-200309

STD,(L)

main13011-0A030i200307-200406

STD

main13011-0H010i200406

STD,*108

main13011-20023i200107-200301

STD

main13011-28101i200107-200208

STD,*107

main13011-28102i200406

STD,*107

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

13041BEARING, CONNECTING ROD

main13041-0A010-01×6i200107-200309

MARK 1,(L):REFER R/M

main13041-0A010-02×6i200107-200309

MARK 2,(L):REFER R/M

main13041-0A010-03×6i200107-200301

MARK 3,(L):REFER R/M

main13041-0A010-04×6i200107-200307

MARK 4,(L):REFER R/M

main13041-20010-01×6i200301-200406

MARK 1,REFER REPAIR MANUAL

main13041-20010-02×6i200107-200307

MARK 2,(J):REFER R/M

main13041-20010-03×6i200406-200412

MARK 3,REFER REPAIR MANUAL

main13041-20010-04×6i200107-200307

MARK 4,(J):REFER R/M

main13041-20010-05×6i200406-200412

MARK 5,REFER REPAIR MANUAL

main13041-20011-01×6i200412

MARK1,REFER REPAIR MANUAL

main13041-20011-02×6i200412

MARK2,REFER REPAIR MANUAL

main13041-20011-03×6i200412

MARK3,REFER REPAIR MANUAL

main13041-20011-04×6i200412

MARK4,REFER REPAIR MANUAL

main13281-0H010-01×8i200107-200406

MARK 1,(L):REFER R/M

main13281-0H010-02×8i200107-200406

MARK 2,(L):REFER R/M

main13281-0H010-03×8i200107-200406

MARK 3,(L):REFER R/M

main13281-0H030-01×8i200406

*108,MARK1,(L):REFER R/M

main13281-0H030-02×8i200406

*108,MARK2,(L):REFER R/M

main13281-0H030-03×8i200406

*108,MARK3,(L):REFER R/M

main13281-28010-01×8i200406

*107,MARK 1,REFER REPAIR MANUAL; *108,MARK 1,(J):REFER R/M

main13281-28010-02×8i200406

*107,MARK 2,REFER REPAIR MANUAL; *108,MARK 2,(J):REFER R/M

main13281-28010-03×8i200406

*107,MARK 3,REFER REPAIR MANUAL; *108,MARK 3,(J):REFER R/M

13101PISTON SUB-ASSY, W/PIN

main13101-0A020×3i200301-200309

STD,ENGINE NO.=5XXXXXX-9XXXXXX,RH

main13101-20040×3i200301-200307

STD,ENGINE NO.=0XXXXXX-4XXXXXX,RH

main13101-20041×3i200406-200601

STD,RH

main13101-20050×6i200406-200601

STD

main13301-0A020×3i200301-200307

STD,ENGINE NO.=5XXXXXX-9XXXXXX,LH

main13301-20030×3i200301-200307

STD,ENGINE NO.=0XXXXXX-4XXXXXX,LH

main13301-20031×3i200307-200406

STD,ENGINE NO.=0XXXXXX-4XXXXXX,LH

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-22025×12i200107-200301

13201ROD SUB-ASSY, CONNECTING

main13201-09070×6i200107-200206

ENGINE NO.=5XXXXXX-9XXXXXX,(L)

main13201-09160-A0×4i200107-200309

MARK A,(L):REFER R/M

main13201-09160-B0×4i200107-200309

MARK B,(L):REFER R/M

main13201-09160-C0×4i200107-200309

MARK C,(L):REFER R/M

main13201-09180×6i200307-200309

(L):REFER R/M

main13201-09190×6i200206-200301

ENGINE NO.=5XXXXXX-9XXXXXX,(L)

main13201-29015×6i200107-200206

ENGINE NO.=5XXXXXX-9XXXXXX,(J)

main13201-29125-A0×4i200107-200309

MARK A,(J):REFER R/M

main13201-29125-B0×4i200107-200309

MARK B,(J):REFER R/M

main13201-29125-C0×4i200107-200309

MARK C,(J):REFER R/M

main13201-29155×6i200206-200302

ENGINE NO.=0XXXXXX-4XXXXXX

main13201-29165×6i200302-200309

(J):REFER R/M

main13201-29525×6i200406-200412

main13201-29685-A0×4i200309-200406

MARK A,REFER REPAIR MANUAL

main13201-29685-B0×4i200309-200406

MARK B,REFER REPAIR MANUAL

main13201-29685-C0×4i200309-200406

MARK C,REFER REPAIR MANUAL

13211PISTON

main13211-0H010-A0×4i200406

MARK A,*108:REFER R/M

main13211-0H010-B0×4i200406

MARK B,*108:REFER R/M

main13211-0H010-C0×4i200107-200406

MARK C,*108:REFER R/M

main13211-28031-A0×4i200107-200406

MARK A,*107:REFER R/M

main13211-28031-B0×4i200406

MARK B,*107:REFER R/M

main13211-28031-C0×4i200406

MARK C,*107:REFER R/M

13251PIN, PISTON

main13251-0H010-A0×4i200107-200406

MARK A,(L)

main13251-0H010-B0×4i200107-200406

MARK B,(L)

main13251-0H010-C0×4i200107-200406

MARK C,(L)

main13251-28010-A0×4i200406-200601

MARK A,(J):REFER R/M; MARK A,REFER REPAIR MANUAL

main13251-28010-B0×4i200406-200601

MARK B,(J):REFER R/M; MARK B,REFER REPAIR MANUAL

main13251-28010-C0×4i200107-200406

MARK C; MARK C,(J)

13265BOLT, CONNECTING ROD

main13265-28010×12i200406

main13265-50020×2i200107-200206

13405FLYWHEEL SUB-ASSY

main13405-28020i200406

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054×3i200406

L=23,OD=8

13405BBOLT, FLYWHEEL SETTING

main90105-12322×8i200406

13411CRANKSHAFT

main13401-0A020i200107-200301

(L)

main13401-0H010i200406-200601

*108,(L)

main13401-0H900i200107-200211

(L)

main13401-20030i200406

main13401-20040i200406

main13401-28010i200112-200406

(J)

main13401-28900i200107-200112

(J)

13434AKEY(FOR OIL PUMP DRIVE SPLINE)

main95161-30416i200112-200406

13453GEAR, FLYWHEEL RING

main13453-74011i200107-200406

13471PULLEY, CRANKSHAFT

main13408-0A010i200301-200307

(L)

main13408-20010i200301-200406

(J)

main13470-0H010i200406

(L)

main13470-28020i200107-200406

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main95161-30416i200112-200406

main95161-30516×2i200107-200301

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90080-11419i200406

(L)

main90119-14106i200406

(J)

main90119-16004i200107-200406

13519GEAR, OIL PUMP DRIVE

main13519-0H010i200107-200406

(L)

main13519-28010i200406

(J)

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-0H010i200406

(L)

main13521-28010i200107-200406

main13521-28030i200601

(J)

13601ABALANCESHAFT SUB-ASSY, NO.1

main13601-0H010i200406

(L)

main13601-28010i200107-200306

main13601-28011i200505-200509

*107

main13601-28030i200509

*107

13602BALANCESHAFT SUB-ASSY, NO.2

main13602-0H010i200406

(L)

main13602-28010i200306-200406

(J)

main13602-28011i200505-200509

*107

main13602-28030i200509

*107

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-0H010i200406

(L)

main19315-28010i200406

(J)

CRANKSHAFT & PISTON
