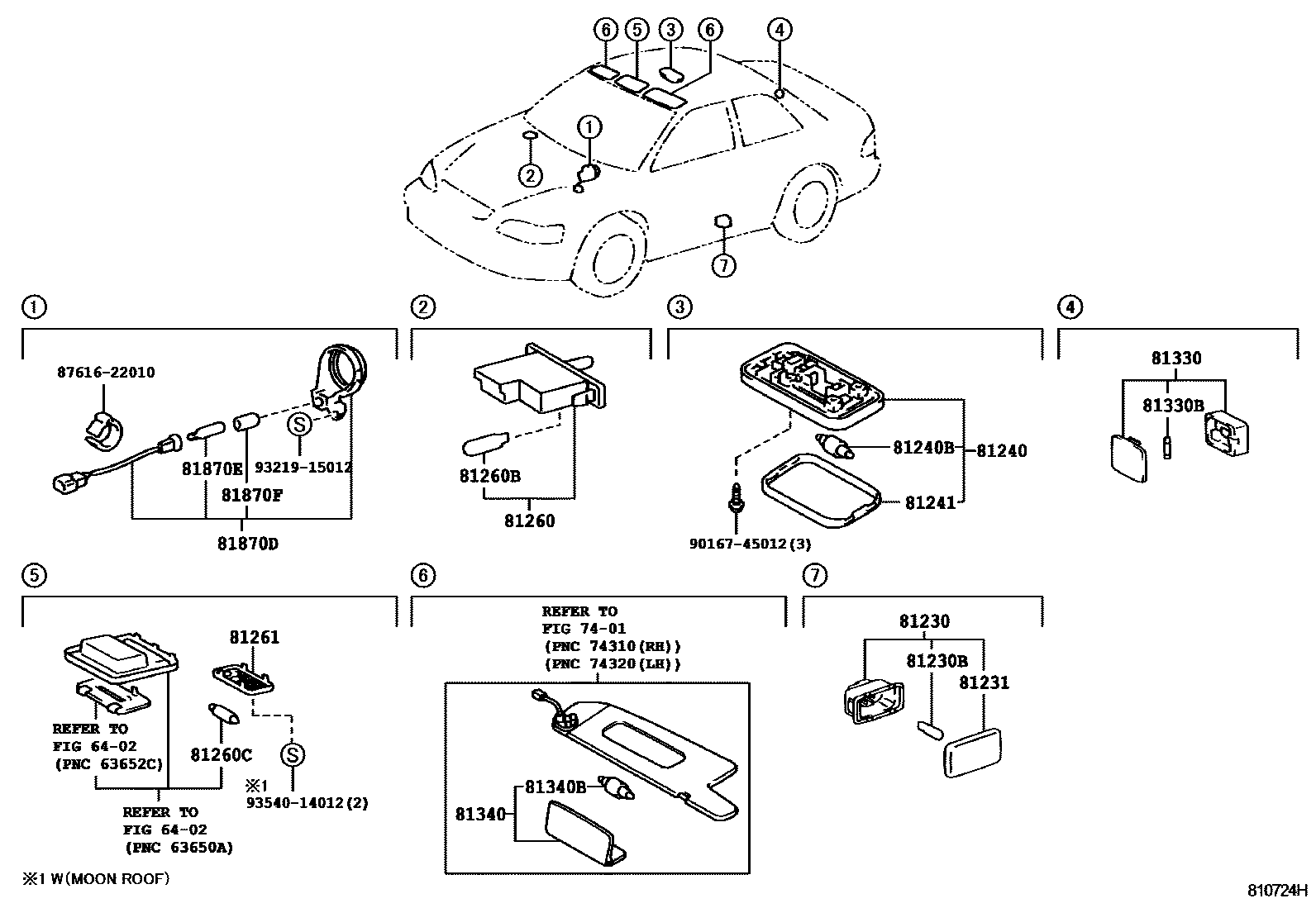

INTERIOR LAMP

6402ROOF HEADLINING & SILENCER PAD

→ Go to FIG 64-02

7401ARMREST & VISOR

→ Go to FIG 74-01

81230LAMP ASSY, COURTESY

main81230-30140×2iMCV20199608

81230BBULB(FOR COURTESY LAMP)

main90981-11020×2iMCV20199608

12V 3.8W

81231LENS, COURTESY LAMP

main81231-50010×2iMCV20199608

81240LAMP ASSY, ROOM, NO.1

main81240-32031-A1iMCV20199608-200107

IVORY,TRIM0#

main81240-32031-B3iMCV20199608-200107

BLUE GRAY,TRIM2#

main81240-32031-G1iMCV20199608-200107

SAGE,TRIM6#

81240BBULB, ROOM LAMP, NO.1

main90981-14004iMCV20199608

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-32031iMCV20199608

81260LAMP ASSY, GLOVE BOX

main81260-33010iMCV20199608

81260BBULB(FOR GLOVE BOX)

main90981-11018iMCV20199608

12V 1.2W W/O SOCKET

81260CBULB(FOR MAP LAMP)

main90084-98049iMCV20199608

12V 8W

81261LENS AND COVER, MAP LAMP

main81231-0W010iMCV20199805

main81231-AA010iMCV20199608

W(MOON ROOF)

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-33010iMCV20199608

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-14009iMCV20199608

12V 3W

81340LAMP ASSY, VANITY

main81340-33090-A0iMCV20..USA199908-200008

BRAZIL SPEC,IVORY,TRIM0#,LH

main81340-33090-B1iMCV20..USA199908-200008

BRAZIL SPEC,BLUE GRAY,TRIM2#,LH

main81340-33090-G0iMCV20..USA199908-200008

BRAZIL SPEC,SAGE,TRIM6#,LH

main81340-33130-A0iMCV20199908-200107

IVORY,TRIM0#,LH

main81340-33130-B1iMCV20199908-200107

BLUE GRAY,TRIM2#,LH

main81340-33130-G0iMCV20199908-200107

SAGE,TRIM6#,LH

main81350-33040-A0iMCV20199608-199908

IVORY,TRIM0#,RH

main81350-33040-B1iMCV20..USA199908-200008

BRAZIL SPEC,BLUE GRAY,TRIM2#,RH

main81350-33040-G0iMCV20..USA199908-200008

BRAZIL SPEC,SAGE,TRIM6#,RH

main81350-33050-A0iMCV20199908-200107

IVORY,TRIM0#,RH

main81350-33050-B1iMCV20199908-200107

BLUE GRAY,TRIM2#,RH

main81350-33050-G0iMCV20199908-200107

SAGE,TRIM6#,RH

81340BBULB (FOR VANITY LAMP)

main90084-98013×4iMCV20199808

W(GARAGE DOOR OPENER)

main90981-14003×2iMCV20199608

12V 1.5W

81870DLAMP ASSY, KEY CYLINDER

main81870-33030iMCV20199608-199708

main81870-33050iMCV20199708-199908

main81870-41020iMCV20199908

81870EBULB, KEY CYLINDER LAMP

main90981-11014iMCV20199608

14V 1.4W

81870FCAP, KEY CYLINDER LAMP BULB

main84998-10070iMCV20199608

8761622010CLAMP, COOLING UNIT CASE

main87616-22010

9016745012

main90167-45012

9321915012

main93219-15012

9354014012

main93540-14012

23 parts on this diagram · 1 diagram in section
