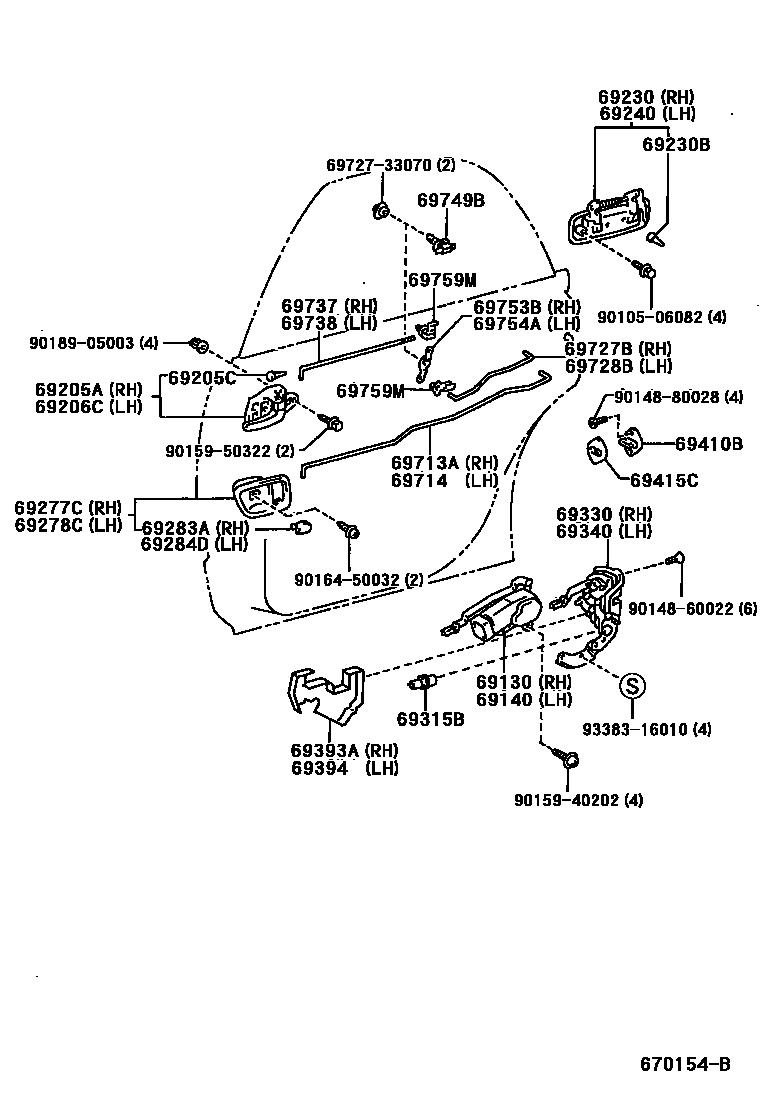

REAR DOOR LOCK & HANDLE

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-33030i199608

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-33030i199608

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-22080-A0i200101-200103

COACH EDITION,IVORY,TRIM03

main69205-22080-C0i200101-200103

COACH EDITION,BLACK,TRIM23

main69205-30120-A0i199608-200107

IVORY,TRIM0#

main69205-30120-C0i199608-200107

BLACK,TRIM2#

main69205-30120-G0i199608-200107

SAGE,TRIM6#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04014×2i199608

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-22080-A0i200101-200103

COACH EDITION,IVORY,TRIM03

main69206-22080-C0i200101-200103

COACH EDITION,BLACK,TRIM23

main69206-30120-A0i199608-200107

IVORY,TRIM0#

main69206-30120-C0i199608-200107

BLACK,TRIM2#

main69206-30120-G0i199608-200107

SAGE,TRIM6#

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-33040-A0i199608-200107

SU.WHITE PM,051

main69230-33040-A1i199902-199904

COACH EDITION FOR USA & HAWAII,WHITE PM.,057

main69230-33040-A2i200001-200007

LEXUS 10TH ANNIVERSARY EDITION(USA/HAWAII/P.RICO/CANADA),WHITE PEARL CL.SH.,062

main69230-33040-B0i199608-200107

GRAY M.M.,1B2

main69230-33040-B2i199908-200107

SILVER ME.,1C0

main69230-33040-B3i199908-200107

DK.GRAY M.M.,1C6

main69230-33040-C0i199608-200107

BLACK,202

main69230-33040-D0i199608-199808

MAGENTA MC.,3L3

main69230-33040-D1i199808-200107

DK.RED MC.,3N6

main69230-33040-E0i199608-199908

FLAXEN MM,4M7

main69230-33040-E1i199608-200107

BEIGE ME.,4M9

main69230-33040-E2i199902-199904

COACH EDITION FOR USA & HAWAII,BEIGE SF.,4P2

main69230-33040-G0i199608-199808

DK.GREEN M.M.,6P2

main69230-33040-G2i199808-199908

GREEN MC.,6R1

main69230-33040-G3i199908-200107

GRAYISH GREEN M.M.OP,6R6

main69230-33040-J0i199608-199908

DK.BLUE M.M.,8L3

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04018×4i199608

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-33040-A0i199608-200107

SU.WHITE PM,051

main69240-33040-A1i199902-199904

COACH EDITION FOR USA & HAWAII,WHITE PM.,057

main69240-33040-A2i200001-200007

LEXUS 10TH ANNIVERSARY EDITION(USA/HAWAII/P.RICO/CANADA),WHITE PEARL CL.SH.,062

main69240-33040-B0i199608-200107

GRAY M.M.,1B2

main69240-33040-B2i199908-200107

SILVER ME.,1C0

main69240-33040-B3i199908-200107

DK.GRAY M.M.,1C6

main69240-33040-C0i199608-200107

BLACK,202

main69240-33040-D0i199608-199808

MAGENTA MC.,3L3

main69240-33040-D1i199808-200107

DK.RED MC.,3N6

main69240-33040-E0i199608-199908

FLAXEN MM,4M7

main69240-33040-E1i199608-200107

BEIGE ME.,4M9

main69240-33040-E2i200001-200007

LEXUS 10TH ANNIVERSARY EDITION(USA/HAWAII/P.RICO/CANADA),BEIGE SF,4P2

main69240-33040-G0i199608-199808

DK.GREEN M.M.,6P2

main69240-33040-G2i199808-199908

GREEN MC.,6R1

main69240-33040-G3i199908-200107

GRAYISH GREEN M.M.OP,6R6

main69240-33040-J0i199608-199908

DK.BLUE M.M.,8L3

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69277-33030-A0i199608-200107

IVORY,TRIM0#

main69277-33030-C0i199608-200107

BLACK,TRIM2#

main69277-33030-G1i199608-200107

SAGE,TRIM6#

main69277-47010-A0i200101-200103

COACH EDITION,IVORY,TRIM03

main69277-47010-C0i200101-200103

COACH EDITION,BLACK,TRIM23

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69278-33030-A0i199608-200107

IVORY,TRIM0#

main69278-33030-C0i199608-200107

BLACK,TRIM2#

main69278-33030-G1i199608-200107

SAGE,TRIM6#

main69278-47010-A0i200101-200103

COACH EDITION,IVORY,TRIM03

main69278-47010-C0i200101-200103

COACH EDITION,BLACK,TRIM23

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-30040-A0i199608-200107

IVORY,TRIM0#

main69283-30040-C0i199608-200107

BLACK,TRIM2#

main69283-30040-G1i199608-200107

SAGE,TRIM6#

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-30040-A0i199608-200107

IVORY,TRIM0#

main69284-30040-C0i199608-200107

BLACK,TRIM2#

main69284-30040-G1i199608-200107

SAGE,TRIM6#

69315BRETAINER, REAR DOOR LOCK SOLENOID

main69315-33030×2i199807

69330LOCK ASSY, REAR DOOR, RH

main69330-33040i199608

69340LOCK ASSY, REAR DOOR, LH

main69340-33040i199608

69393ACOVER, REAR DOOR LOCK, OUTER RH

main69393-33020i199608

69394COVER, REAR DOOR LOCK, OUTER LH

main69394-33020i199608

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-50010×2i199608

69415CCOVER, DOOR LOCK STRIKER, REAR

main69415-50010×2i199608

69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-33020i199608

69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-33020i199608

69727BLINK, REAR DOOR INSIDE LOCKING, NO.2 RH

main69727-33040i199608

69728BLINK, REAR DOOR INSIDE LOCKING, NO.2 LH

main69727-33040i199608

69737LINK, REAR DOOR INSIDE LOCKING, RH

main69737-33020i199608

69738LINK, REAR DOOR INSIDE LOCKING, LH

main69737-33020i199608

69749BCLAMP, REAR DOOR LOCK LINK

main69749-32030×2i199608-199812

main69749-33010×2i199812

69753BBELLCRANK, REAR DOOR LOCK CONTROL, RH

main69753-33020i199608

69754ABELLCRANK, REAR DOOR LOCK CONTROL, LH

main69753-33020i199608

69759MSNAP, DOOR LOCK CONTROL LINK

main69759-20100×2i199608

RED

main69759-20410×2i199608

YELLOW

6972733070PROTECTOR, REAR DOOR INSIDE LOCKING LINK, RH

main69727-33070

9010506082

main90105-06082

9014860022

main90148-60022

9014880028

main90148-80028

9015940202

main90159-40202

9015950322

main90159-50322

9016450032

main90164-50032

9018905003

main90189-05003

9338316010

main93383-16010

38 parts on this diagram · 1 diagram in section
