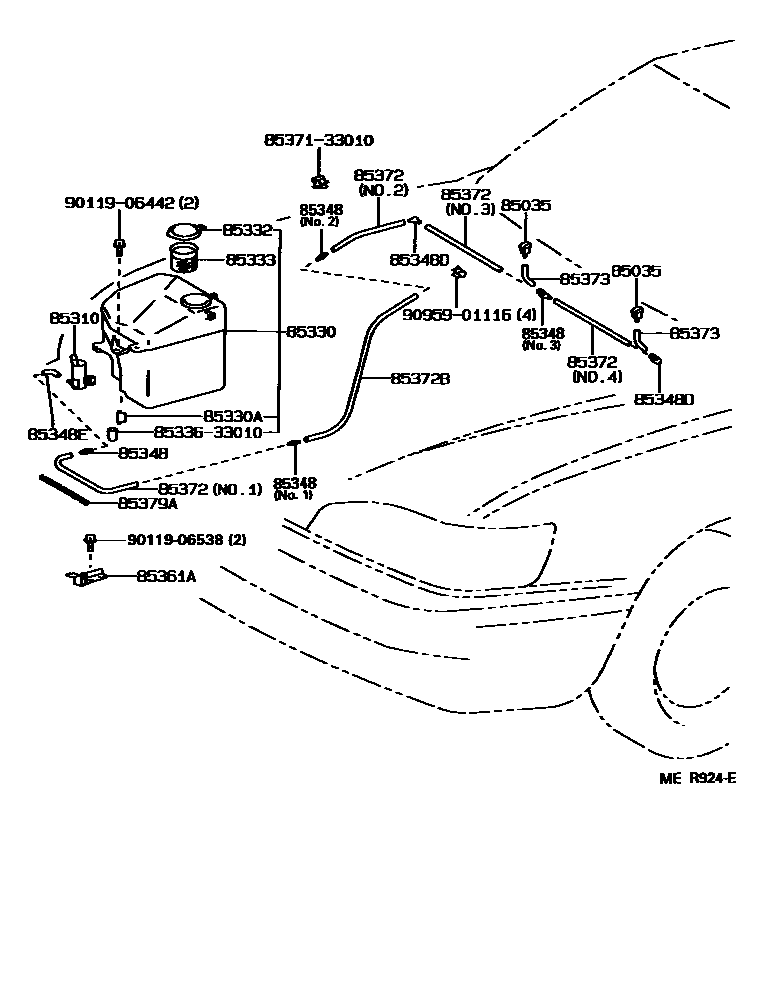

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
SUPER WHITE PEARL M.,051
COACH EDITION,WARM GRAY PEARL MICA,046
COACH EDITION,SUPER SILVER ME,176
BLACK; BLACK,202
DARK MAUVE MICA M.; DARK MAUVE MICA M.,3K1
RED MICA,3K3
LT GRAYISH ROSE M OP,3K7
RED MM,3K4,$
BEIGE MICA,4J1
BEIGE ME,4M9
DARK GREEN MICA; DARK GREEN MICA,6M1
DARK BLUE MICA,8J4
DK.GRAYISH PURPLE M.,928
BLACK
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
DELCO
85330JAR ASSY, WINDSHIELD WASHER
DELCO
W(HEADLAMP CLEANER)
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
DELCO
*ND
85333FILTER, WINDSHIELD WASHER JAR
DELCO
*ND
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
NO.2
NO.1
NO.3
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
RH
LH
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85361ABRACKET, WINDSHIELD WASHER, NO.1
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1100,NO.1
L=1450,NO.3,NO.4,NO.2
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1060
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450
85379ASPRING, WINDSHIELD WASHER HOSE
8533633010SWITCH ASSY, RESERVE TANK LEVEL WARNING
main85336-33010
8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-33010
9011906442
main90119-06442
9011906538
main90119-06538
9095901116
main90959-01116
19 parts on this diagram · 2 diagrams in section
