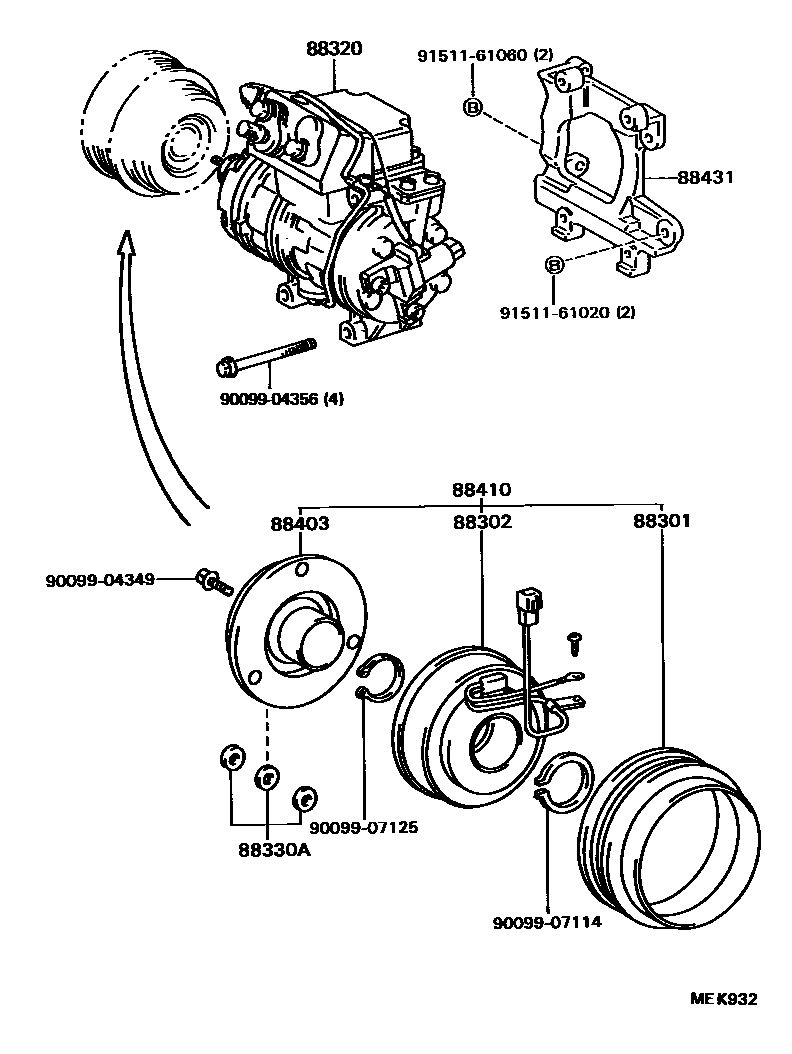

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-32030iVZV21198906-199002

main88412-32050iVZV21..USA199002-199107

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-32050iVZV21198906-199107

88320COMPRESSOR ASSY, COOLER

main88320-32091iVZV21198906-199107

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iVZV21198906-199107

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iVZV21198906-199107

88410CLUTCH ASSY, MAGNET

main88410-32050iVZV21198906-199002

main88410-32090iVZV21..USA199002-199107

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-32010iVZV21198906-198907

main88431-32011iVZV21198907-199107

9009904349

main90099-04349

9009904356

main90099-04356

9009907114

main90099-07114

9009907125

main90099-07125

9151161020

main91511-61020

9151161060

main91511-61060

13 parts on this diagram · 2 diagrams in section
