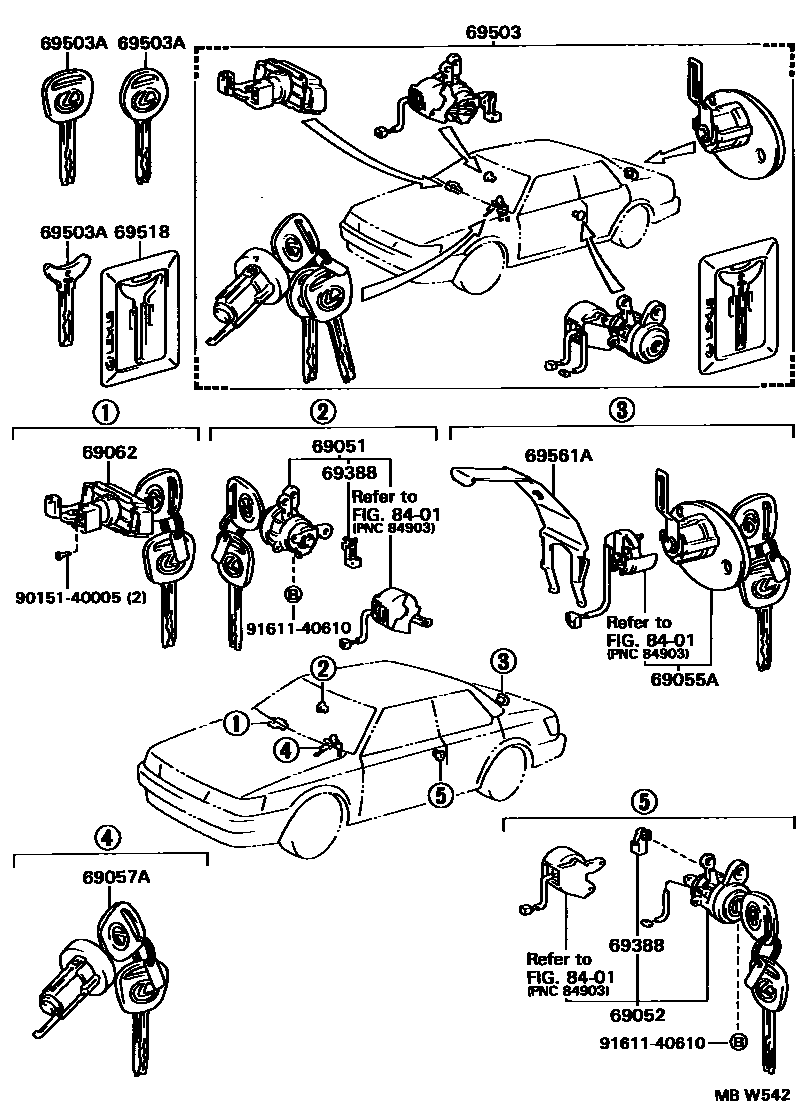

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
BLACK,202
DEEP RED M.,3H8
GRAY M.,184
GRAISH BLUE M.,8D6
BEIGE M.,4J1
DARK GREEN M.,6K4
WHITE PEARL M.,051
DARK BLUE MICA M.,8G5
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
IVORY,TRIM0#
69388SNAP, ROD(FOR DOOR LOCK)
FRONT DOOR,RH
FRONT DOOR,LH
69503CYLINDER SET, LOCK
MAROON/GRAY M.,TRIM3#&184
M. GRAY/W. PEARL M.,TRIM1#&051
D. BLUE/W. PEARL M.,TRIM8#&051
IVORY/W. PEARL M.,TRIM0#&051
MAROON/BLACK,TRIM3#&202
M. GRAY/GRAY M.,TRIM1#&184
IVORY/BLACK,TRIM0#&202
MAROON/D. RED M.,TRIM3#&3H8
M. GRAY/BLACK,TRIM1#&202
D. BLUE/G. BLUE M.,TRIM8#&8D6
IVORY/D. RED M.,TRIM0#&3H8
M. GRAY/D. GREEN M.,TRIM1#&6K4
D. BLUE/D. BLUE MICA,TRIM8#&8G5
IVORY/BEIGE M.,TRIM0#&4J1
IVORY/DARK GREEN M.,TRIM0#&6K4
MAROON/GRAY.M,TRIM3#&184
M.GRAY/W.PEARL M.,TRIM1#&051
D.BLUE/W.PEARL M.,TRIM8#&051
IVORY/W.PEARL M.,D,TRIM0#&051
MAROON/BLACK,TRIM3#&202
M.GRAY/GRAY M.,TRIM1#&184
IVORY/BLACK,TRIM0#&202
MAROON/D.RED MC,TRIM3#&3H8
M.GRAY/BLACK,TRIM1#&202
D.BLUE/G.BLUE M,TRIM8#&8D6
IVORY/D.RED MC,TRIM0#&3H8
M.GRAY/D.GREEN M.,TRIM1#&6K4
D.BLUE/D.BLUE MICA,TRIM8#&8G5
IVORY/BEIGE MC M.,TRIM0#&4J1
IVORY/D.GREEN M.,TRIM0#&6K4
69503AKEY, BLANK
MASTER KEY,W(*68)
SUB KEY,W(*68)
MASTER KEY,CARD TYPE
69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER
8401SWITCH & RELAY & COMPUTER
9015140005
main90151-40005
9161140610
main91611-40610
13 parts on this diagram · 1 diagram in section
