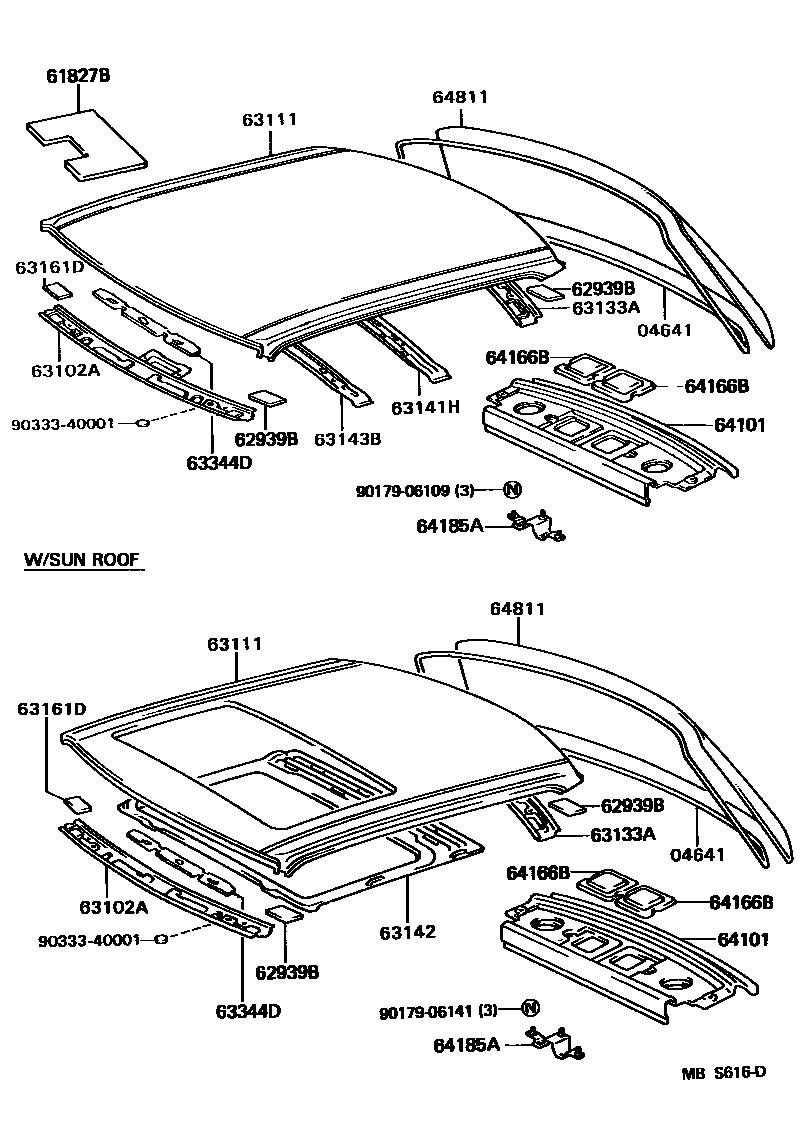

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

04641DAM KIT, BACK WINDOW GLASS

main04562-30040iVZV21198906-199107

61827BPLATE, NOISE CONTROL, NO.4

main61827-32030×2iVZV21198906-199107

62939BSILENCER, QUARTER VENT

main62939-32010×6iVZV21198906-199107

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-32080iVZV21198906-199107

main63102-32090iVZV21198906-199107

W(MOON ROOF)

63111PANEL, ROOF

main63111-32090iVZV21198906-199107

main63111-32100iVZV21198906-199107

W(MOON ROOF)

63133AFRAME, BACK WINDOW, UPPER

main63133-32030iVZV21198906-199107

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-32050iVZV21198906-199107

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-32040iVZV21198906-199107

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-32020iVZV21198906-199107

63161DPLATE, ROOF HEADER PANEL, NO.1

main63161-22010×2iVZV21198906-199107

63344DPAD, ROOF SILENCER, NO.4

main63344-32010×2iVZV21198906-199107

64101PANEL SUB-ASSY, UPPER BACK

main64101-32130iVZV21198906-199107

64166BCOVER, UPPER BACK PANEL HOLE, NO.2

main64166-32010×2iVZV21198906-199107

64185ADAMPER, UPPER BACK, NO.1

main64185-32010iVZV21198906-199107

64811GLASS, BACK WINDOW

main64811-32250iVZV21198906-199107

*EHTT,T=3.5,BLUE

main64811-32260iVZV21198906-199107

*EHTT,T=3.5,BRONZE

9017906109

main90179-06109

9017906141

main90179-06141

9033340001

main90333-40001

18 parts on this diagram · 2 diagrams in section
