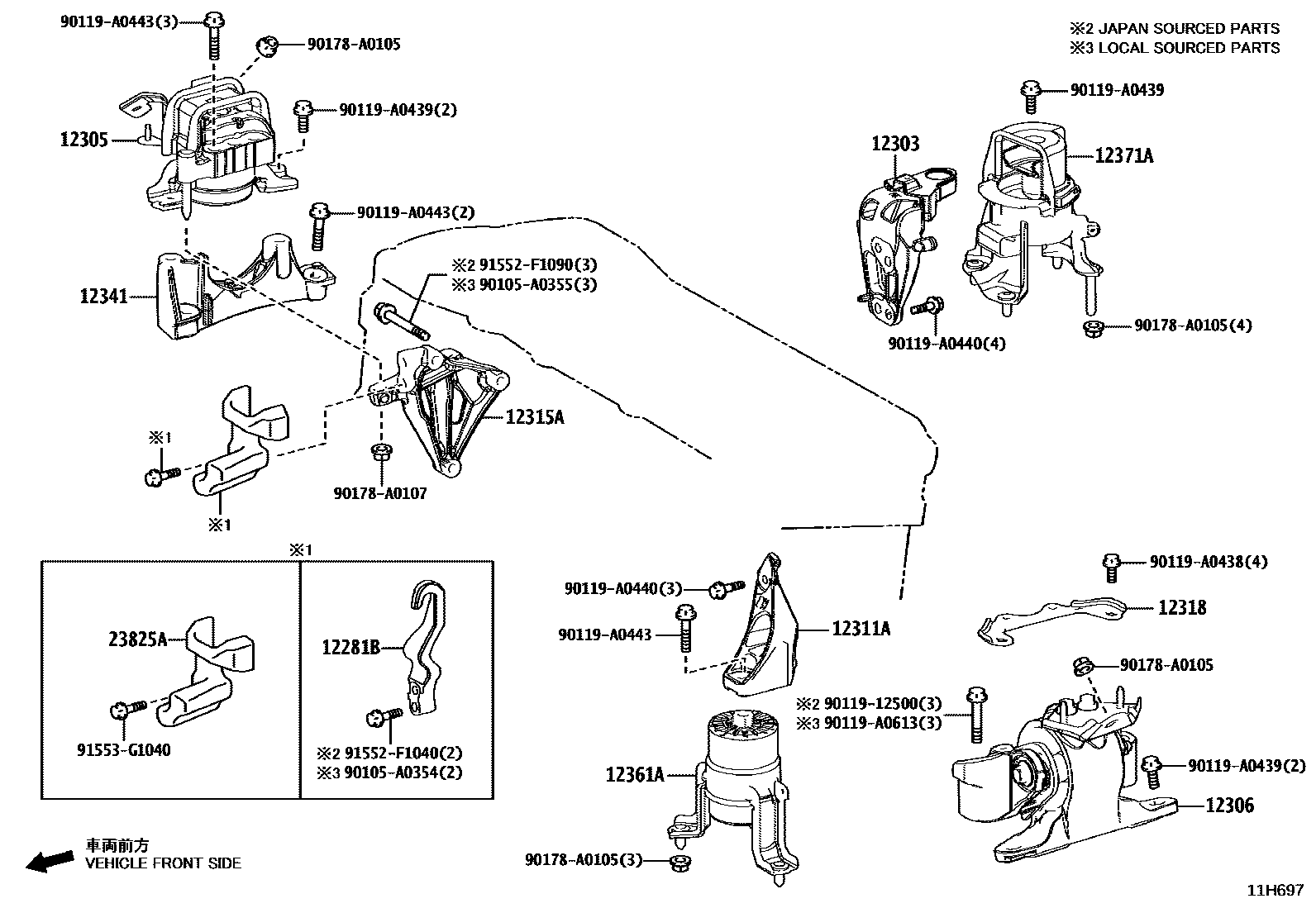

MOUNTING

12281BHANGER, ENGINE, NO.1

main12281-25030iA25..AXVH8#202404

*636,*744 OR *745

12303BRACKET SUB-ASSY, ENGINE MOUNTING, REAR

main12303-F0180iA25..AXVH8#202404

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-F0020iA25..AXVH8#202404

12306INSULATOR SUB-ASSY, ENGINE MOUNTING, LH

main12306-F0110iA25..AXVH8#202404

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-F0020iA25..AXVH8#202404

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-25031iA25..AXVH8#202404

*636,*744 OR *745

12318STAY, ENGINE MOUNTING, LH

main12318-F0160iA25..AXVH8#202404

12341SPACER, ENGINE MOUNTING

main12341-F0010iA25..AXVH8#202404

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-F0020iA25..AXVH8#202404

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-F0020iA25..AXVH8#202404

23825AGUARD, FUEL DELIVERY

main23825-F0080iA25..AXVH8#202404

90105A0354

main90105-A0354

90105A0355

main90105-A0355

9011912500

main90119-12500

90119A0438

main90119-A0438

90119A0439

main90119-A0439

90119A0440

main90119-A0440

90119A0443

main90119-A0443

90119A0613

main90119-A0613

90178A0105

main90178-A0105

90178A0107

main90178-A0107

91552F1040

main91552-F1040

91552F1090

main91552-F1090

91553G1040

main91553-G1040

24 parts on this diagram · 1 diagram in section
