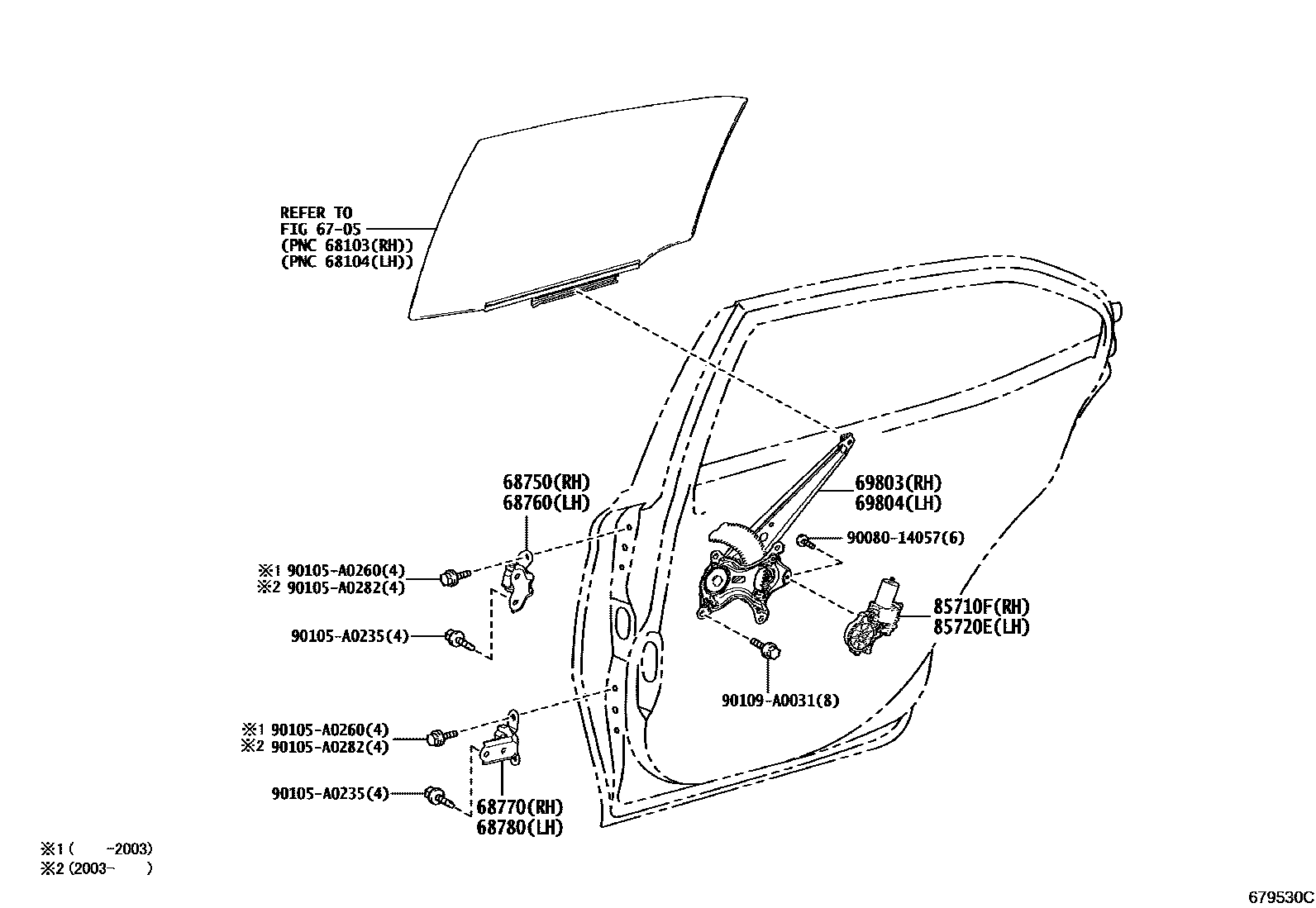

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-06010iAXVA70,AXVH7#,GSV70201706-202010

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-06010iAXVA70,AXVH7#,GSV70201706-202010

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-06050iAXVA70,AXVH7#,GSV70201706-202010

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-06050iAXVA70,AXVH7#,GSV70201706-202010

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-06190iAXVA70,AXVH7#,GSV70201706-202010

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-06190iAXVA70,AXVH7#,GSV70201706-202010

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-06350iAXVA70,AXVH7#,GSV70201706-202010

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-06330iAXVA70,AXVH7#,GSV70201706-202010

9008014057

main90080-14057

90105A0235

main90105-A0235

90105A0260

main90105-A0260

90105A0282

main90105-A0282

90109A0031

main90109-A0031

14 parts on this diagram · 1 diagram in section
