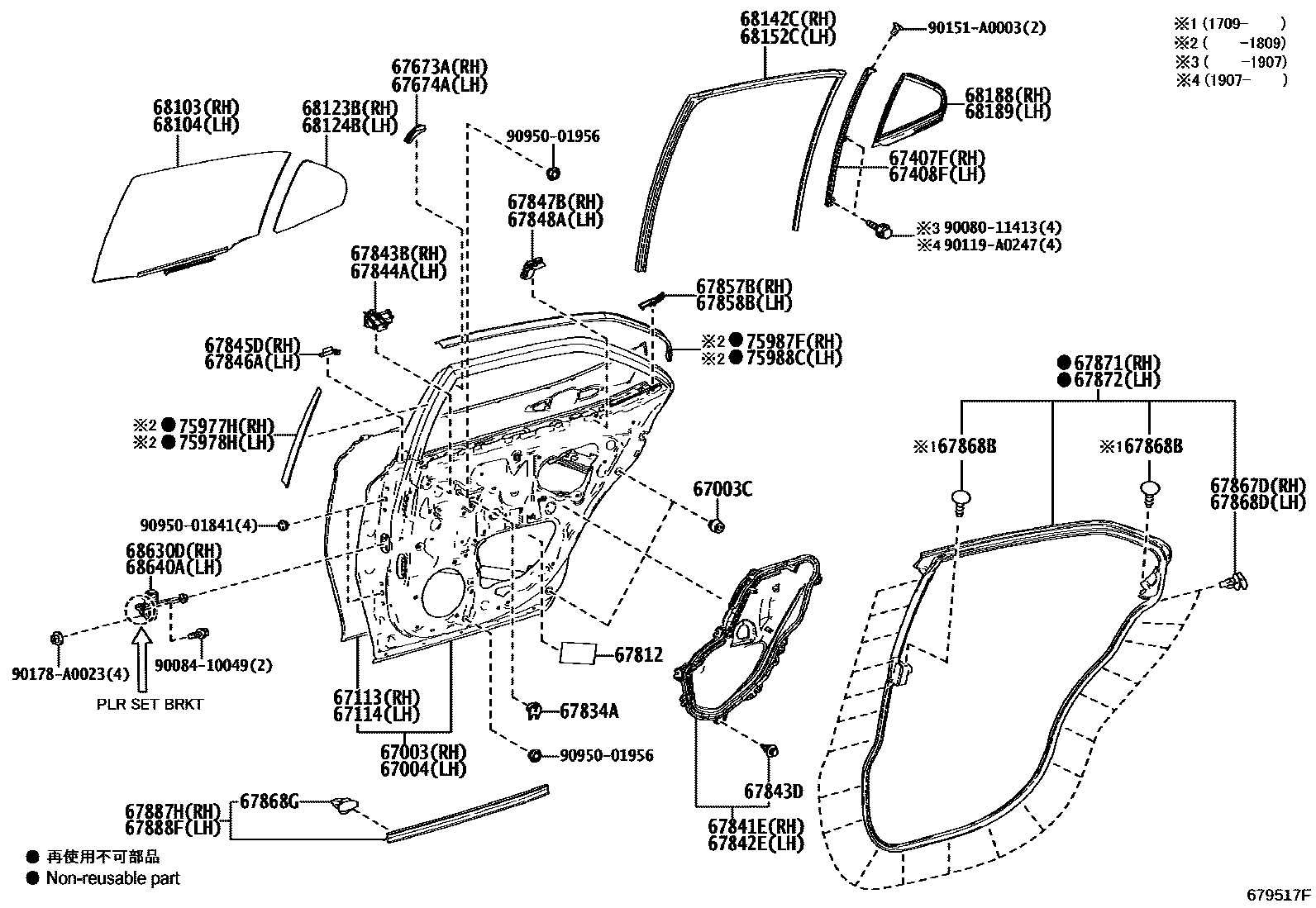

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-06310iAXVA70,AXVH7#,GSV70201706-201906

main67003-06311iAXVA70,AXVH7#,GSV70201907-202010

67003CCUSHION, REAR DOOR PANEL

main90541-09143×4iAXVA70,AXVH7#,GSV70201706-202010

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-06300iAXVA70,AXVH7#,GSV70201706-201906

main67004-06301iAXVA70,AXVH7#,GSV70201907-202010

67113PANEL, REAR DOOR, OUTER RH

main67113-06190iAXVA70,AXVH7#,GSV70201706-202010

67114PANEL, REAR DOOR, OUTER LH

main67114-06190iAXVA70,AXVH7#,GSV70201706-202010

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-06130iAXVA70,AXVH7#,GSV70201706-202010

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-06130iAXVA70,AXVH7#,GSV70201706-202010

67673AGARNISH, REAR DOOR FRAME, RH

main67673-06140iAXVA70,AXVH7#,GSV70201706-202010

67674AGARNISH, REAR DOOR FRAME, LH

main67674-06140iAXVA70,AXVH7#,GSV70201706-202010

67812PAD, REAR DOOR SILENCER

main67811-AA040×2iAXVA70,AXVH7#,GSV70201706-202010

67834ACOVER, SLIDE DOOR SERVICE HOLE, NO.2

main67833-0E010×2iAXVA70,AXVH7#,GSV70201706-201810

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-06280iAXVA70,AXVH7#,GSV70201706-202010

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-06280iAXVA7#,AXVH7#,GSV70202010

67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH

main67843-06060iAXVA70,AXVH7#,GSV70201706-201810

main67843-06061iAXVA70,AXVH7#,GSV70201811-202010

67843DCLIP, REAR DOOR SERVICE HOLE

main90467-A0005×16iAXVA70,AXVH7#,GSV70201706-202010

67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH

main67844-06040iAXVA70,AXVH7#,GSV70201706-201810

main67844-06041iAXVA70,AXVH7#,GSV70201811-202010

67845DSEAL, REAR DOOR FRONT OUTSIDE, RH

main67845-06100iAXVA70,AXVH7#,GSV70201706-202010

67846ASEAL, REAR DOOR FRONT OUTSIDE, LH

main67846-06020iAXVA70,AXVH7#,GSV70201706-202010

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-06050iAXVA70,AXVH7#,GSV70201706-202010

67848ASEAL, REAR DOOR VENT, LH NO.1

main67848-06030iAXVA70,AXVH7#,GSV70201706-202010

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-06030iAXVA70,AXVH7#,GSV70201706-202010

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-06030iAXVA70,AXVH7#,GSV70201706-202010

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×21iAXVA70,AXVH7#,GSV70201706-202010

67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)

main67868-30030×4iAXVA70,AXVH7#,GSV70201709-202010

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×21iAXVA75202003-202010

67868GRETAINER, DOOR WEATHERSTRIP

main67867-52030×10iAXVA70,AXVH7#,GSV70201706-202010

67871WEATHERSTRIP, REAR DOOR, RH

main67871-06180iAXVA70,AXVH7#,GSV70201706-202010

67872WEATHERSTRIP, REAR DOOR, LH

main67872-06180iAXVA70,AXVH7#,GSV70201706-202010

67887HWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-06100iAXVA70,AXVH7#,GSV70201706-202010

67888FWEATHERSTRIP, REAR DOOR, NO.2 LH

main67887-06100iAXVA75202003-202010

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-06300iAXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE201706-202010

main68103-06310iAXVA70..N201706-202010

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-06290iAXVA7#,AXVH7#,GSV70202010

main68104-06300iAXVA70..N201706-202010

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-06260iAXVA70,AXVH7#,GSV70201706-202010

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-06260iAXVA70,AXVH7#,GSV70201706-202010

68142CRUN, REAR DOOR GLASS, RH

main68142-06170iAXVA70,AXVH7#,GSV70201706-202010

68152CRUN, REAR DOOR GLASS, LH

main68152-06170iAXVA75202003-202010

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-06160iAXVA70,AXVH7#,GSV70201706-202010

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-06160iAXVA7#,AXVH7#,GSV70202010

68630DCHECK ASSY, REAR DOOR, RH

main68630-06150iAXVA70,AXVH7#,GSV70201706-201708

PLR SET BRKT:BLACK

main68630-06151iAXVA70,AXVH7#,GSV70201709-201804

PLR SET BRKT:BLACK

main68630-06152iAXVA70,AXVH7#,GSV70201804-202010

PLR SET BRKT:SILVER

68640ACHECK ASSY, REAR DOOR, LH

main68630-06150iAXVA70,AXVH7#,GSV70201706-201708

PLR SET BRKT:BLACK

main68630-06151iAXVA70,AXVH7#,GSV70201709-201804

PLR SET BRKT:BLACK

main68630-06152iAXVA7#,AXVH7#,GSV70202010

75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH

main75977-06110iAXVA70,AXVH7#,GSV70201706-201809

75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH

main75978-06110iAXVA70,AXVH7#,GSV70201706-201809

75987FSTRIPE, REAR DOOR, OUTSIDE, RH

main75987-06180iAXVA70,AXVH7#,GSV70201706-201809

75988CSTRIPE, REAR DOOR, OUTSIDE LH

main75988-06180iAXVA70,AXVH7#,GSV70201706-201809

9008011413

main90080-11413

9008410049

main90084-10049

90119A0247

main90119-A0247

90151A0003

main90151-A0003

90178A0023

main90178-A0023

9095001841

main90950-01841

9095001956

main90950-01956

51 parts on this diagram · 2 diagrams in section
