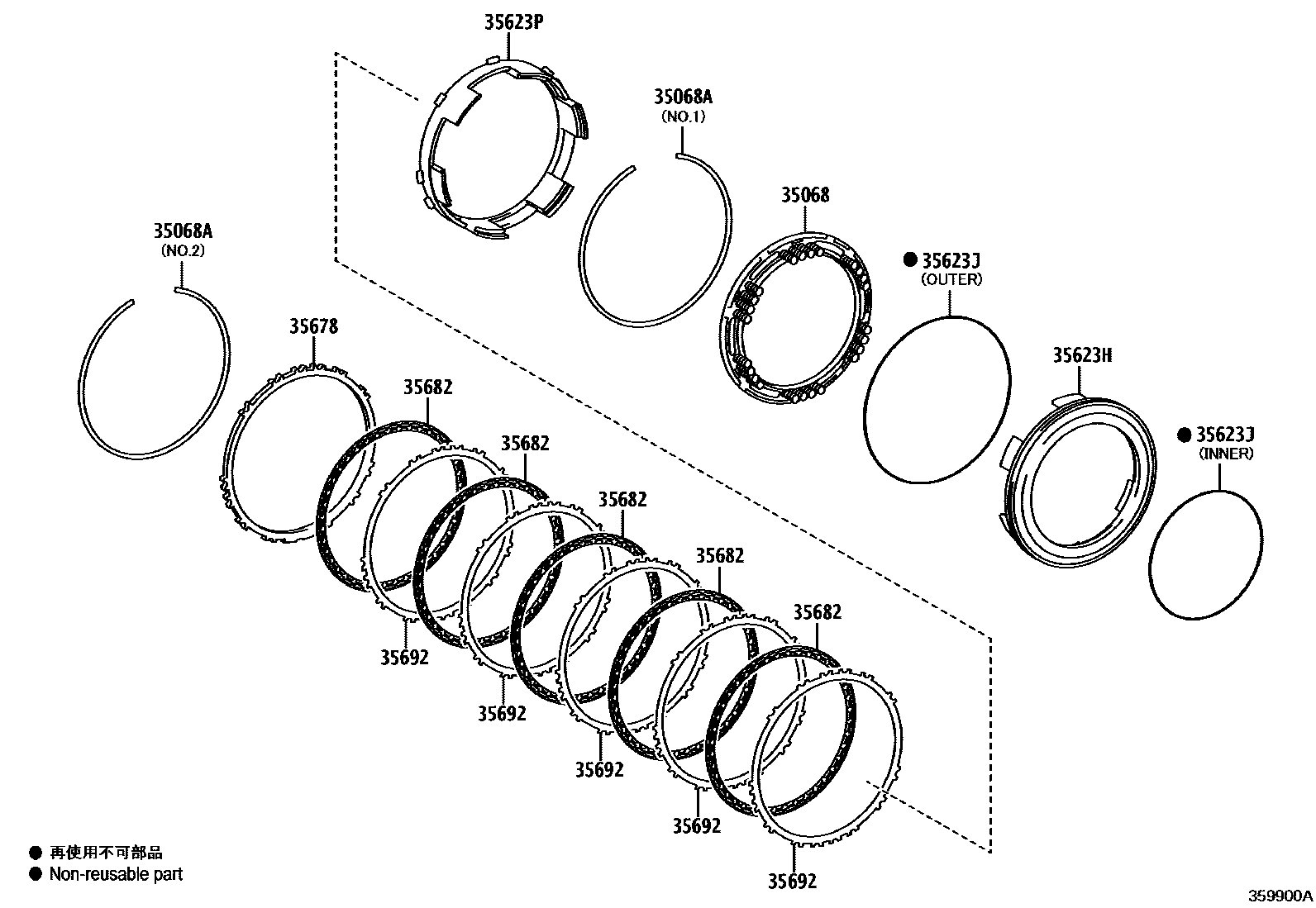

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)
35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
(L)
(L)
(J)
35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)
NO.1
(J),NO.2
(L),NO.2
(J),NO.1
(J),NO.2; NO.2
(L),NO.1
(L),NO.2
35623HPISTON, 1ST & REVERSE BRAKE
(L)
(J)
TYPE C:REFER 35-01
TYPE A:REFER 35-01
35623JRING, O (FOR 1ST & REVERSE BRAKE)
OUTER
INNER
INNER
T/P D:SEE35-01,OUTER,T/P C:SEE35-01,OUTER
OUTER; T/P A:SEE35-01,OUTER
35623PPISTON, 1ST & REVERSE BRAKE, NO.2
(L)
(J)
TYPE A:REFER 35-01
35678FLANGE, BRAKE(FOR 2ND BRAKE)
T=5.0,MARK 0,TYPE B:REFER 35-01
T=5.1,MARK 1,TYPE B:REFER 35-01; T=5.1,MARK 1,TYPE C:REFER 35-01
T=5.2,MARK 2,TYPE B:REFER 35-01; T=5.2,MARK 2,TYPE C:REFER 35-01
T=5.3,MARK 3,TYPE B:REFER 35-01; T=5.3,MARK 3,TYPE C:REFER 35-01
T=5.4,MARK 4,TYPE B:REFER 35-01; T=5.4,MARK 4,TYPE C:REFER 35-01
T=5.5,MARK 5,TYPE C:REFER 35-01
T=5.6,MARK 6,TYPE C:REFER 35-01
T=5.0,MARK 0,TYPE C:REFER 35-01
T=5.1,MARK 1,TYPE C:REFER 35-01
T=5.2,MARK 2,TYPE C:REFER 35-01
T=5.3,MARK 3,TYPE C:REFER 35-01
T=5.4,MARK 4,TYPE C:REFER 35-01
T=5.5,MARK 5,TYPE C:REFER 35-01
T=5.6,MARK 6,TYPE C:REFER 35-01
T=5.0,MARK A,TYPE D:REFER 35-01
T=5.1,MARK B,TYPE D:REFER 35-01
T=5.2,MARK C,TYPE D:REFER 35-01
T=5.3,MARK D,TYPE D:REFER 35-01
T=5.4,MARK E,TYPE D:REFER 35-01
T=5.5,MARK F,TYPE D:REFER 35-01
T=5.6,MARK G,TYPE D:REFER 35-01
T=5.0,MARK 0,TYPE A:REFER 35-01
T=5.1,MARK 1,TYPE A:REFER 35-01
T=5.2,MARK 2,TYPE A:REFER 35-01
T=5.3,MARK 3,TYPE A:REFER 35-01
T=5.4,MARK 4,TYPE A:REFER 35-01
T=5.5,MARK 5,TYPE A:REFER 35-01
T=5.6,MARK 6,TYPE A:REFER 35-01
T=5.0,MARK 0,TYPE A:REFER 35-01
T=5.1,MARK 1,TYPE A:REFER 35-01
T=5.2,MARK 2,TYPE A:REFER 35-01
T=5.3,MARK 3
T=5.4,MARK 4,TYPE A:REFER 35-01
T=5.5,MARK 5
T=5.6,MARK 6,TYPE A:REFER 35-01
T=5.0,MARK A
T=5.1,MARK B
T=5.2,MARK C
T=5.3,MARK D
T=5.4,MARK E
T=5.5,MARK F
T=5.6,MARK G
35682DISC, BRAKE(FOR 2ND BRAKE)
(L)
(L)
(J)
35692PLATE, BRAKE(FOR 2ND BRAKE)
(L)
(L)
(J)
8 parts on this diagram · 1 diagram in section
