WIRING & CLAMP

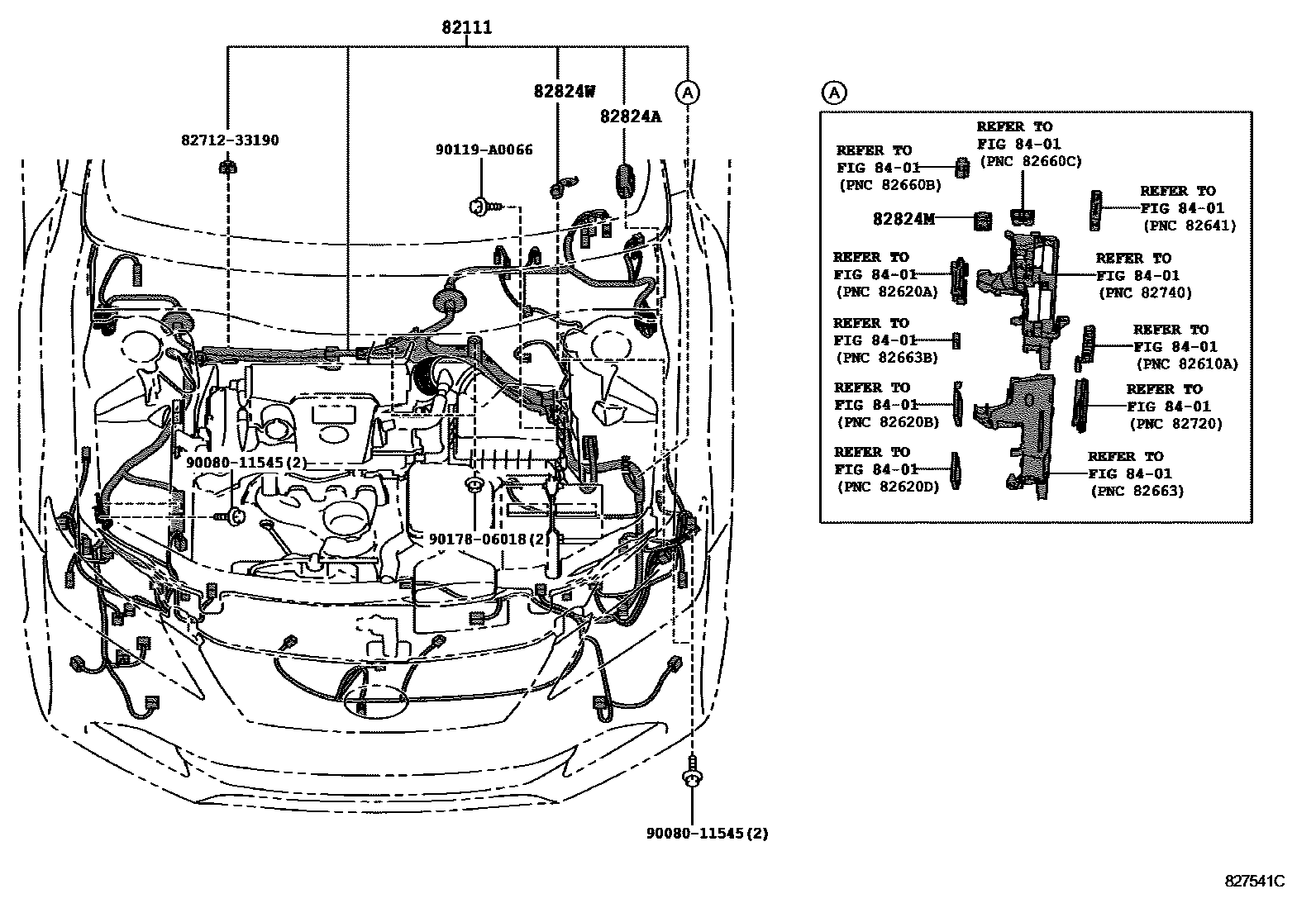

Parts diagram
82111WIRE, ENGINE ROOM MAIN
main82111-06V80i201109-201212
main82111-06V83i201212-201312
main82111-06V90i201109-201301
CANADA SPEC; MEXICO SPEC
main82111-06V91i201301-201312
CANADA SPEC; MEXICO SPEC
main82111-06V92supersedes 82111-06V84i201312-201409
CANADA SPEC; MEXICO SPEC
main82111-06W50i201109-201301
main82111-06W51i201301-201312
main82111-06W52i201312-201409
main82111-06W70i201110-201301
main82111-06W71i201301-201312
main82111-06W72i201312-201409
main82115-06L51i201409
main82115-06N12i201603-201606
main82115-06N13i201606
main82115-06N41i201409
main82115-06N51i201409-201606
main82115-06N52i201606
main82111-06V11i201212-201312
KOREA SPEC&HEADLAMP-DISCHARGE
main82111-06V12i201312-201409
KOREA SPEC&HEADLAMP-DISCHARGE
main82111-06W20supersedes 82111-06W00i201109-201301
WIRELESS DOOR LOCK-W(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON; WIRELESS DOOR LOCK-W(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON & REMOTE ENGINE START
main82111-06W21supersedes 82111-06W01i201301-201312
WIRELESS DOOR LOCK-W(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON; WIRELESS DOOR LOCK-W(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON & REMOTE ENGINE START
main82111-06W22supersedes 82111-06W02i201312-201409
WIRELESS DOOR LOCK-W(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON; WIRELESS DOOR LOCK-W(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON & REMOTE ENGINE START
main82111-06W30i201109-201301
WIRELESS DOOR LOCK-W(SMART ENTRY)&HEADLAMP-DISCHARGE&STARTING SYSTEM-PUSH BUTTON; WIRELESS DOOR LOCK-W(SMART ENTRY)&HEADLAMP-DISCHARGE&STARTING SYSTEM-PUSH BUTTON &REMOTE ENGINE START
main82111-06W31i201301-201312
WIRELESS DOOR LOCK-W(SMART ENTRY)&HEADLAMP-DISCHARGE&STARTING SYSTEM-PUSH BUTTON; WIRELESS DOOR LOCK-W(SMART ENTRY)&HEADLAMP-DISCHARGE&STARTING SYSTEM-PUSH BUTTON &REMOTE ENGINE START
main82111-06W32i201312-201409
WIRELESS DOOR LOCK-W(SMART ENTRY)&HEADLAMP-DISCHARGE&STARTING SYSTEM-PUSH BUTTON; WIRELESS DOOR LOCK-W(SMART ENTRY)&HEADLAMP-DISCHARGE&STARTING SYSTEM-PUSH BUTTON &REMOTE ENGINE START
main82111-06W40i201109-201212
KOREA SPEC&ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER)&WIRELESS DOOR LOCK-W(SMARTENTRY)&HEADLAMP-DISCHARGE&STARTING SYSTEM-PUSH BUTTON & REMOTE ENGINE START
main82111-06W41i201301-201312
KOREA SPEC&ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER)&WIRELESS DOOR LOCK-W(SMARTENTRY)&HEADLAMP-DISCHARGE&STARTING SYSTEM-PUSH BUTTON
main82111-06W42i201312-201409
KOREA SPEC&ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER)&WIRELESS DOOR LOCK-W(SMARTENTRY)&HEADLAMP-DISCHARGE&STARTING SYSTEM-PUSH BUTTON
main82111-06W60i201109-201301
HEADLAMP-DISCHARGE
main82111-06W61i201301-201312
HEADLAMP-DISCHARGE
main82111-06W62i201312-201409
HEADLAMP-DISCHARGE
main82111-06W80i201110-201301
HEADLAMP-DISCHARGE
main82111-06W81i201301-201312
HEADLAMP-DISCHARGE
main82111-06W82i201312-201409
HEADLAMP-DISCHARGE
main82111-06W90i201110-201301
KOREA SPEC&HEADLAMP-DISCHARGE
main82111-06W91i201301-201312
KOREA SPEC&HEADLAMP-DISCHARGE
main82111-06W92i201312-201409
KOREA SPEC&ANTI-THEFT SYSTEM-WITH(ALARM & IMMOBILIZER)&HEADLAMP-DISCHARGE
main82115-06L61i201508-201606
SPECIAL EDITION&ANTI-THEFT SYSTEM-W(ALARM & IMMOBILIZER)
main82115-06L91i201508-201606
SPECIAL EDITION&ANTI-THEFT SYSTEM-W(ALARM & IMMOBILIZER)&WIRELESS DOOR LOCK-W(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON; SPECIAL EDITION&ANTI-THEFT SYSTEM-W(ALARM & IMMOBILIZER)&WIRELESS DOOR LOCK-W(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON & REMOTE ENGINE START; SPECIAL EDITION&WIRELESS DOOR LOCK-W(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON; SPECIAL EDITION&WIRELESS DOOR LOCK-W(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON & REMOTE ENGINE START
main82115-06M01supersedes 82115-06L71i201409-201606
WIRELESS DOOR LOCK-W(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON; WIRELESS DOOR LOCK-W(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON & REMOTE ENGINE START
main82115-06M02supersedes 82115-06L72i201606
WIRELESS DOOR LOCK-W(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON; WIRELESS DOOR LOCK-W(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON & REMOTE ENGINE START
main82115-06M11i201606
ANTI-THEFT SYSTEM-W(ALARM & IMMOBILIZER)&PRE-COLLISION SYSTEM-WITH&WIRELESS DOOR LOCK-W(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON & REMOTE ENGINE START&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR); ANTI-THEFT SYSTEM-W(ALARM & IMMOBILIZER)&PRE-COLLISION SYSTEM-WITH&WIRELESS DOOR LOCK-W(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON&LANE CHANGE ASSIST-WITH(BLIND SPOTMONITOR); ANTI-THEFT SYSTEM-WITH(*GBS & ALARM & IMMOBILIZER)&PRE-COLLISION SYSTEM-WITH&WIRELESS DOOR LOCK-W(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON & REMOTE ENGINE START&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR); ANTI-THEFT SYSTEM-WITH(*GBS & ALARM & IMMOBILIZER)&PRE-COLLISION SYSTEM-WITH&WIRELESS DOOR LOCK-W(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR); PRE-COLLISION SYSTEM-WITH&WIRELESS DOOR LOCK-W(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON & REMOTE ENGINE START&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR); PRE-COLLISION SYSTEM-WITH&WIRELESS DOOR LOCK-W(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR)
main82115-06M41i201409
KOREA SPEC&ANTI-THEFT SYSTEM-W(ALARM & IMMOBILIZER)&WIRELESS DOOR LOCK-W(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON
main82115-06N21supersedes 82115-06N11i201409-201602
PRE-COLLISION SYSTEM-WITH
main82115-06N22supersedes 82115-06N11i201603
PRE-COLLISION SYSTEM-WITH
main82115-06N31i201409-201508
KOREA SPEC
main82115-06N61i201409
PRE-COLLISION SYSTEM-WITH
main82115-06N71i201409
KOREA SPEC&ANTI-THEFT SYSTEM-W(ALARM & IMMOBILIZER)
main82116-06X90i201508
KOREA SPEC
82824CONNECTOR, WIRING HARNESS
main82824-33360i201409
82824ACONNECTOR, WIRING HARNESS
main82824-30180i201204-201409
82824MCONNECTOR, WIRING HARNESS
main82824-52290i201409
main82824-73030i201204-201409
82824WCONNECTOR, WIRING HARNESS
main82824-48020i201204-201409
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
8271233190CLAMP, WIRING HARNESS
main82712-33190
9008011545
main90080-11545
90119A0066
main90119-A0066
9017806018
main90178-06018

10 parts on this diagram · 17 diagrams in section
