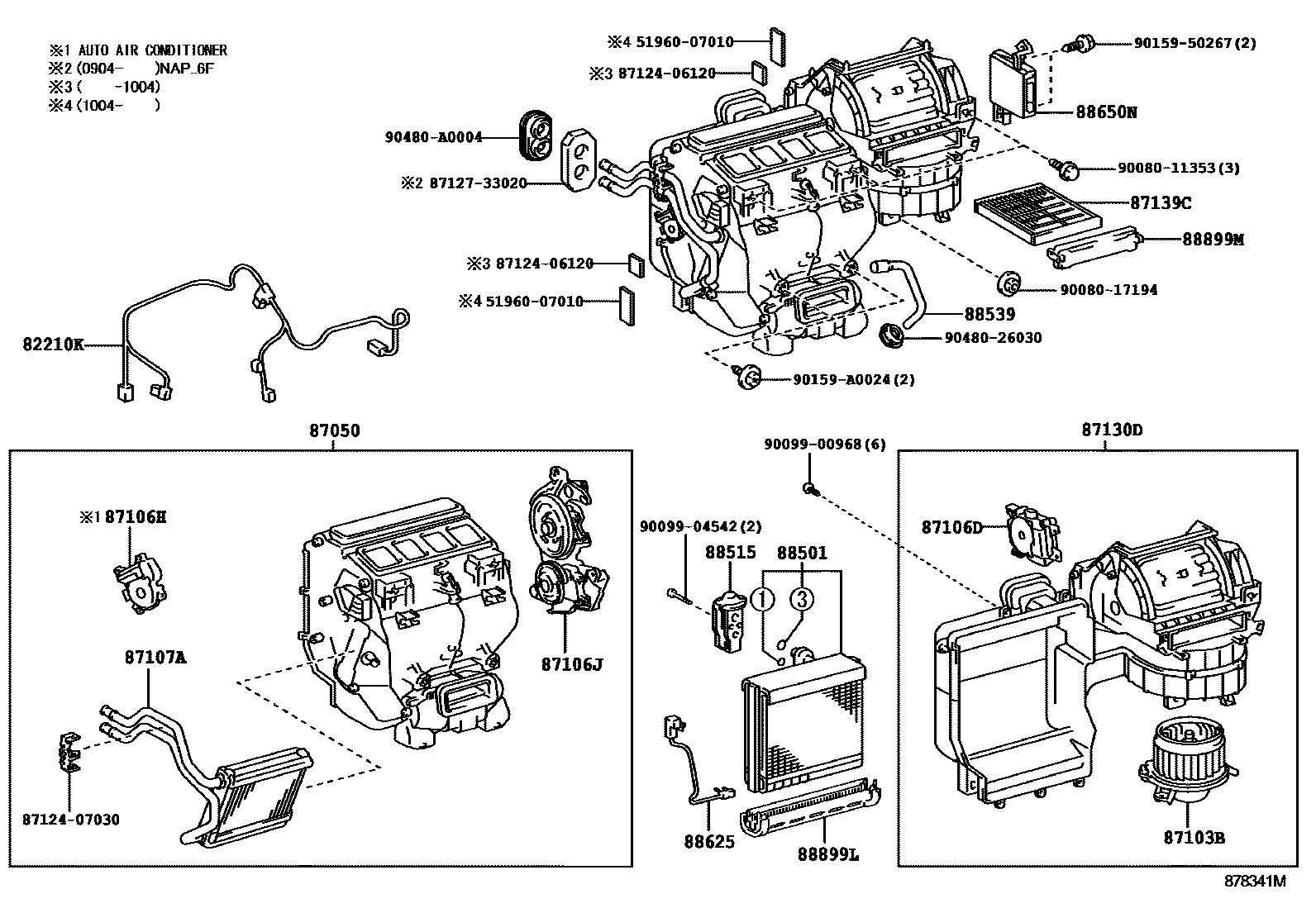

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1O-RING

82210KHARNESS ASSY, AIR CONDITIONER

main82212-06110iACV40,GSV40..NAP..(LE,SE)200602-200802

main82212-06111iACV40,GSV40..NAP..(LE,SE)200802-200903

main82212-06121iACV40,GSV40..NAP..XLE200802-200903

main82212-07010iACV40,GSV40..NAP..XLE200602-200802

87050RADIATOR ASSY, AIR CONDITIONER

main87050-06410iASV40,GSV40..NAP..(LE,SE)200903-201109

main87050-06510iACV40,GSV40..NAP..XLE200602-200705

main87050-06511iACV40,GSV40..NAP..XLE200705-200903

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-07040iACV40,GSV40..NAP200602-200801

main87103-0E040iACV40,GSV40..NAP200802-200903

87106DSERVO SUB-ASSY, DAMPER, NO.1

main87106-07140iACV40,GSV40..NAP200602-200610

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-07120iACV40,GSV40..NAP..XLE200602-200704

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-06250iACV40,GSV40..NAP..XLE200705-200903

main87106-07110iACV40,GSV40..NAP..(LE,SE)200602-200903

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-07030iACV40,GSV40..NAP..XLE200705-200903

87130DBLOWER ASSY

main87130-07070iACV40,GSV40..NAP200602-200610

main87130-07071iACV40,GSV40..NAP200611-200903

87139CFILTER, CLEAN AIR

main87139-07010iACV40,GSV40..NAP200602-200903

main87139-50060iASV40,GSV40..NAP200903-201109

DEODORANT FILTER

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-06110iACV40,GSV40..NAP200602-200805

main88501-06111iACV40,GSV40..NAP..(LE,SE)200810-200901

main88501-06112iASV40,GSV40..NAP200903-201010

main88501-06113iASV40,GSV40..NAP..XLE201107-201109

main88501-28400iACV40,GSV40..NAP200805-200809

main88501-48311iASV40,GSV40..NAP..XLE201010-201107

88515VALVE, COOLER EXPANSION

main88515-07030iACV40,GSV40..NAP200602-200903

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-06120iACV40,GSV40..NAP200602-200610

main88539-06121iACV40,GSV40..NAP200611-200903

88625THERMISTOR, COOLER, NO.1

main88620-06020iASV40,GSV40..NAP200903-201109

main88625-41030iACV40,GSV40..NAP200602-200901

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-06110iACV40..NAP..(LE,SE)200602-200704

main88650-06111iACV40..NAP..(LE,SE)200705-200903

main88650-06120iACV40..NAP..XLE200602-200704

main88650-06121iACV40..NAP..XLE200705-200903

main88650-06130iGSV40..NAP..(LE,SE)200602-200704

main88650-06131iGSV40..NAP..(LE,SE)200705-200903

main88650-06140iGSV40..NAP..XLE200602-200704

main88650-06141iGSV40..NAP..XLE200705-200903

main88650-06310iASV40..NAP..(LE,SE)200903-201109

main88650-06320iASV40..NAP..XLE200903-201011

main88650-06321iASV40..NAP..XLE201012-201109

main88650-06330iGSV40..NAP..(LE,SE)200903-201109

main88650-06340iGSV40..NAP..XLE200903-201011

main88650-06341iGSV40..NAP..XLE201012-201109

88899LPARTS, COOLING UNIT

main88899-06100iACV40,GSV40..NAP..XLE200602-200903

88899MPLATE, COVER(FOR AIR FILTER)

main88899-07010iACV40,GSV40..NAP200602-200903

5196007010HOOK ASSY, FRONT

main51960-07010

8712406120CLAMP, HEATER

main87124-06120

8712407030CLAMP, HEATER

main87124-07030

8712733020PACKING, HEATER AIR DAMPER

main87127-33020

9008011353

main90080-11353

9008017194

main90080-17194

9009900968

main90099-00968

9009904542

main90099-04542

9015950267

main90159-50267

90159A0024

main90159-A0024

9048026030

main90480-26030

90480A0004

main90480-A0004

28 parts on this diagram · 2 diagrams in section
