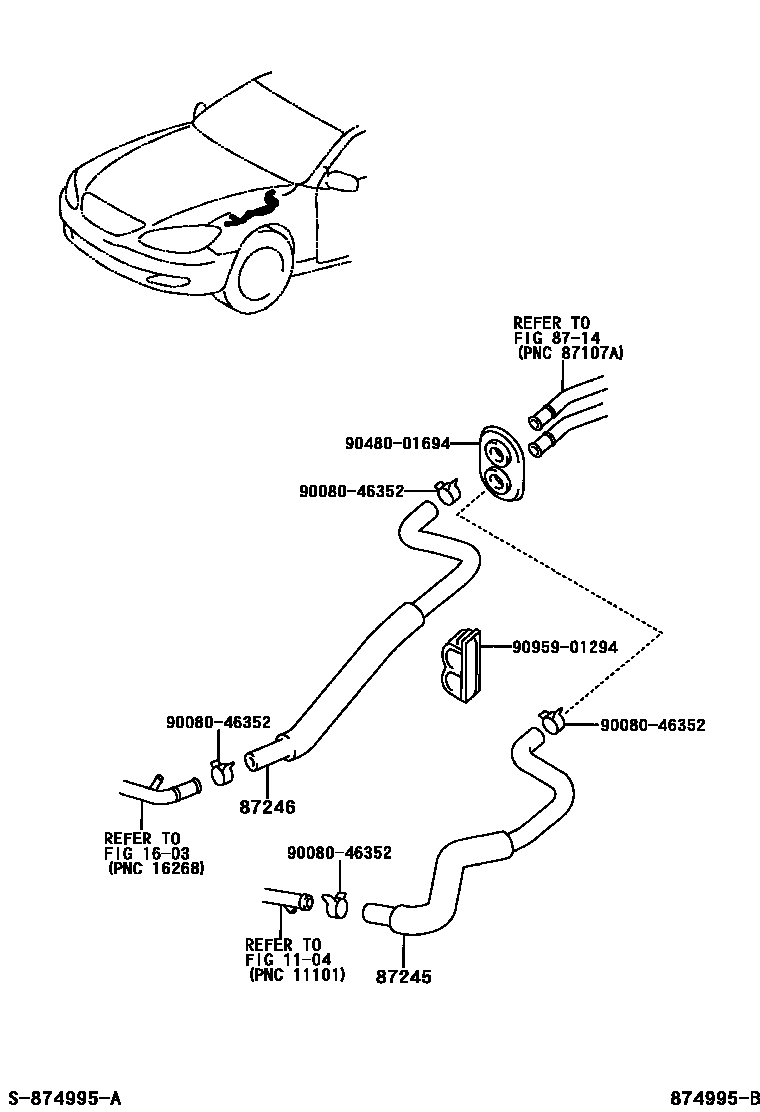

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87245-06140iMCV30..NAP200107-200301

main87245-06160iACV30..NAP200107-200406

main87245-06380iMCV31..NAP;MCV30..NAP..(LE,XLE)200301-200406

87246HOSE, HEATER WATER, OUTLET

main87245-06150iMCV30..NAP200107-200301

main87245-06170iACV30..NAP200107-200406

main87245-06390iMCV30..NAP..SE200301-200406

9008046352

main90080-46352

9048001694

main90480-01694

9095901294

main90959-01294

8 parts on this diagram · 2 diagrams in section
