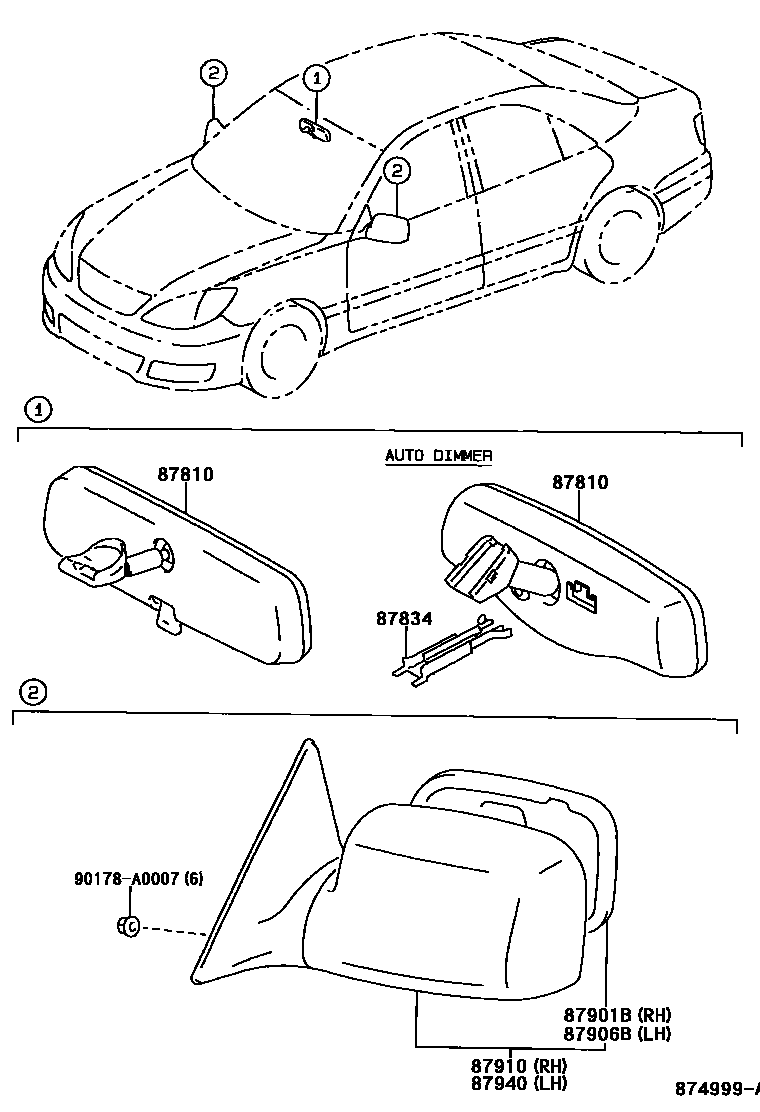

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-AA011iMCV31..NAP;MCV30..NAP..LE..5FC200107-200602

main87810-AA020iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200507

W(AUTO DIMMER)

main87810-AC090iACV30,MCV3#..NAP200503-200602

W(AUTO DIMMER)

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-AC010iMCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-AA080iACV30,MCV3#..NAP..(LE,SE)200107-200406

main87931-AA100iACV30,MCV3#..NAP200107-200406

HEATER MIRROR

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-AA080iACV30,MCV3#..NAP..(LE,SE)200107-200406

main87961-AA100iACV30,MCV3#..NAP200107-200406

HEATER MIRROR

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-AA080-A0iMCV30..NAP..SE..5FC200107-200406

SUPER WHITE 2,040

main87910-AA080-B0iMCV30..NAP..SE..5FC200107-200406

SILVER ME.,1C8

main87910-AA080-B1iACV30,MCV3#..NAP..(LE,SE)200107-200406

GRAY M.M.,1E3

main87910-AA080-C0iACV30,MCV3#..NAP..(LE,SE)200107-200406

BLACK,202

main87910-AA080-D0iMCV30..NAP..SE..5FC200107-200406

DK. RED MC.,3P5

main87910-AA080-D1iMCV30..NAP..SE..5FC200107-200406

DK. RED M.M.,3Q3

main87910-AA080-E0iACV30,MCV3#..NAP..(LE,SE)200107-200406

BEIGE M. M.,4Q2

main87910-AA080-G0iACV30,MCV3#..NAP..(LE,SE)200107-200406

DK. GREEN MC.,6S7

main87910-AA080-G1iACV30,MCV3#..NAP..(LE,SE)200406

GRAYISH GREEN M.M.OP.,6R6

main87910-AA080-J0iMCV30..NAP..LE..5FC;ACV30,MCV31..NAP..(LE,SE)200107-200406

DK.BLUE MC.,8Q0

main87910-AA080-J1iMCV30..NAP..LE..5FC;ACV30,MCV31..NAP..(LE,SE)200107-200406

BLUE M.M.,8Q2

main87910-AA080-J2iACV30,MCV3#..NAP..(LE,SE)200406

DK.BLUE M.M.,8P4

main87910-AA080-J3iACV30,MCV3#..NAP..(LE,SE)200406

LT.BLUE ME.,8S4

main87910-AA090iACV30..NAP..LE200107-200402

BLACK

main87910-AA100-A0iACV30,MCV3#..NAP200107-200406

HEATER MIRROR,SUPER WHITE 2,040

main87910-AA100-B0iACV30,MCV3#..NAP200107-200406

HEATER MIRROR,SILVER ME.,1C8

main87910-AA100-B1iACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

HEATER MIRROR,GRAY M.M.,1E3

main87910-AA100-C0iACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

HEATER MIRROR,BLACK,202

main87910-AA100-D0iMCV30..NAP200107-200406

HEATER MIRROR,DK. RED MC.,3P5

main87910-AA100-D1iACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

HEATER MIRROR,DK. RED M.M.,3Q3

main87910-AA100-E0iMCV30..NAP200107-200406

HEATER MIRROR,BEIGE M. M.,4Q2

main87910-AA100-G0iACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

HEATER MIRROR,DK. GREEN MC.,6S7

main87910-AA100-G1iACV30,MCV3#..NAP200406

HEATER MIRROR,GRAYISH GREEN M.M.OP.,6R6

main87910-AA100-J0iMCV30..NAP..SE..5FC200107-200406

HEATER MIRROR,DK.BLUE MC.,8Q0

main87910-AA100-J1iMCV30..NAP..SE..5FC200107-200406

HEATER MIRROR,BLUE M.M.,8Q2

main87910-AA100-J2iACV30,MCV3#..NAP200406

HEATER MIRROR,DK.BLUE M.M.,8P4

main87910-AA100-J3iACV30,MCV3#..NAP200406

HEATER MIRROR,LT.BLUE ME.,8S4

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-AA080-A0iMCV30..NAP..(LE,SE)200107-200406

SUPER WHITE 2,040

main87940-AA080-B0iMCV30..NAP..LE..5FC;ACV30,MCV31..NAP..(LE,SE)200107-200406

SILVER ME.,1C8

main87940-AA080-B1iMCV30..NAP..SE..5FC200107-200406

GRAY M.M.,1E3

main87940-AA080-C0iMCV30..NAP..(LE,SE)200107-200406

BLACK,202

main87940-AA080-D0iMCV30..NAP..(LE,SE)200107-200406

DK. RED MC.,3P5

main87940-AA080-D1iACV30,MCV3#..NAP..(LE,SE)200107-200406

DK. RED M.M.,3Q3

main87940-AA080-E0iACV30,MCV3#..NAP..(LE,SE)200107-200406

BEIGE M. M.,4Q2

main87940-AA080-G0iMCV30..NAP..SE..5FC200107-200406

DK. GREEN MC.,6S7

main87940-AA080-G1iACV30,MCV3#..NAP..(LE,SE)200406

GRAYISH GREEN M.M.OP.,6R6

main87940-AA080-J0iMCV30..NAP..LE..5FC;ACV30,MCV31..NAP..(LE,SE)200107-200406

DK.BLUE MC.,8Q0

main87940-AA080-J1iMCV30..NAP..SE..5FC200107-200406

BLUE M.M.,8Q2

main87940-AA080-J2iACV30,MCV3#..NAP..(LE,SE)200406

DK.BLUE M.M.,8P4

main87940-AA080-J3iACV30,MCV3#..NAP..(LE,SE)200406

LT.BLUE ME.,8S4

main87940-AA090iACV30..NAP..LE200107-200402

BLACK

main87940-AA100-A0iACV30,MCV3#..NAP200107-200406

HEATER MIRROR,SUPER WHITE 2,040

main87940-AA100-B0iMCV30..NAP..SE..5FC200107-200406

HEATER MIRROR,SILVER ME.,1C8

main87940-AA100-B1iACV30,MCV3#..NAP200107-200406

HEATER MIRROR,GRAY M.M.,1E3

main87940-AA100-C0iACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

HEATER MIRROR,BLACK,202

main87940-AA100-D0iACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC200107-200406

HEATER MIRROR,DK. RED MC.,3P5

main87940-AA100-D1iMCV30..NAP200107-200406

HEATER MIRROR,DK. RED M.M.,3Q3

main87940-AA100-E0iMCV30..NAP..SE..5FC200107-200406

HEATER MIRROR,BEIGE M. M.,4Q2

main87940-AA100-G0iMCV30..NAP200107-200406

HEATER MIRROR,DK. GREEN MC.,6S7

main87940-AA100-G1iACV30,MCV3#..NAP200406

HEATER MIRROR,GRAYISH GREEN M.M.OP.,6R6

main87940-AA100-J0iMCV30..NAP..SE..5FC200107-200406

HEATER MIRROR,DK.BLUE MC.,8Q0

main87940-AA100-J1iMCV30..NAP..SE..5FC200107-200406

HEATER MIRROR,BLUE M.M.,8Q2

main87940-AA100-J2iACV30,MCV3#..NAP200406

HEATER MIRROR,DK.BLUE M.M.,8P4

main87940-AA100-J3iACV30,MCV3#..NAP200406

HEATER MIRROR,LT.BLUE ME.,8S4

90178A0007

main90178-A0007

7 parts on this diagram · 1 diagram in section
