REAR AXLE SHAFT & HUB

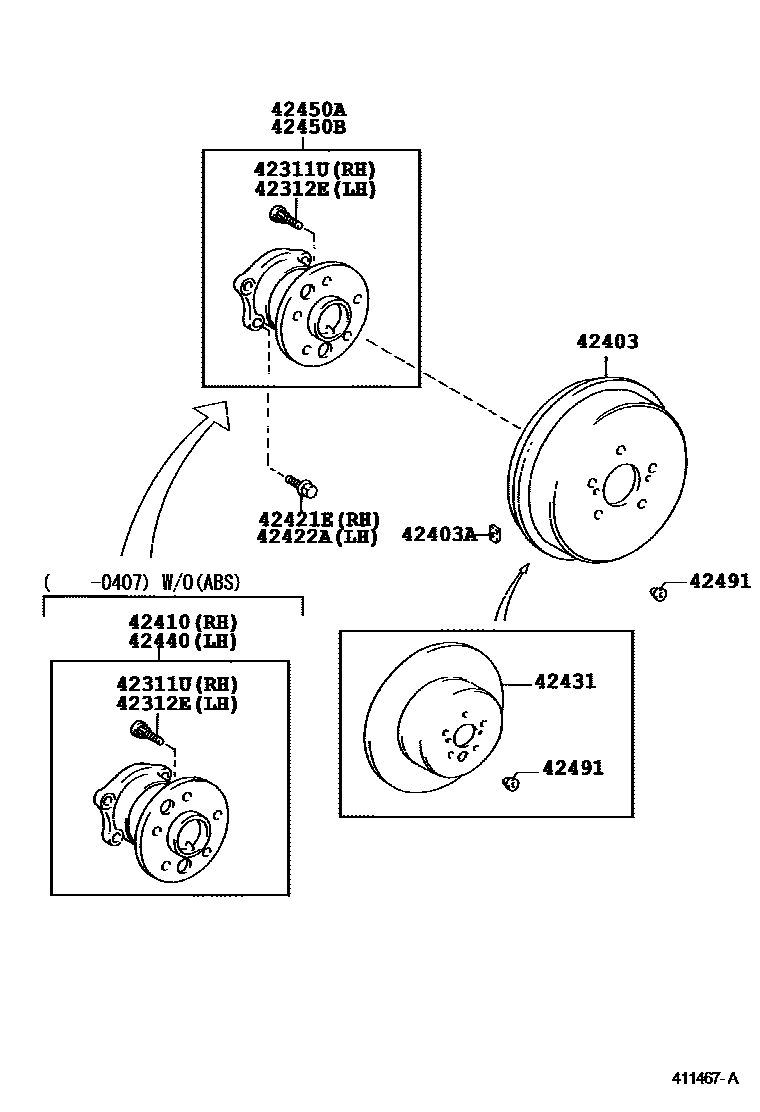

Parts diagram
42311UBOLT, HUB(FOR REAR AXLE RH)
main90942-02049×5i200406-200602
42312EBOLT, HUB(FOR REAR AXLE LH)
main90942-02049×5i200107-200406
42403DRUM SUB-ASSY, REAR BRAKE
main42431-06040×2i200107-200406
main42431-06100×2i200406
main42431-33111×2i200309-200406
CANADA SPEC
42403APIECE, BALANCE (FOR REAR BRAKE DRUM)
main90080-93004i200107-200406
10G
main90080-93005i200107-200406
20G
main90080-93006i200406
30G
42410HUB & BEARING ASSY, REAR AXLE, RH
main42410-06030i200107-200406
42421EBOLT (FOR REAR AXLE BEARING CASE RH)
main90105-10510×4i200406
42422ABOLT (FOR REAR AXLE BEARING CASE LH)
main90105-10510×4i200406
42431DISC, REAR
main42431-06050×2i200406
42440HUB & BEARING ASSY, REAR AXLE, LH
main42410-06030i200107-200406
KOYO
42450AHUB & BEARING ASSY, REAR AXLE, RH
main42450-06021i200107-200406
42450BHUB & BEARING ASSY, REAR AXLE, LH
main42460-06021i200107-200406
KOYO
main42460-06030i200406-200602
NSK
42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
main47491-14010×2i200107-200406
main47491-22020×2i200406
W(VSC)

12 parts on this diagram · 1 diagram in section
